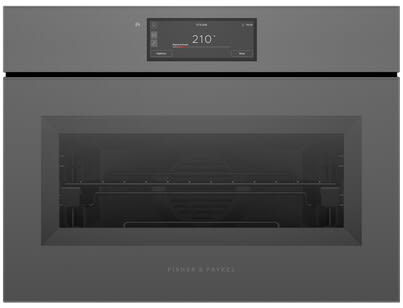

Fisher & Paykel Series 11 OS24NAMHUNG5 - 24-Inch Series 11 Minimal Handleless Compact Combi-Steam Oven

Image Disclaimer

Authorized

Dealer

Fisher & Paykel Series 11

OS24NAMHUNG5

24 Inch Smart Handleless Combi-Steam Wall Oven with 1.9 cu. ft. Total Capacity, 19 Cooking Functions, Air Fry, Sous Vide, 6.8" Touchscreen, Concealed Water Tank, Steam Clean, AeroTech™, ActiveVent™, SmartHQ™ App, Sabbath Mode and ADA Compliant: Minimal Grey

Be the first to write a review

Top Quality Store on Google

quick specs

Microwave: No

Speed Oven: No

Steam Oven: Yes

Fingerprint Resistant: No

Drawer: None

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 5/8 Inch

Cutout Height: 17 5/16 Inch

Capacity: 1.9 Cu. Ft.

Fast Preheat: Yes

Convection Type: True European

Self-Cleaning: No

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Undercounter Installable: Yes

Warranty Terms: 2 years

Color: Minimal Grey

Minimal Black

OS24NAMHUNB5

$6,099.00

Minimal Grey

OS24NAMHUNG5

$6,099.00

^$6,099^.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Fisher & Paykel

Series: Series 11

Model: OS24NAMHUNG5

Warranty Terms: 2 years

Appearance

Fuel Type: Electric

Style: Single

Design Style: Minimal

Microwave: No

Speed Oven: No

Steam Oven: Yes

Door Style: Drop Down

French Door Oven: No

Color: Minimal Grey

Trim Color: Minimal Grey

Handle Color: Minimal Grey

Fingerprint Resistant: No

Handless: Yes

Control Type: Touch Sensor

Viewing Window: Yes

Drawer: None

Clock: Yes

Dimensions

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 5/8 Inch

Cutout Height: 17 5/16 Inch

Exterior Width: 23 7/16 Inch

Exterior Depth: 22 1/4 Inch

Exterior Height: 18 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Smart

WiFi: Yes

Bluetooth: No

Google Home: Yes

Remote Control: Yes

Remote Monitoring: Yes

App Integration: SmartHQ

Smart Accessory Required: No

AI Technology: No

Capacity

Capacity: 1.9 Cu. Ft.

Oven Racks: 2

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Fast Preheat: Yes

Convection: Yes

Convection Type: True European

Self-Cleaning: No

Self-Cleaning Type: Steam

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Broiler: Yes

Broiler Element Location: Top

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: Yes

Sous Vide: Yes

Push to Open: Yes

Soft Close: Yes

Steam Assist: Yes

Plumbed: No

Technical Details

ADA Compliant: Yes

Undercounter Installable: Yes

Approved for Outdoor Use: No

Wattage: 4,200 Watts

LP Conversion: No

Amps: 20

Voltage: 240/208 Volts

Description
Specifications
Features
Reviews

Description

24 Inch Smart Handleless Combi-Steam Wall Oven with 1.9 cu. ft. Total Capacity
Create a seamless kitchen aesthetic with this Fisher & Paykel Series 11 Minimal Handleless oven. Behind its streamlined exterior, 19 cooking functions combine the versatility of steam and convection with options such as Air Fry and Sous Vide. A 6.8" touchscreen offers guided cooking, while a concealed 47 fl. oz. water tank supports steam preparation. SmartHQ™ connectivity and an included temperature sensor bring added convenience and control to everyday meals.

Specifications

Overview

Brand:

Fisher & Paykel

Series:

Series 11

Style:

Minimal

Finish:

Product Type:

Compact Combi-Steam Wall Oven

Fuel Type:

Electric

Nominal Width:

24"

Door Design:

Handleless

Capacity

Total Capacity:

1.9 cu. ft.

Usable Capacity:

1.6 cu. ft.

Shelf Positions:

Water Tank Capacity:

47 fl. oz.

Water Tank Design:

Concealed

Cooking Functions

Number of Functions:

Functions:

Aero Broil, Aero™ Bake, Air Fry, Bake, Classic Bake, Classic Fan, Crisp Regenerate, Eco Slow Cook, Maxi Broil, Roast, Slow Cook, Sous Vide, Steam, Steam Regenerate, True Aero, True Aero + High Steam, True Aero + Low Steam, True Aero + Medium Steam, Vent Bake

Performance

ActiveVent™ System:

Yes

AeroTech™ Technology:

Yes

Automatic Rapid Preheat:

Yes

Steam Assist:

Yes

Method Cooking:

Yes

Broil Power:

3000 W

Temperature Range:

95°F–445°F

Controls

Interface:

6.8" Touchscreen

Guided Cooking:

Yes

Cooking Timer:

Yes

Minute Timer:

Yes

Delay Start:

Yes

Temperature Units:

Celsius/Fahrenheit

Interior Light:

Yes

Multilingual Display:

Yes

Soft-Close Door:

Yes

Wireless Temperature Sensor Compatible:

Yes

Connected Features

SmartHQ™ Connectivity:

Yes

Remote Operation:

Yes

Monitoring:

Yes

Notifications:

Yes

Software Updates:

Yes

Voice Control:

Yes

Cleaning

Interior:

Acid-Resistant Graphite Enamel

Steam Clean:

Yes

Descale Cycle:

Yes

Drying Cycle:

Yes

Removable Door:

Yes

Removable Side Ladders:

Yes

Removable Water Tank:

Yes

Included Accessories

Descale Solution:

2 Sachets

Full-Extension Sliding Shelf:

Handleless Door Key:

Large Steam Dish:

Multifunctional Air Fry Tray:

Perforated Large Steam Dish:

Perforated Small Steam Dish:

Roasting Dish:

Wire Shelf:

Wired Temperature Sensor:

Electrical Requirements

Connection:

Hardwired

Dedicated Circuit:

20 A

Rated Power:

3200 / 4200 W

Supply Voltage:

208 / 240 V

Supply Frequency:

60 Hz

Product Dimensions

Width:

23 7/16"

Depth:

22 1/4"

Height:

18"

Safety and Compliance

ADA Compliant:

Yes

Control Panel Key Lock:

Yes

Sabbath Mode:

Yes, with STAR-K Certification

Features

Handleless Minimal Design

A clean, handle-free exterior creates a streamlined look alongside coordinating kitchen cabinetry and appliances.

Steam and Convection Cooking

Choose steam, convection or a combination of both to suit the dish.

19 Cooking Functions

Explore Air Fry, Sous Vide, Steam, Crisp Regenerate and other versatile cooking options.

Concealed 47 fl. oz. Water Tank

The removable water tank provides generous capacity while maintaining the oven’s refined appearance.

6.8" Touchscreen

Guided cooking and intuitive touchscreen controls help simplify meal preparation.

AeroTech™ and ActiveVent™

Manage oven heat distribution and moisture to support a variety of cooking techniques.

SmartHQ™ Connectivity

Access remote operation, monitoring, notifications and software updates.

Wired Temperature Sensor

Use the included sensor to monitor food temperature as it cooks.

Steam Clean

Steam cleaning, drying and descaling cycles help maintain the oven.

Convenient Oven Access

A soft-close door and full-extension sliding shelf add everyday practicality.

Key Features

ActiveVent™

Automatically manages steam and airflow during and after cooking to optimize performance, enhance cooking results, and promote safer operation.

AeroTech™ Technology

Evenly circulates heat and air throughout the oven, delivering consistent cooking results from top to bottom for perfectly finished dishes every time.

Fisher & Paykel Combi Steam Ovens

Crafted for the home chef, our Combination Steam Oven makes it easy to prepare healthy, flavorful meals with ease.

Fisher & Paykel Wall Ovens

Perfect for entertaining, our ovens ensure every dish you create is cooked to perfection.

SmartHQ™ App

Take control of your appliance from anywhere with the SmartHQ® App, allowing you to remotely monitor status, adjust settings, and manage key functions directly from your smartphone for added convenience and peace of mind.
