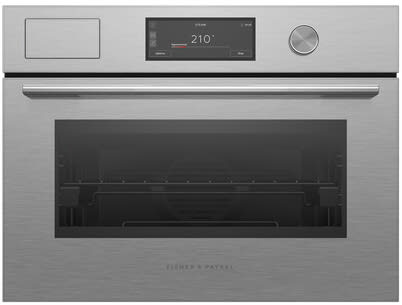

Fisher & Paykel Series 9 OS24NACVUDX5 - 24-inch Series 9 Contemporary Compact Combi-Steam Oven

Image Disclaimer

Authorized

Dealer

Fisher & Paykel Series 9

OS24NACVUDX5

24 Inch Smart Combi-Steam Wall Oven with 1.9 cu. ft. Total Capacity, 19 Cooking Functions, Air Fry, Sous Vide, 6.8" Touchscreen with Dial, Steam Clean, Crisp Regenerate, Dry Cycle, SmartHQ™ App, ActiveVent™ System, AeroTech™ Technology, Sabbath Mode and ADA Compliant

Name: Fisher & Paykel Series 9 OS24NACVUDX5
Brand: Fisher & Paykel
SKU: OS24NACVUDX5
Price: 5699 USD

Be the first to write a review

Top Quality Store on Google

quick specs

Microwave: No

Speed Oven: No

Steam Oven: Yes

Fingerprint Resistant: No

Drawer: None

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 5/8 Inch

Cutout Height: 17 5/16 Inch

Capacity: 1.9 Cu. Ft.

Fast Preheat: Yes

Self-Cleaning: No

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Undercounter Installable: Yes

Warranty Terms: 2 years

^$5,699^.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Fisher & Paykel

Series: Series 9

Model: OS24NACVUDX5

Warranty Terms: 2 years

Appearance

Fuel Type: Electric

Style: Single

Design Style: Contemporary

Microwave: No

Speed Oven: No

Steam Oven: Yes

Door Style: Drop Down

French Door Oven: No

Color: Brushed Silver

Fingerprint Resistant: No

Handless: No

Control Type: Digital and Knobs

Viewing Window: Yes

Drawer: None

Clock: Yes

Dimensions

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 5/8 Inch

Cutout Height: 17 5/16 Inch

Exterior Width: 23 7/16 Inch

Exterior Depth: 22 1/4 Inch

Exterior Height: 18 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Smart

WiFi: Yes

Google Home: Yes

Remote Control: Yes

Remote Monitoring: Yes

App Integration: SmartHQ

Smart Accessory Required: No

Capacity

Capacity: 1.9 Cu. Ft.

Oven Racks: 2

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Fast Preheat: Yes

Convection: Yes

Self-Cleaning: No

Self-Cleaning Type: Steam

Steam Clean: Yes

Glide Rack(s): Yes

Temperature Probe: Yes

Broiler: Yes

Broiler Element Location: Top

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: Yes

Sous Vide: Yes

Push to Open: No

Soft Close: Yes

Steam Assist: Yes

Technical Details

ADA Compliant: Yes

Undercounter Installable: Yes

Approved for Outdoor Use: No

Wattage: 3,200 Watts

LP Conversion: No

Amps: 20

Voltage: 240/208 Volts

Description
Specifications
Features
Reviews

Description

24 Inch Smart Combi-Steam Wall Oven with 1.9 cu. ft. Total Capacity
Bring more possibilities to everyday cooking with this Fisher & Paykel Series 9 Contemporary oven. Combine steam and convection for moist interiors and beautifully finished exteriors, or explore dedicated Air Fry, Sous Vide and Steam functions. A 6.8" touchscreen with dial provides guided cooking, while SmartHQ™ connectivity keeps convenient oven controls within reach. Its compact design, soft-close door and full-extension sliding shelf add thoughtful convenience to your kitchen.

Specifications

Overview

Brand:

Fisher & Paykel

Model:

OS24NACVUDX5

Series:

Series 9

Style:

Contemporary

Finish:

Brushed Silver

Product Type:

Compact Combi-Steam Wall Oven

Fuel Type:

Electric

Nominal Width:

24"

Door Design:

Handle

Capacity

Total Capacity:

1.9 cu. ft.

Usable Capacity:

1.6 cu. ft.

Shelf Positions:

Water Tank Capacity:

23 fl. oz.

Cooking Functions

Number of Functions:

Functions:

Aero Broil, Aero™ Bake, Air Fry, Bake, Classic Bake, Classic Fan, Crisp Regenerate, Eco Slow Cook, Maxi Broil, Roast, Slow Cook, Sous Vide, Steam, Steam Regenerate, True Aero, True Aero + High Steam, True Aero + Low Steam, True Aero + Medium Steam, Vent Bake

Performance

ActiveVent™ System:

Yes

AeroTech™ Technology:

Yes

Automatic Rapid Preheat:

Yes

Steam Assist:

Yes

Method Cooking:

Yes

Broil Power:

3000 W

Temperature Range:

95°F–445°F

Controls

Interface:

6.8" Touchscreen with Dial

Guided Cooking:

Yes

Cooking Timer:

Yes

Minute Timer:

Yes

Delay Start:

Yes

Temperature Units:

Celsius/Fahrenheit

Interior Light:

Yes

Multilingual Display:

Yes

Soft-Close Door:

Yes

Wireless Temperature Sensor Compatible:

Yes

Connected Features

SmartHQ™ Connectivity:

Yes

Remote Operation:

Yes

Monitoring:

Yes

Notifications:

Yes

Software Updates:

Yes

Voice Control:

Yes

Cleaning

Interior:

Acid-Resistant Graphite Enamel

Steam Clean:

Yes

Descale Cycle:

Yes

Drying Cycle:

Yes

Removable Door:

Yes

Removable Side Ladders:

Yes

Removable Water Tank:

Yes

Included Accessories

Descale Solution:

2 Sachets

Full-Extension Sliding Shelf:

Large Steam Dish:

Multifunctional Air Fry Tray:

Perforated Large Steam Dish:

Perforated Small Steam Dish:

Roasting Dish:

Wire Shelf:

Wired Temperature Sensor:

Electrical Requirements

Connection:

Hardwired

Dedicated Circuit:

20 A

Rated Power:

3200 / 4200 W

Supply Voltage:

208 / 240 V

Supply Frequency:

60 Hz

Product Dimensions

Width:

23 7/16"

Depth:

22 1/4"

Height:

18"

Safety and Compliance

ADA Compliant:

Yes

Control Panel Key Lock:

Yes

Sabbath Mode:

Yes, with STAR-K Certification

Features

Steam and Convection Cooking

Use steam, convection or a combination of both to suit everything from delicate vegetables to roasts and baked goods.

19 Cooking Functions

Explore versatile options including Air Fry, Sous Vide, Steam, Roast and Crisp Regenerate.

6.8" Touchscreen with Dial

Guided touchscreen cooking and a physical dial make selecting settings straightforward.

AeroTech™ and ActiveVent™

Manage heat distribution and oven moisture for greater control over cooking results.

SmartHQ™ Connectivity

Access remote operation, monitoring, notifications and software updates through a connected appliance experience.

Wired Temperature Sensor

Check food temperature with the included sensor for more informed cooking decisions.

23 fl. oz. Water Tank

A removable water tank supports steam cooking and convenient refilling.

Steam Clean

Steam cleaning, drying and descaling cycles help maintain the oven.

Everyday Convenience

A soft-close door and included full-extension sliding shelf make loading and unloading easier.

Key Features

ActiveVent™

Automatically manages steam and airflow during and after cooking to optimize performance, enhance cooking results, and promote safer operation.

AeroTech™ Technology

Evenly circulates heat and air throughout the oven, delivering consistent cooking results from top to bottom for perfectly finished dishes every time.

Fisher & Paykel Combi Steam Ovens

Crafted for the home chef, our Combination Steam Oven makes it easy to prepare healthy, flavorful meals with ease.

SmartHQ™ App

Take control of your appliance from anywhere with the SmartHQ® App, allowing you to remotely monitor status, adjust settings, and manage key functions directly from your smartphone for added convenience and peace of mind.
