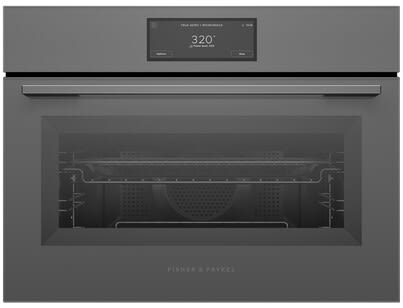

Fisher & Paykel Series 9 OM24NMUG5 - 24-Inch Series 9 Minimal Compact Convection-Speed Oven

Image Disclaimer

Authorized

Dealer

Fisher & Paykel Series 9

OM24NMUG5

24 Inch Smart Speed Oven with 1.7 cu. ft. Oven Capacity, 18 Cooking Functions, Convection, 900W Microwave Power, Broil, 6.8" Touchscreen, SmartHQ™ App, ActiveVent™ System, AeroTech™ Technology, Air Fry, Control Panel Key Lock, Temperature Sensor, Sabbath Mode, STAR-K Certified and ADA Compliant: Minimal Grey

Be the first to write a review

Top Quality Store on Google

quick specs

Microwave: Yes

Speed Oven: Yes

Steam Oven: No

Fingerprint Resistant: No

Drawer: None

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 7/16 Inch

Cutout Height: 17 5/16 Inch

Capacity: 1.7 Cu. Ft.

Fast Preheat: Yes

Convection Type: True European

Self-Cleaning: No

Steam Clean: No

Temperature Probe: Yes

Undercounter Installable: Yes

Warranty Terms: 2 years

Color: Minimal Grey

Minimal Black

OM24NMUB5

$4,399.00

Minimal Grey

OM24NMUG5

$4,399.00

^$4,399^.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Fisher & Paykel

Series: Series 9

Model: OM24NMUG5

Warranty Terms: 2 years

Appearance

Fuel Type: Electric

Style: Single

Design Style: Minimal

Microwave: Yes

Speed Oven: Yes

Steam Oven: No

Door Style: Drop Down

French Door Oven: No

Color: Minimal Grey

Trim Color: Minimal Grey

Handle Color: Minimal Grey

Fingerprint Resistant: No

Handless: No

Control Type: Touch Sensor

Viewing Window: Yes

Drawer: None

Clock: Yes

Dimensions

Cutout Width: 22 1/16 Inch

Cutout Depth: 21 7/16 Inch

Cutout Height: 17 5/16 Inch

Exterior Width: 23 7/16 Inch

Exterior Depth: 22 1/4 Inch

Exterior Height: 18 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Smart

WiFi: Yes

Bluetooth: No

Google Home: Yes

Remote Control: Yes

Remote Monitoring: Yes

App Integration: SmartHQ

Smart Accessory Required: No

AI Technology: No

Capacity

Capacity: 1.7 Cu. Ft.

Oven Racks: 2

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Fast Preheat: Yes

Convection: Yes

Convection Type: True European

Self-Cleaning: No

Steam Clean: No

Temperature Probe: Yes

Broiler: Yes

Broiler Pan Included: Yes

Interior Oven Light: Yes

Oven Camera: No

Removable Door: No

Air Fry: Yes

Sous Vide: No

Push to Open: No

Soft Close: Yes

Steam Assist: No

Plumbed: No

Microwave Features

Capacity: 1.7 Cu. Ft.

Cooking Watts: 900

With Turntable: No

Convection Oven: Yes

Broiler: Yes

Push to Open: No

Soft Close: Yes

Technical Details

ADA Compliant: Yes

Undercounter Installable: Yes

Approved for Outdoor Use: No

Wattage: 3,900 Watts

LP Conversion: No

Amps: 20

Voltage: 240/208 Volts

Description
Specifications
Features
Reviews

Description

24 Inch Smart Compact Convection-Speed Oven with 1.7 cu. ft. Oven Capacity
Discover more ways to cook with this Fisher & Paykel Series 9 Minimal speed oven. Microwave and convection technologies work independently or together, with 18 functions for everything from quick reheating to Air Fry and roasting. A spacious 6.8" touchscreen provides guided cooking, while SmartHQ™ connectivity and an included temperature sensor keep useful information close at hand. Its refined handle and soft-close door complement a clean, coordinated kitchen.

Specifications

Overview

Brand:

Fisher & Paykel

Series:

Series 9

Style:

Minimal

Finish:

Minimal Grey

Product Type:

Built-In Convection-Speed Oven

Fuel Type:

Electric

Nominal Width:

24"

Door Design:

Handle

Capacity

Total Capacity:

1.7 cu. ft.

Usable Capacity:

1.3 cu. ft.

Shelf Positions:

Turntable:

Cooking Functions

Number of Functions:

Functions:

Aero Broil, Aero Broil + Microwave, Aero™ Bake, Air Fry, Bake, Classic Fan, Dehydrate, Maxi Broil, Maxi Broil + Microwave, Melt, Microwave, Quick Start, Roast, Roast + Microwave, Slow Cook, True Aero, True Aero + Microwave, Vent Bake

Performance

Microwave Power:

900 W

Broil Power:

3000 W

ActiveVent™ System:

Yes

AeroTech™ Technology:

Yes

Automatic Rapid Preheat:

Yes

Controls

Interface:

6.8" Touchscreen

Guided Cooking:

Yes

Cooking/Minute Timer:

Yes

Delay Start:

Yes

Temperature Units:

Celsius/Fahrenheit

Interior Light:

Yes

Multilingual Display:

Yes

Soft-Close Door:

Yes

Wireless Temperature Sensor Compatible:

Yes

Connected Features

SmartHQ™ Connectivity:

Yes

Remote Operation:

Yes

Monitoring:

Yes

Notifications:

Yes

Software Updates:

Yes

Voice Control:

Yes

Cleaning

Interior:

Acid-Resistant Graphite Enamel

Drying Cycle:

Yes

Removable Side Ladders:

Yes

Included Accessories

Glass Tray:

Broil Rack:

Step-Down Wire Shelf:

Wire Shelf:

Wired Temperature Sensor:

Electrical Requirements

Connection:

Hardwired

Dedicated Circuit:

20 A

Rated Power:

3300 / 3900 W

Supply Voltage:

208 / 240 V

Supply Frequency:

60 Hz

Product Dimensions

Width:

23 7/16"

Depth:

22 1/4"

Height:

18"

Safety and Compliance

ADA Compliant:

Yes

Control Panel Key Lock:

Yes

Sabbath Mode:

Yes, with STAR-K Certification

Features

Minimal Design

Clean lines and a refined glass finish create a streamlined look that coordinates beautifully with other Fisher & Paykel Minimal appliances.

Microwave and Convection

Combine microwave speed with convection browning, or use either independently.

18 Cooking Functions

Air Fry, Dehydrate, Melt and combination modes expand your options.

6.8" Touchscreen

A generous display offers guided cooking and intuitive settings.

Turntable-Free Interior

The rectangular cavity accommodates cookware without a rotating plate.

ActiveVent™ and AeroTech™

Manage moisture and heat distribution for controlled cooking.

SmartHQ™ Connectivity

Access remote monitoring, key controls, notifications and software updates.

Included Temperature Sensor

Monitor food temperature for more precise preparation.

Sabbath Mode

Includes Sabbath Mode with STAR-K certification.

Key Features

ActiveVent™

Automatically manages steam and airflow during and after cooking to optimize performance, enhance cooking results, and promote safer operation.

AeroTech™ Technology

Evenly circulates heat and air throughout the oven, delivering consistent cooking results from top to bottom for perfectly finished dishes every time.

Fisher & Paykel Wall Ovens

Perfect for entertaining, our ovens ensure every dish you create is cooked to perfection.

SmartHQ™ App

Take control of your appliance from anywhere with the SmartHQ® App, allowing you to remotely monitor status, adjust settings, and manage key functions directly from your smartphone for added convenience and peace of mind.
