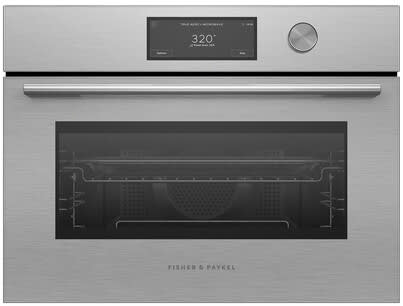

Fisher & Paykel Series 9 OM24NCUDX5 - 24-inch Series 9 Contemporary Compact Convection-Speed Oven

Image Disclaimer

Authorized

Dealer

Fisher & Paykel Series 9

OM24NCUDX5

24 Inch Smart Speed Oven with 1.7 cu. ft. Oven Capacity, 6.8" Touchscreen with Dial, 18 Cooking Functions, 900W Microwave Power, Convection, Air Fry, Wired Temperature Sensor, SmartHQ™ App, ActiveVent™ System, AeroTech™ Technology, Automatic Rapid Pre-Heat, Sabbath Mode, and ADA Compliant

Name: Fisher & Paykel Series 9 OM24NCUDX5
Brand: Fisher & Paykel
SKU: OM24NCUDX5
Price: 4399 USD

Be the first to write a review

Top Quality Store on Google

quick specs

Microwave: Yes

Speed Oven: Yes

Steam Oven: No

Fingerprint Resistant: No

Drawer: None

Capacity: 1.7 Cu. Ft.

Fast Preheat: Yes

Convection Type: True European

Glide Rack(s): No

Temperature Probe: Yes

Undercounter Installable: Yes

Warranty Terms: 2 years

^$4,399^.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Fisher & Paykel

Series: Series 9

Model: OM24NCUDX5

Warranty Terms: 2 years

Appearance

Fuel Type: Electric

Style: Single

Design Style: Contemporary

Microwave: Yes

Speed Oven: Yes

Steam Oven: No

Door Style: Drop Down

French Door Oven: No

Color: Brushed Silver

Trim Color: Brushed Silver

Handle Color: Brushed Silver

Fingerprint Resistant: No

Stainless Steel Handle: Yes

Handless: No

Control Type: Digital and Knobs

Viewing Window: Yes

Drawer: None

Dimensions

Exterior Width: 23 7/16 Inch

Exterior Depth: 22 1/4 Inch

Exterior Height: 18 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Smart

WiFi: Yes

Bluetooth: No

Google Home: Yes

Remote Control: Yes

Remote Monitoring: Yes

App Integration: SmartHQ

Smart Accessory Required: No

Capacity

Capacity: 1.7 Cu. Ft.

Oven Racks: 2

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Fast Preheat: Yes

Convection: Yes

Convection Type: True European

Glide Rack(s): No

Temperature Probe: Yes

Broiler: Yes

Interior Oven Light: Yes

Oven Camera: No

Air Fry: Yes

Sous Vide: No

Push to Open: No

Soft Close: Yes

Steam Assist: No

Plumbed: No

Microwave Features

Capacity: 1.7 Cu. Ft.

Cooking Watts: 900

With Turntable: No

Convection Oven: Yes

Broiler: Yes

Push to Open: No

Soft Close: Yes

Technical Details

ADA Compliant: Yes

Undercounter Installable: Yes

Approved for Outdoor Use: No

Wattage: 3,900 Watts

LP Conversion: No

Amps: 20

Voltage: 240/208 Volts

Description
Specifications
Features
Reviews

Description

24 Inch Smart Speed Wall Oven with 1.7 cu. ft. Total Capacity
Bring microwave convenience and convection versatility together in this Fisher & Paykel Series 9 Contemporary speed oven. Explore 18 cooking functions, from Air Fry to combination cooking, through a generous 6.8" touchscreen with dial. A turntable-free interior accommodates larger dishes, while SmartHQ™ connectivity and an included temperature sensor help you stay in control. The Brushed Silver finish and round bar handle complete its coordinated Contemporary look.

Specifications

Overview

Brand:

Fisher & Paykel

Model:

OM24NCUDX5

Series:

Series 9

Style:

Contemporary

Finish:

Brushed Silver

Product Type:

Built-In Convection-Speed Oven

Fuel Type:

Electric

Nominal Width:

24"

Door Design:

Round Bar Handle

Capacity

Total Capacity:

1.7 cu. ft.

Usable Capacity:

1.3 cu. ft.

Shelf Positions:

Turntable:

Cooking Functions

Number of Functions:

Functions:

Aero Broil, Aero Broil + Microwave, Aero™ Bake, Air Fry, Bake, Classic Fan, Dehydrate, Maxi Broil, Maxi Broil + Microwave, Melt, Microwave, Quick Start, Roast, Roast + Microwave, Slow Cook, True Aero, True Aero + Microwave, Vent Bake

Performance

Microwave Power:

900 W

Broil Power:

3000 W

ActiveVent™ System:

Yes

AeroTech™ Technology:

Yes

Automatic Rapid Preheat:

Yes

Controls

Interface:

6.8" Touchscreen with Dial

Guided Cooking:

Yes

Cooking/Minute Timer:

Yes

Delay Start:

Yes

Temperature Units:

Celsius/Fahrenheit

Interior Light:

Yes

Multilingual Display:

Yes

Soft-Close Door:

Yes

Wireless Temperature Sensor Compatible:

Yes

Connected Features

SmartHQ™ Connectivity:

Yes

Remote Operation:

Yes

Monitoring:

Yes

Notifications:

Yes

Software Updates:

Yes

Voice Control:

Yes

Cleaning

Interior:

Acid-Resistant Graphite Enamel

Drying Cycle:

Yes

Removable Side Ladders:

Yes

Included Accessories

Glass Tray:

Grill Rack:

1 Set

Step-Down Wire Shelf:

Wire Shelf:

Wired Temperature Sensor:

Electrical Requirements

Connection:

Hardwired

Dedicated Circuit:

20 A

Rated Power:

3300 / 3900 W

Supply Voltage:

208 / 240 V

Supply Frequency:

60 Hz

Product Dimensions

Width:

23 7/16"

Depth:

22 1/4"

Height:

18"

Safety and Compliance

ADA Compliant:

Yes

Control Panel Key Lock:

Yes

Sabbath Mode:

Yes, with STAR-K Certification

Features

Compact Convection-Speed Oven

Combines microwave speed with convection cooking in one compact built-in oven, giving you faster cooking with the versatility of traditional oven methods.

1.7 cu. ft. Capacity

Provides a spacious 1.7 cu. ft. total capacity with 1.3 cu. ft. usable capacity.

Microwave + Convection Cooking

Uses microwave energy, convection heat, or both together to provide flexible cooking for a wide range of foods.

Microwave Assist

Combines microwave energy with convection heat to speed up cooking while helping retain moisture and develop attractive browning. Fisher & Paykel states that a 3.3-lb chicken can roast 30–40% faster than with convection alone.

18 Cooking Functions

Provides a broad selection of cooking functions, including Microwave, Bake, Roast, Air Fry, Dehydrate, Slow Cook, Broil, and combination microwave functions.

13 Cooking Methods

Includes Air Fry, Bake, Broil, Defrost, Dehydrate, Melt, Microwave, Proof, Reheat, Reverse Sear, Roast, Slow Cook, and Warm.

6.8" Touchscreen with Dial

Large touchscreen interface with a physical dial provides intuitive control and guided access to cooking functions and settings.

Guided Touchscreen Cooking

Provides on-screen guidance to help select appropriate cooking methods and settings for different foods.

Wired Temperature Sensor

Monitors food temperature during cooking for more precise results and provides guidance for temperature-sensitive cooking.

AeroTech™ Technology

Uses controlled airflow to distribute heat throughout the oven cavity for consistent cooking results.

ActiveVent™ System

Manages humidity inside the oven to help maintain appropriate cooking conditions and food texture.

Automatic Rapid Preheat

Quickly brings the oven to the desired temperature, helping reduce preheating time.

900W Microwave Power

Provides 900 watts of microwave power for fast cooking, reheating, and defrosting.

3,000W Broil Power

High-output broiling provides strong heat for browning, grilling, and finishing dishes.

Air Fry

Uses circulating hot air to produce crisp results with little or no added oil.

Rectangular Cavity

The rectangular interior accommodates larger or differently shaped dishes more efficiently than a traditional round microwave cavity.

No Turntable

Eliminates the traditional microwave turntable, maximizing usable interior space and allowing larger dishes to remain stationary.

Four Shelf Positions

Multiple shelf positions provide flexibility for different cooking methods and cookware sizes.

Wi-Fi Connectivity

Connects the oven to a home network for smart cooking features and remote functionality.

SmartHQ™ App

Enables remote monitoring and control of key oven functions, notifications, cooking guidance, and software updates.

Remote Monitoring & Operation

Allows you to monitor cooking progress and control supported functions remotely through the SmartHQ app.

Voice Control

Supports voice control through Google Assistant for compatible connected functions.

Contemporary Design

Features Fisher & Paykel's Contemporary styling with Brushed Silver Glass and a round bar handle, allowing it to coordinate with other Contemporary appliances.

Soft-Close Door

Provides smoother and quieter door closing.

Sabbath Mode

Includes Sabbath mode with Star-K certification.

Easy-Clean Interior

Acid-resistant graphite enamel, removable side ladders, and a drying cycle help simplify oven maintenance.

Engineered for Durability

Fisher & Paykel states the oven undergoes testing equivalent to 7,300 hours or 20 years of real-world use.

Key Features

ActiveVent™

Automatically manages steam and airflow during and after cooking to optimize performance, enhance cooking results, and promote safer operation.

AeroTech™ Technology

Evenly circulates heat and air throughout the oven, delivering consistent cooking results from top to bottom for perfectly finished dishes every time.

Fisher & Paykel Wall Ovens

Perfect for entertaining, our ovens ensure every dish you create is cooked to perfection.

SmartHQ™ App

Take control of your appliance from anywhere with the SmartHQ® App, allowing you to remotely monitor status, adjust settings, and manage key functions directly from your smartphone for added convenience and peace of mind.
