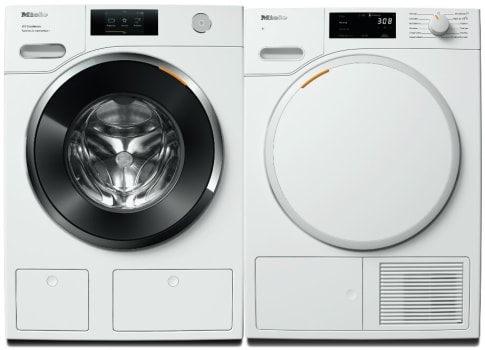

Miele MIWADREWCS9802 - Side by Side Washer & Dryer Set with Front Load Washer & Heat Pump Dryer in White
Miele MIWADREWCS9802 - Side by Side Washer & Dryer Set with Front Load Washer & Heat Pump Dryer in White
Miele MIWADREWCS9802 - 24 Inch Front Load Washer
Miele MIWADREWCS9802 - 23 Inch Classic Ventless Heat Pump Dryer
+12

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Miele MIWADREWCS9802
Authorized
Dealer

Miele
MIWADREWCS9802
Side-by-Side Front Load Washer and Electric Dryer Set in White

Top Quality Store on Google
Save $200!
included items
24 Inch Front Load Washer (WXF980WCS)
• 2.26 cu ft, Honey Comb Drum, Direct Sensor
24 Inch Classic Ventless Heat Pump Dryer (TXB360WP)
• 4.1 cu ft Capacity, Direct Sensor User Interface, Honeycomb Drum
Color:
White
White
Configuration:
Side-by-Side
Side-by-Side
Stacked
Add $1,758.00
Fuel Type:
Electric
Electric
$4,498.00
Rebate(s): -$200.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Protect Your Purchase
- 30% Cash Back! +$713
Have questions? Chat with us!
Product Information
Brand: Miele
Model: WXF980WCS
Appearance
Type: Front Load
Color: White
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 23 1/2 Inch
Depth: 25 5/16 Inch
Height: 33 1/2 Inch
Capacity: 2.26 Cu. Ft.
Smart
WiFi: Yes
Alexa: No
Google Home: No
Remote Control: Yes
Remote Monitoring: No
Remote Diagnostics: Yes
Dash Replenishment: No
App Integration: Miele@Home
Smart Accessory Required: Yes
AI Technology: No
Features
Control Type: Touch Sensor
Bleach Dispenser: Yes
Fabric Softener Dispenser: Yes
Stainless Steel Drum: Yes
Leveling Legs: No
Maximum Spin Speed (RPM): 1,600
Interior Light: No
Includes Hoses: Yes
Water Heater: No
Usage: Residential
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: Miele@home
Remote Access: Yes
Cycles
Wash Cycles: 14
Steam Cycle: Yes
Sanitize Cycle: Yes
Pet Cycle: No
Add Wash: Yes
Delicate Cycle: Yes
Extra Rinse Cycle: Yes
Heavy Duty Cycle: No
Permanent Press Cycle: Yes
Pre-Wash Cycle: Yes
Programmable Cycle: Yes
Quick Wash Cycle: Yes
Soak Cycle: No
Whites Cycle: No
Cold Water Cycle: Yes
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Amps: 15
Voltage: 110 Volts
GTIN
EAN: 4002516984702
Are you a Trade Pro? Join Now

Description

24 Inch Front Load Washer
The WXF980WCS is a premium 24" front-load washer in Miele’s W1 series featuring TwinDos automatic detergent dosing, M Touch full-touch display, and advanced wash automation. It is designed for maximum fabric care, precision cleaning, and smart connectivity with very low energy and water consumption.

Specifications

Overview
Width:
23 1/2 Inches
Depth:
25 5/16 Inches
Height:
33 1/2 Inches
Minimum Cabinet Niche Opening:
23 3/4 *33 5/8 *24
Water Supply Requirements:
Cold or Hot (max 140°F/60°C) water connection
Male 3/4” GHT fitting:
Yes
Water pressure range 14.5 psi:
(1 bar) and 145 psi (10 bar)
Water Connection Line:
Length: 5 ft 3 in. (1.6 m)
Female 3/4” GHT fitting:
Yes
Drain Hose (Supplied) Length:
5 ft (1.5 m)
Electrical Requirements:
110 V / 120 V, 60 Hz, 15 Amps
Power Cord NEMA:
5 - 15 plug, 6 ft 6 in. (2 m)
Shipping Weight:
221 lbs (100 kg)
Shipping Dimensions:
26” W x 37” H x 27 3/16”D

Features

Cleaning & Automation
  • TwinDos® automatic detergent dispensing system
  • CapDosing® single-use specialty detergents
Automatic load recognition
  • Foam sensing + imbalance detection
  • Precision wash timing and water control
Wash Performance & Care
  • QuickPowerWash / Quick wash programs
  • SteamCare / Pre-ironing (reduces wrinkles)
  • SoftSteam wrinkle reduction finish
  • 1600 RPM max spin speed
  • Honeycomb Drum® gentle fabric protection
Smart Controls
  • M Touch full-color touchscreen
  • Miele@home WiFi connectivity
  • Mobile app remote monitoring and cycle control
Convenience Features
  • AddLoad (pause & add clothing mid-cycle)
  • Drum interior LED lighting
  • Programmable “Favorite” cycles
  • Delay start / time scheduling
California residents see Prop 65 WARNINGS

Current Rebates

Miele: $200 Off Purchase of Select Miele Washing Machines Download Form

Miele: $200 Off Purchase of Select Miele Washing Machines

When You Buy
Select Miele Washing Machines
You Get
$200
Expiration Date
12/31/2026
Savings Type
Mail-in Savings

Rebate
Submit By: 4/16/27

Your washing machine may be eligible for a $200 rebate. To qualify, you must:

Purchase a qualifying washing machine between September 1st and December 31st, 2026.

Receive delivery by February 15, 2027.
Save time and Submit Your Claim Online
Submit by April 16, 2027

Available Rebates - May be Combined

Note: It is the sole responsibility of the customer to download and mail in the rebate form by the respective closing date. AJ Madison cannot be held responsible for non-compliance of the afore-mentioned.

AJ Madison Exclusive Rebate

Please note:

This rebate will only be paid on AJ Madison purchases only.
Purchases in any other store do not qualify for this rebate.
All rebate forms will be rejected.

Reviews

Washer Accessories

Manuals & Guides

Specification Sheet
Product Information
Brand: Miele
Model: TXB360WP
Appearance
Type: Front Load
Fuel Type: Electric
Color: White
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 23 1/2 Inch
Depth: 25 5/16 Inch
Height: 33 1/2 Inch
Capacity: 4.1 Cu. Ft.
Smart
WiFi: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
App Integration: Miele@Home
Smart Accessory Required: No
AI Technology: No
Features
Control Type: Digital and Knobs
Stainless Steel Drum: No
Dry Rack: No
Venting Type: Ventless
Heating Element: Heat Pump
Interior Light: No
Usage: Residential
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: Miele@Home
Remote Access: Yes
Cycles
Wrinkle Control Cycle: Yes
Steam Cycle: No
Sanitize Cycle: No
Pet Cycle: No
Sensor Dry: Yes
Air Dry/Air Fluff Cycle: Yes
Delicate Cycle: Yes
Heavy Duty Cycle: No
Permanent Press Cycle: No
Programmable Cycle: No
Quick / Express Dry: Yes
Refresh Cycle: Yes
Timed Dry: Yes
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Amps: 15
Voltage: 120 Volts
GTIN
EAN: 4002516944966
Are you a Trade Pro? Join Now

Description

24 Inch Classic Ventless Heat Pump Dryer
The Miele TXB360WP is a 24-inch ventless heat pump dryer designed to provide energy-efficient, gentle fabric care while delivering precise drying results. Utilizing Miele's advanced heat pump technology, it dries at lower temperatures to help protect fabrics from excessive wear. The dryer features PerfectDry moisture sensing, a Honeycomb Drum, FragranceDos scent system, and smart connectivity through Miele@home for convenient remote monitoring and control.

Specifications

Overview
Width:
23 1/2 Inches
Height:
33 1/2 Inches
Depth:
25 15/16 Inches
Cabinet Niche Opening:
23 3/4 Width*24 Depth* 33 5/8 Height
Drain Hose (Supplied):
Length: 5 ft 3 in. (1.6 m)
Electrical Requirements:
110 V / 120 V, 60 Hz, 15 Amps
Power Cord:
NEMA 5 - 15 plug, 6 ft 6 in. (2 m)
Shipping Weight:
137 lbs (62 kg)
Shipping Dimensions:
26” W x 37” H x 27 3/16”D

Features

Heat Pump Technology
  • Heat Pump Technology for gentle, energy-efficient drying
Ventless
  • Ventless installation design
Perfect Dry
  • PerfectDry moisture-sensing system
Honeycomb Drum
  • Honeycomb Drum for fabric protection
FragranceDos
  • FragranceDos laundry fragrance system
Wifi
  • Miele@home Wi-Fi connectivity and app control
EcoDry
  • EcoDry technology for reduced energy consumption
Energy Star
  • ENERGY STAR® certified
Other Features
  • Delay Start up to 24 hours
  • Intelligent drum reversal for even drying
