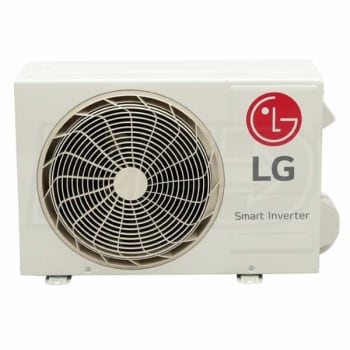

LG LSU090HEV1 - Front View
LG LSU090HEV1 - Front View
LG LSU090HEV1 - Dimensions
LG LSU090HEV1 - Sideview
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LG LSU090HEV1
Authorized
Dealer

LG LSU090HEV1 8,500 BTU Mega Single Zone Inverter Heat Pump Wall Mount Value Line Outdoor Unit with 9,000 BTU Heating Capacity, Sleep Mode, Gold Fin, Inverter Variable Speed Compressor, Ultra Quiet Operation, Auto Restart, 19 SEER, 12.5 EER, 9 HSPF, EEV Refrigerant Control, R410A Refrigerant, 208-230 Volts and 2.12 Dehumidification

quick specs
Width: 281/4 Inch
Depth: 9 1/16 Inch
Height: 19 1/2 Inch
Net Weight: 62 Lbs.
Shipping Weight: 67 Lbs.
BTU Class: 8,500 BTU
Heating Capacity: 9,000 BTU
Cooling Capacity: 8,500 BTU
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: LG
Model: LSU090HEV1
Warranty Terms: 1 year
?
Dimensions & Weights
Width: 281/4 Inch
Depth: 9 1/16 Inch
Height: 19 1/2 Inch
Net Weight: 62 Lbs.
Shipping Weight: 67 Lbs.
Capacity
BTU Class: 8,500 BTU
Heating Capacity: 9,000 BTU
Cooling Capacity: 8,500 BTU
General
AC System Type: Mini Split
Component Type: Outdoor Unit
Operation: Cooling with Heat Pump
Min No. of Connectible Indoor Units: 1
Max No. of Connectible Indoor Units: 1
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Running Current Cooling - Rated (Amps): 7.5 Amps
Running Current Heating - Rated (Amps): 7.5 Amps
Minimum Ampacity (Amps): 10 Amps
Max. TD Fuse/Breaker: 15 Amps
Power Input Cooling - Rated (Watts): 680 Watts
Power Input Heating - Rated (Watts): 780 Watts
Rated Amps: 7.5 Amps
Performance
Compressor Noise Level - Cooling (dB): 47 dB
Compressor Noise Level - Heating (dB): 47 dB
Energy Star Certified: No
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 18
Liquid Line Outer Diameter: 1/4 Inch
Suction Line Outer Diameter: 3/8 Inch
Drain Line Outer Diameter: 21 Inch
Drain Line Inner Diameter: 16 Inch
Power Supply Cable - No. x AWG: 3 x 14
Refrigeration System
Refrigerant Type: R-410A
Compressor Type: Single Rotary
Refrigerant Control: EEV
Refrigerant Charge: 1.87 Ft.
Piping Length (No Additional Refrigerant): 24.6 Ft.
Min. Line Length - Each: 9.8 Ft.
Max. Line Length - Each: 49.2 Ft.
Min. Line Length - Total: 9.8 Ft.
Max. Line Length - Total: 49.2 Ft.
Max. Height Diff. btwn. Indoor and Outdoor Units: 22.9 Ft.
Outside Temperature Range for Cooling - Min.: 14 °F
Outside Temperature Range for Cooling - Max.: 118 °F
Outside Temperature Range for Heating - Min.: 14 °F
Outside Temperature Range for Heating - Max.: 65 °F
Features
Sleep Mode: Yes
Inverter (Variable speed compressor): Yes
Low Ambient Operating Threshold (F°): 14
Corrosion Protection: Yes
No. of Fan Speeds: 4
WiFi Connected: No
Technical Details
Voltage: 115 Volts
GTIN
UPC: 48231377041
Are you a Trade Pro? Join Now

Description

8,500 BTU Mega Single Zone Inverter Heat Pump Wall Mount Value Line Outdoor Unit with 9,000 BTU Heating Capacity
This LG Mega Single Zone Inverter Heat Pump is a slim, lightweight, and aesthetically pleasing outdoor unit. It offers a 8,500 BTU Cooling Capacity and 9,000 BTU Heating Capacity also featuring Auto Restart, which automatically restarts the unit to a programmed setting when electricity is turned on after a power failure, Inverter Variable Speed Compressor, 19 SEER, 12.5 EER, 9 HSPF, EEV Refrigerant Control, R410A Refrigerant, 208-230 Volts, 2.12 Dehumidification, 15 Amps Maximum Overcurrent Protection, 10 Amps MCA - Minimum Circuit Ampacity, and 1.85 Lbs Refrigerant Charge. LG Mega Wall Mount Value Line Mini Splits inverter models use a variable speed compressor that is quieter to operate and uses less energy than conventional air conditioners because when the selected temperature is reached, the inverter compressor operates at low speeds to maintain that level of comfort and when the weather turns cold it is good to know that LG inverter models offer more heating power. In addition, LG Single Zone Inverter Heat Pump Mega Wall Mount Value Line mini split outdoor units are a brilliant blend of sleek aesthetics and clever engineering, making them a great option for any room that needs a heating and cooling solution that will not disrupt the design of the space while improving your quality of life in an affordable and efficient way.

Specifications

Specifications
Color:
White
Auto Restart:
Yes
Refrigerant Type:
R410A
Refrigerant Control:
EEV
Provides Heating:
Yes
Performance
Cooling Capacity:
8,500 BTU
EER:
12.5
SEER:
19
Heating Capacity:
9,000 BTU
HSPF:
10
Operating Sound Level dB:
47
Airflow CFM Rate Max:
953
Fan Type:
Propeller
Heat Exchanger Coating:
GoldFin
Product Height:
19 1/2"
Product Width:
28 1/4"
Product Depth:
9 1/16"
Net Weight:
62 Lbs
Gross Weight:
67 Lbs

Features

This is an outdoor condenser unit only, an indoor unit is necessary to function properly.
Auto Restart
  • Automatically restarts a unit to programmed setting when the electricity comes on after a power failure.
Inverter (Variable Speed Compressor)
  • Unlike conventional air conditioners that cycle on and off, an inverter compressor ramps up or down to match the capacity and maintain comfort levels
Gold Fin
  • The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period
Sleep Mode
  • This function turns off the air conditioner automatically when you go to sleep
Other Features
  • 19 SEER
  • 12.5 EER
  • 10 HSPF
  • EEV Refrigerant Control
  • R410A Refrigerant
  • 208-230V
  • 2.12 Dehumidification
  • 9,000 BTU Heating Capacity
  • Ultra-Quiet Operation
