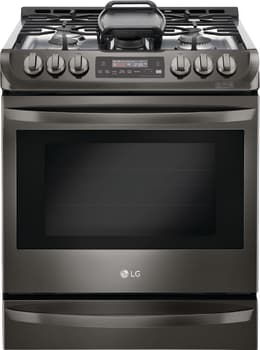

LG LSG4513BD - 30" Slide-in Gas Range with 5 Sealed Burners and 6.3 cu. ft. ProBake Convection Oven
LG LSG4513BD - 30" Slide-in Gas Range with 5 Sealed Burners and 6.3 cu. ft. ProBake Convection Oven
LG LSG4513BD - Control Console
LG LSG4513BD - 4 Primary Burners, 1 Center Oval Burner, and Included Griddle Accessory
+7
Watch
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LG LSG4513BD
Authorized
Dealer

LG LSG4513BD 30 Inch Slide-in Gas Range with 5 Sealed Burners, 6.3 cu. ft. Oven Capacity, ProBake Convection, Storage Drawer, 11 Cooking Modes, EasyClean®, SmartDiagnosis™, UltraHeat Burner™, Griddle, and ADA Compliant: Black Stainless Steel

quick specs
Sabbath Mode: No
Fingerprint Resistant: Yes
Cooktop: Sealed Burner
Drawer: Storage
Width: 29 7/8 Inch
Depth: 28 15/16 Inch
Height: 37 7/8 Inch
Number of Burners: 5
Primary Oven Capacity: 6.3 Cu. Ft.
Continuous Grates: Yes
Hot Surface Indicator Light: No
Induction: No
Convection: Yes
Self-Cleaning: Yes
Temperature Probe: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

Product Information
Brand: LG
Model: LSG4513BD
Warranty Terms: 1 year
?
Appearance
Fuel Type: Gas
Fuel Subtype: Natural Gas
Style: Slide-In
Color: Black Stainless Steel
Fingerprint Resistant: Yes
Stainless Steel Handle: Yes
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Digital and Knobs
Viewing Window: Yes
Double Oven: No
Drawer: Storage
Clock: Yes
Dimensions
Width: 29 7/8 Inch
Depth: 28 15/16 Inch
Height: 37 7/8 Inch
Interior Width: 24 7/8 Inch
Interior Depth: 20 Inch
Interior Height: 21 3/8 Inch
Shabbos Compliance
Sabbath Mode: No
Capacity
Number of Burners: 5
Primary Oven Capacity: 6.3 Cu. Ft.
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 18500
Burner 2 Output: 12000
Burner 3 Output: 10000
Burner 4 Output: 9100
Burner 5 Output: 5000
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: Griddle
Grill: No
Griddle: Yes
French Top: No
Electric Cooktop Features
Hot Surface Indicator Light: No
Induction: No
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Convection: Yes
Proof Mode: Yes
Self-Cleaning: Yes
Racks: 3
Temperature Probe: No
Broiler Element Location: Top
Interior Oven Light: Yes
Removable Door: Yes
Technical Details
ADA Compliant: No
Oven BTUs: 19,000
LP Conversion: Yes - Kit Included
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 048232335460
EAN: 0048232335460
Are you a Trade Pro? Join Now

Description

30 Inch Slide-in Gas Range with Convection
Cook like a pro with this gas range by LG. LG's UltraHeat™ 18,500 BTU burner delivers every bit of the precision you love about gas with even more power. No more waiting around to bring water and other liquids to a boil. Bring on your oversize roasts, your 24-pound-plus turkeys, your cavalcade of side dishes. If you can dream it, this huge 6.3 cu. ft. capacity oven can match your menu stride for stride. With this large capacity oven, you can conquer large meals with room to spare. No more getting burned by inconsistent baking. LG ProBake Convection® delivers even, precise heat on every rack, every time. Inspired by pro ranges, it's the first freestanding range with the heating element moved from the bottom of the oven to the back, so your cookies, cakes, roasts and more are perfectly browned every time.

In three easy steps and 10 quick minutes your oven can be sparkling clean, without strong chemical fumes or high heat. Simply spray the oven interior with water, press EasyClean® and then in 10 minutes, quickly wipe away any leftover grime. And you can still use the traditional self-clean cycle for the occasional deep clean. The range's leek, built-in look offers a streamlined custom appearance that enhances every kitchen decor and makes cooking a pleasure.

Specifications

COOKTOP SPECS
Number of Burners:
5
Left Rear:
9,100 BTU
Right Rear:
5,000 BTU
Left Front:
12,000 BTU
Right Front:
18,500 BTU
Center Oval:
10,000 BTU
Cooktop Finish:
Stainless Steel, Black Stainless Steel
Griddle:
Included
Cooktop Control Type:
Front Tilt-Control Knobs
OVEN SPECS
Oven Capacity:
6.3 cu. ft.
Broil Element:
14,500 BTU/hr. (nat. gas); 12,500 BTU/hr. (liq. pro.)
Convection Burner:
19,000 BTU/hr. (nat. gas); 17,000 BTU/hr. (liq. pro.)
Oven Cooking:
ProBake Convection®
Oven Cooking Modes:
Bake, Broil, Convection Bake, Convection Roast, Favorites, Multi-Rack Convection Baking, Delay Bake, Delay Clean, Proof, Warm, Pizza
Oven Control Features:
Glass Touch
Cleaning Methods:
10-Minute EasyClean®; Standard 2-/3-/5-Hour Self-Clean
Convection Conversion:
Subtracts 25°F/14°C from Standard Recipe Temperature
Go Cook Smart Oven Light:
1 Light
Number of Standard Racks:
3
Number of Rack Positions:
7
Door Lock:
Yes
Automatic Safety Shut-Off:
After 12 hours
CONTROL
Cooktop Control Type:
Front Tilt-Control Knobs
Oven Control Type:
Glass Touch (SmoothTouch™)
Display:
VFD
Language:
English
Smart Function:
NFC Tag On / SmartDiagnosis™
Clock:
12 hr. or 24 hr. (option)
Kitchen Timer:
Yes
Timed Cook:
Yes
Temperature Unit of Measure:
Fahrenheit / Celsius
Cooking Complete Reminder Volume:
Beeper (+,-)
GAS RANGE APPEARANCE
Color:
Stainless-Steel
Handle/Knobs:
STS Finish
Oven Door Feature:
WideView™ Window
Lower Drawer:
Storage Drawer
ACCESSORIES
Griddle Plate:
Yes
Standard Rack:
3
Spray Bottle:
Yes
Scouring Pad:
Yes
Conversion Kit:
Yes
POWER/RATINGS
Amp Rating at 208V:
4.2A
Amp Rating at 240V:
539W
KW Rating at 208V:
120 VAC
WARRANTY
Parts/Labor:
1 Year
STORAGE DRAWER DIMENSIONS
Interior Width:
22 3/16"
Interior Depth:
16 3/8"
Interior Height:
4 1/2"
OVEN DIMENSIONS
Interior Width:
24 7/8"
Interior Depth:
20"
Interior Height:
21 3/8"
DIMENSIONS & WEIGHT
Cabinet Width:
30"
Overall Width:
29 7/8"
Overall Depth with Handle:
28 15/16"
Height to Cooking Surface:
36"
Product Weight:
189 lbs.
Shipping Weight:
210 lbs.

Features

6.3 cu. ft. Large Capacity
  • An oversized roast, a 24-pound-plus turkey, a cavalcade of side dishes, this huge 6.3 cu. ft. capacity oven can match your menu stride for stride.
ProBake Convection®
  • Inspired by pro ranges, the heating element has been moved from the bottom of the oven to the back, so your cookies, cakes, roasts and more are perfectly browned every time.
Storage Drawer
  • Drawer frees up even more space in the kitchen.
11 Cooking Modes
  • Bake, Broil, Convection Bake, Convection Roast, Favorites, Multi-Rack Convection Baking, Delay Back, Delay Clean, Proof, Warm, Pizza
EasyClean® Self-Clean
  • Simply spray the oven interior with water, press EasyClean® and then, in 10 minutes, quickly wipe away any leftover grime.
  • You can still use the traditional self-clean cycle for the occasional deep clean.
SmartDiagnosis™
  • The SmartDiagnosis feature helps the service center diagnose problems with the range right over the phone or with a simple app on your smartphone, helping you minimize costly, inconvenient service calls.
UltraHeat™ 18,500 BTU Power Burner
  • No more waiting around to bring water and other liquids to a quick boil.
Griddle Accessory
  • The included griddle is perfect for making a big family breakfast, or for searing filets of meat.
Slide-in Design
  • With a depth that lines up with standard kitchen countertops, the LG gas slide-in range offers a streamlined custom appearance that enhances every kitchen decor and makes cooking a pleasure.
Other Features
  • SmoothTouch™ Glass
  • WideView
  • ADA Compliant
