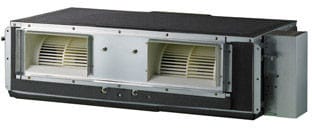

LG LHN247HV - Front View
LG LHN247HV - Front View

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LG LHN247HV
Authorized
Dealer

LG LHN247HV 24000 BTU Single Zone Ceiling-Concealed Ducted System with GoldFin™, ESP Control, Internal Condensate Pump, Timer, Auto Restart, Hot Start and Sleep Mode

Top Quality Store on Google

Indoor Units
Outdoor Unit
included items
24000 BTU Single Zone Ceiling-Concealed Ducted System Indoor Unit (LHN248HV)
• ESP Control, Internal Condensate Pump, Timer
24000 BTU Single Zone Ducted System Outdoor Unit (LUU249HV)
• GoldFin™, Inverter Technology, Soft Start
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: LG
Model: LHN248HV
Dimensions & Weights
Width: 35 7/16 Inch
Depth: 27 9/16 Inch
Height: 10 5/8 Inch
Net Weight: 58.6 Lbs.
Shipping Weight: 71.9 Lbs.
Capacity
Heating Capacity: 27,000 BTU
Cooling Capacity: 24,000 BTU
General
AC System Type: Mini Split
Component Type: Indoor Unit
Operation: Cooling with Heat Pump
Placement Type: Concealed Duct
Wireless Remote Control(s) Included: Optional
Wired Remote Control(s) Included: Optional
Thermostat Range - Cooling (F°): 65 - 86
Thermostat Range - Heating (F°): 61 - 86
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Rated Amps: 16.7 Amps
Performance
Fan: Sirocco
No. of Fans: 1
Motor: Brushless Digitally Controlled
Motor Drive: Direct
Moisture Removal (Pts/hr): 5.1 Pts./Hr.
Airflow Rate Low (CFM): 636 CFM
Airflow Rate Medium (CFM): 706 CFM
Airflow Rate High (CFM): 777 CFM
Operating Sound Level - Low (dB): 34 dB
Operating Sound Level - Medium (dB): 35 dB
Operating Sound Level - High (dB): 37 dB
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Liquid Line Outer Diameter: 3/8 Inch
Suction Line Outer Diameter: 5/8 Inch
Drain Line Outer Diameter: 1 1/4 Inch
Drain Line Inner Diameter: 1 Inch
Refrigeration System
Refrigerant Type: R-410A
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 24.6 Ft.
Max. Line Length - Total: 164 Ft.
Features
Control Lock Function (Concealed Duct Only): Yes
Hot Start Heating System (Heat Pumps Only): Yes
Program Timer: Yes
Air Filter: Yes
Filters Washable?: Yes
Filters Anti-microbial?: Yes
Sleep Mode: Yes
Self-diagnosis: Yes
Self-Cleaning Indoor Coil: No
Built-in Drain Pump (Indoor Unit): Yes
Surge Cool/Heat: No
Auto Operation: Yes
Auto Restart on Power Failure: Yes
Auto-changeover: Yes
4-Way Swing: No
No. of Fan Speeds: 3
WiFi Connected: No
Technical Details
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

24000 BTU Single Zone Ceiling-Concealed Ducted System Indoor Unit with ESP Control
Specifically designed to perform under an external static pressure of up to 0.59"WG, LG's ceiling-concealed ducted unit can operate both to in cooling or in heating mode. It is able to switch between modes in 3 minutes or less while maintaining proper indoor temperature. Enable smart capabilities of your unit with the optional WiFi module. An optional programmable controller allows 7-day scheduling for your unit. This unit also comes with a child lock and a built-in drain pump for added convenience.

Specifications

Airflow
Air supply outlet:
1
Airflow steps (fan/cool/heat):
3 / 3 / 3
Air Purifying
Triple filter:
No
Plasma air purifier:
No
Allergy Safe filter:
No
Long-life prefilter (washable / anti-fungus):
Yes
Installation
Drain pump:
Yes
E.S.P. control:
Yes
Reliability
Hot start:
Yes
Self diagnosis:
Yes
Convenience
Auto changeover:
O (Single Only)
Auto cleaning:
No
Auto operation(artificial intelligence):
Yes (Multi Only)
Auto Restart:
Yes
Child lock:
Yes
Forced operation:
Yes
Group control:
Yes
Sleep mode:
Yes
Timer(on/off):
Yes
Timer(weekly):
Yes
Two thermistor control:
Yes
Auto Elevation Grill:
No
Network Solution(LGAP):
Yes

Features

  • IESP Control
  • Internal Condensate Pump
  • Timer (On/Off)
  • Auto Restart
  • Hot Start
  • Sleep Mode
  • Inverter (variable speed fan)
  • Control Lock
  • Group Control
  • Washable Anti-fungal Filter
  • Weekly Schedule
  • Central Control (LGAP)
  • Optional Wi-Fi Control
  • Optional Auxilary Heater Relay Kit
  • Optional 7-Day Programmable Controller
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Engineering Manual
Submittal Sheet
SVC Manual
Warranty
Product Information
Brand: LG
Model: LUU249HV
Dimensions & Weights
Width: 37 13/32 Inch
Depth: 13 Inch
Height: 32 27/32 Inch
Net Weight: 130 Lbs.
Shipping Weight: 143.3 Lbs.
Capacity
Heating Capacity: 27,000 BTU
Cooling Capacity: 24,000 BTU
Min Connectable Capacity: 1 BTU
Max Connectable Capacity: 1 BTU
General
AC System Type: Mini Split
Component Type: Outdoor Unit
Operation: Cooling with Heat Pump
Min No. of Connectible Indoor Units: 1
Max No. of Connectible Indoor Units: 1
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Minimum Ampacity (Amps): 20 Amps
Max. TD Fuse/Breaker: 30 Amps
Power Input Cooling - Min. (Watts): 720 Watts
Power Input Cooling - Rated (Watts): 2,980 Watts
Power Input Cooling - Max. (Watts): 4,000 Watts
Power Input Heating - Min. (Watts): 580 Watts
Power Input Heating - Rated (Watts): 2,080 Watts
Power Input Heating - Max. (Watts): 3,100 Watts
Rated Amps: 13.5 Amps
Performance
Compressor Noise Level - Cooling (dB): 48 dB
Compressor Noise Level - Heating (dB): 52 dB
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Liquid Line Outer Diameter: 3/8 Inch
Suction Line Outer Diameter: 5/8 Inch
Drain Line Outer Diameter: 1 1/4 Inch
Drain Line Inner Diameter: 4 Inch
Power Supply Cable - No. x AWG: 3C x 12
Refrigeration System
Refrigerant Type: R-410A
Compressor Type: Twin Rotary
Refrigerant Control: EEV
Refrigerant Charge: 4.41 Ft.
Piping Length (No Additional Refrigerant): 24.6 Ft.
Max. Line Length - Total: 164 Ft.
Max. Height Diff. btwn. Indoor and Outdoor Units: 98.4 Ft.
Outside Temperature Range for Cooling - Min.: 5 °F
Outside Temperature Range for Cooling - Max.: 118 °F
Outside Temperature Range for Heating - Min.: -4 °F
Outside Temperature Range for Heating - Max.: 64 °F
Features
Inverter (Variable speed compressor): Yes
Corrosion Protection: Yes
Technical Details
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

24000 BTU Single Zone Ducted System Outdoor Unit with GoldFin™

Specifications

Overview
MOP (A):
30
MCA (A):
20
Cooling Rated Amps (A):
16.7
Heating Rated Amps (A):
16.7
Compressor(A):
13.5
Fan Motor (IDU + ODU) (A):
1.6 +1.6
Cooling Power Input (kW):
0.72 ~ 2.00 ~ 2.35
Heating Power Input (kW):
0.58 ~ 2.08 ~ 3.10
Operating Range
Cooling (°F DB):
5 to 118
Heating (°F WB):
-4 to 64
Fan
Fan Type:
Propeller
Fan Speeds (Fan/Cool/Heat):
3/3/3
Air Circulation (CFM):
2,048
Default ESP (in wg):
0.24
Minimum ESP/Fan Setting Value:
0.1/96
Maximum ESP/Fan Setting Value:
0.59/140

Features

Gold Fin Anti-Corrosion
  • The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period
Inverter (Variable Speed Compressor)
  • Unlike conventional air conditioners that cycle on and off, an inverter compressor ramps up or down to match the capacity and maintain comfort levels
Soft Start
  • To reduce power surges on the electrical system
Other Features
  • Defrost
  • Restart Delay
  • Self Diagnosis
  • Night Silent Operation
  • Mode Lock
  • Pump Down
  • Network Solution (LGAP)
