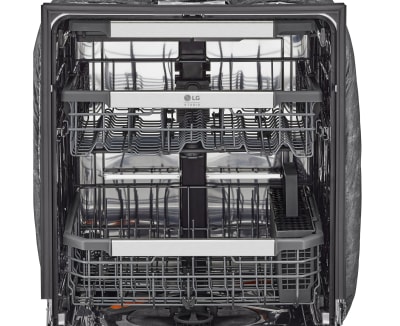

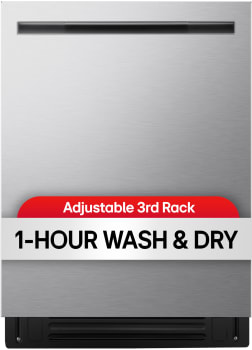

LG LDNPM654S - 24 Inch Fully Integrated Smart Dishwasher
LG LDNPM654S - 24 Inch Fully Integrated Smart Dishwasher
LG LDNPM654S - 24 Inch Fully Integrated Smart Dishwasher
LG LDNPM654S - 24 Inch Fully Integrated Smart Dishwasher
+7

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LG LDNPM654S
Authorized
Dealer

LG
LDNPM654S
24 Inch Fully Integrated Smart Dishwasher with 16 Place Settings, 5 Wash Cycles, 6 Wash Options, FlushFit™, 1-Hour Wash & Dry, QuadWash® Pro, Dynamic Heat Dry™, AutoVent Dry™, and ENERGY STAR® Qualified

Top Quality Store on Google
Only 7 left in stock
Sale
quick specs
Width: 23 3/4 Inch
Depth: 23 3/4 Inch
Height: 33 5/8 Inch
Capacity: 16 Place Settings
Control Type: Touchpad
Adjustable Upper Rack: Yes
Stainless Steel Interior: Yes
WiFi: Yes
Cycles: 5
Delay Start: Yes
Dry Type: Heated & Vented
High Temperature Wash: Yes
NSF Certified Rinse: Yes
Quick Wash Setting: Yes
Sensor Clean: Yes
Warranty Terms: 1 year
?
View more
$745.00
MSRP: $1,249.00
You save $504.00
OR
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
LG: 2-Year Warranty Via the LG ThinQ App Expires 12/31/2026 LG: Buy More Save More Up to $800 Instantly Expires 09/16/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: LG
Model: LDNPM654S
Warranty Terms: 1 year
?
Dimensions
Width: 23 3/4 Inch
Depth: 23 3/4 Inch
Height: 33 5/8 Inch
Cutout Width: 24 Inch
Cutout Depth: 24 Inch
Cutout Height: 33 5/8 Inch
Shabbos Compliance
Sabbath Mode: No
Capacity
Capacity: 16 Place Settings
Appearance
Type: Built In
Color: Stainless Steel
Accepts Panels: No
Features
Control Type: Touchpad
Electronic Display: Yes
Control Style: Full Console
Recessed Handles: Yes
Child Lock: Yes
Adjustable Upper Rack: Yes
Fold-Down Tines: Yes
Rack Material: Nylon
Cutlery Tray: Yes
Cup Shelves: Yes
Stemware Holder: Yes
Tall Tub: Yes
Stainless Steel Interior: Yes
Number of Spray Arms: 3
Rinse Aid Dispenser: Yes
Water Heating: Yes
Fingerprint Resistant: Yes
Interior Light: Yes
Auto Detergent Dispenser: Yes
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: Google, Alexa
Remote Access: Yes
Smart
WiFi: Yes
Alexa: Yes
Google Home: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
App Integration: ThinQ
AI Technology: No
Wash Features
Cycles: 5
Delay Start: Yes
Dry Type: Heated & Vented
Hard Food Disposer: No
High Temperature Wash: Yes
NSF Certified Rinse: Yes
Quick Wash Setting: Yes
Sanitize Cycle: No
Sensor Clean: Yes
Heavy Duty Cycle: Yes
Sound Level: 44 dB
Leak Protection: Yes
Steam Wash: Yes
Technical Details
Energy Star Rated: Yes
CEE Rating: Tier I
ADA Compliant: No
GTIN
UPC: 048231349178
Are you a Trade Pro? Join Now

Description

24 Inch Fully Integrated Smart Dishwasher with 16 Place Settings
Get the industry's leading 1-Hour Wash & Dry cycle with QuadWash® Pro and Dynamic Heat Dry™, delivering maximum cleaning coverage and thorough drying; faster than ever before. Spend less time waiting on dishes and more time on what matters.

Specifications

Capacity
Total Place Settings:
16
Upper Rack Dish Height Limit:
7.1"
Lower Rack Dish Height Limit:
12.5"
Racks and Baskets
Cutlery Baskets:
Yes
BPA-Free Nylon Coated Racks and Tines:
Yes
Fold Down Tines:
Upper: 3/4 Foldable, Lower: Half Smart FD & Half Normal FD
Height Adjustable:
Easy One Touch (3 Level)
Rack Handle / Deco:
Yes
Rack Color (Body / Tine):
Dark Grey
Cuprack / Steamware Holder:
Yes
Cuprack Color:
Cup Rack (Dark Grey) / Rubber (Nobe Grey)
Gliding Type:
Upper: Gliding Rail, Lower: Normal Wheel, 3rd Rack: Normal Rail
Style and Design
Control Panel Location:
Top Control
Control Panel Material:
ABS (Film Insert)
Touch Control:
Yes
Tub Material:
Stainless Steel
Handle:
Pocket Handle
All Available Colors:
Stainless Steel
Status Indicator:
Mood Light
Remaining Time indicator:
LED
Features
Steam:
Normal Steam
Spray Arm Color:
Pearl Dark Grey
Lower Wash Arm:
MAJ QuadWash™
Number of Spray Arms:
3 (Top, Upper, Lower)
Quad Arm Body:
Pearl Dark Grey
Nozzle Color:
Orange
Stainless Steel Deco:
Yes
SenseClean™ Wash System:
Yes
Vario Wash:
Yes
Detergent and Rinse-Aid Dispenser:
Yes
Drying System:
Dynamic Heat Dry with Auto Open Door
Number of Wash Cycles:
5 (Auto, Heavy, Normal, 1Hr, Download Cycle)
Number of Options:
6 (Steam, High Temp, Dry Boost, Delay Start,
End of Cycle Indicator:
Yes (Beeper + END indication on display)
Hidden Water Heater:
Yes
Safety Float Switch (Leaks):
Yes
Soil (Turbidity) Sensor:
Yes
DirectDrive Motor™:
Yes
LoDecibel™ Quiet Operation:
44 dBA
Tub Insulation:
Yes (Damping Sheet, Sound Absorbing Material)
BPA-Free Nylon Coated Racks and Tines:
Yes
Anti-Bacterial Treatment (Drain hose):
Yes
Balanced Door:
Yes
ThinQ® SMART FEATURES
Wi-Fi Enabled:
Yes
ThinQ:
Yes
Power Ratings
ENERGY STAR® Qualified:
Yes
Most Efficient Energy Star:
Yes
CEE Tier Level:
1
Energy Use (kWh/Year):
220 kWh/Year
Water Use (Gallons/Cycle):
2.9
Dimensions/ Clearances/ Weight
Product Dimensions (in) (W x D x H):
23 3/4" x 23 3/4" x 33 5/8"
Product Weight:
81.6 lbs
Depth with Door Closed with Handle (in):
23 3/4"
Depth with Door Open (in):
48 1/2"
Clearances (WxDxH):
24" x 24" x 33 5/8"
Carton Dimensions (in) (W x D x H):
28 1/32" x 29 5/8" x 34 7/8"
Limited Warranty
Labor & Parts:
1 Year
Control Board and Rack Parts Control Board and Rack Parts:
2 Years
Stainless Tub and Door Liner:
2 Years
Direct Drive Motor:
10 Years

Features

FlushFit™
  • Flush appliance installation is among the hottest kitchen trends, but rest assured the sleek, integrated design of this LG dishwasher will remain timeless. LG fits your space while fitting an impressive 16 place settings in a single load. It's an instant
1-Hour Wash & Dry
  • LG's exclusive QuadWash® Pro and Dynamic Heat Dry™ technologies combine to deliver our leading 1-hour wash and dry cycle for sparkling, table-ready dishes in less time.
QuadWash® Pro
  • High-pressure jets with 38% more cleaning power, spray dishes from multiple angles, while soaking them with over one million microbubbles to help break down stubborn food residue and provide exceptional cleaning performance.
Dynamic Heat Dry™
  • Dynamic Heat Dry™ uses powerful heated airflow to remove moisture from every dish.
AutoVent Dry™
  • AutoVent™ Dry automatically opens the door slightly at the end of the cycle to let fresh air in—so dishes come out sparkling, dry, and ready to use right off the rack.
5 Wash Cycles
  • Auto, Heavy, Normal, 1Hr, Download Cycle
6 Wash Options
  • Steam, High Temp, Dry Boost, Delay Start, Control Lock, Remote, Wi-Fi (AP Mode)
EasyRack Plus®
  • Lets you fit more dishes, run fewer loads and make short work of after-dinner cleanup. With three height settings, the upper rack adjusts effortlessly and smoothly to make room for tall stemware on top or oversize pans below.
LoDecibel™ Operation
  • Now you can run the dishwasher whenever you want—day or night. The 46 dB cleaning cycle is whisper-quiet, so you won’t have to worry about interrupting post-dinner-party conversations or naptime.
Floor Status Indicator
  • Floor status indicator projects a white light onto the floor just in front of the door to let you know when the cycle is finished.
Additional Feature
  • 16 Place Settings
  • ENERGY STAR® Qualified
Key Features
AutoVent Dry™
Say goodbye to damp dishes. With AutoVent Dry™, the LG dishwasher automatically opens the door at the end of the cycle to release steam and circulate fresh air. This smart feature helps improve drying performance, so even plastics come out cabinet-ready—no towel required.
Dynamic Heat Dry™
Dynamic Heat Dry™ technology is an advanced drying system featured in LG dishwashers. It uses a high-efficiency drying method that circulates hot air to ensure dishes come out spotlessly clean and completely dry.
EasyRack™ Plus
Enjoy more flexibility and convenience with the EasyRack™ Plus system. It adjusts to just about any load of dishes to help ensure optimal cleaning performance. With one touch, you can change the height of the upper rack to three different levels.
FlushFit™ Design
Elevate your kitchen in an instant. The LG STUDIO FlushFitᵀᴹ dishwasher delivers a sleek, built-in look with flawless design and the capacity for 16 place settings. Seamless on the outside. Powerful on the inside.
LoDecibel™ Operation
With LoDecibel™ Operation, the dishwasher runs so quietly, all you’ll hear is the conversation.
QuadWash™ Pro
The QuadWash™ Pro is a cutting-edge dishwasher designed to deliver exceptional cleaning performance and flexibility for modern kitchens.
SenseClean™ Wash System
SenseClean™ Wash System automatically adjusts water and wash time for optimal cleaning and energy savings.
ThinQ®
The ThinQ app provides seamless control and convenience for LG smart appliances, making everyday tasks easier and enhancing home comfort.
