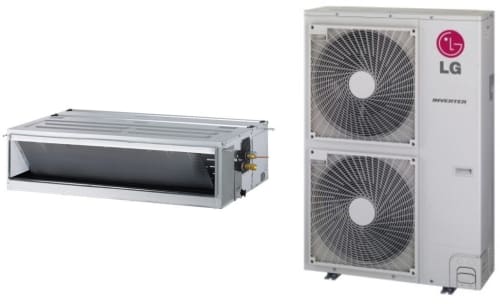

LG KSUJB361A - 36,000 BTU Single Zone Mini Split System
LG KSUJB361A - 36,000 BTU Single Zone Mini Split System
LG KSUJB361A - 40,000 BTU Single Zone Outdoor LGRED™ Multi-Position Air Handling Unit with R32 Leak Detection Sensor

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LG KSUJB361A
Authorized
Dealer

LG
KSUJB361A
36,000 BTU Single Zone Mini Split System with R32 Leak Detection Sensor, Self Diagnosis, Soft Dry Operation, and Inverter Variable Speed Compressor

Top Quality Store on Google
included items
36,000 BTU Mid Static Ducted Indoor Unit (KNUJB361A)
• R32 Leak Detection Sensor, Self Diagnosis, Soft Dry Operation
40,000 BTU Single Zone Outdoor Multi-Position Air Handling Unit (KUSXB361A)
• R32 Leak Detection Sensor, Self Diagnosis, Soft Dry Operation
To order or learn more please call us at:
800-570-3355
FREE Delivery Available
Protect Your Purchase
+$250
- 30% Cash Back! +$350
Have questions? Chat with us!
Product Information
Brand: LG
Series: Multi F Series
Model: KNUJB361A
Dimensions & Weights
Width: 49 3/16 Inch
Depth: 27 1/4 Inch
Height: 10 5/8 Inch
Net Weight: 85.3 Lbs.
Shipping Weight: 98.3 Lbs.
Capacity
Heating Capacity: 40,000 BTU
Cooling Capacity: 36,000 BTU
General
AC System Type: Mini Split
Component Type: Indoor Unit
Operation: Cooling with Heat Pump
Thermostat Range - Cooling (F°): 57-77
Thermostat Range - Heating (F°): 59-81
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Rated Amps: 2.3 Amps
Performance
Fan: Sirocco
Motor: Brushless Digitally Controlled
Energy Star Certified: No
Moisture Removal (Pts/hr): 7.17 Pts./Hr.
Airflow Rate Low (CFM): 848 CFM
Airflow Rate Medium (CFM): 989 CFM
Airflow Rate High (CFM): 1,130 CFM
Operating Sound Level - Quiet (dB): 33 dB
Operating Sound Level - Low (dB): 34 dB
Operating Sound Level - Medium (dB): 36 dB
Temperature Sensor: Thermistor
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 1 Ft.
Features
Program Timer: Yes
Sleep Mode: Yes
Self-diagnosis: Yes
Soft Start: Yes
Quiet/Sleep Mode: Yes
Auto Restart on Power Failure: Yes
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

36,000 BTU Multi F Mid Static Ducted Indoor Unit
The LG Multi F R32 Wall Console Indoor Unit (36,000 Btu/h) offers efficient heating and cooling for residential and light commercial spaces. Designed for use with LG's Multi F outdoor units, it features eco-friendly R32 refrigerant, quiet operation, and a sleek, compact design. The unit provides powerful performance with advanced airflow control, ensuring optimal comfort and energy efficiency.

Specifications

Performance
Nominal Cooling Capacity (Btu/h):
36,000
Nominal Heating Capacity (Btu/h):
40,000
Electrical
Power Supply (V/Hz/Ø)¹,²:
208-230 / 60 / 1
Rated Amps (A):
2.3
Piping
Installed Liquid Pipe (in., O.D.):
ø3/8
Installed Vapor Pipe (in., O.D.):
ø5/8
Liquid Connection (in., O.D.):
ø3/8
Vapor Connection (in., O.D.):
ø5/8
Drain (in., O.D. / I.D.):
1-1/4 / 1
Temperature Sensor:
Thermistor
Entering Mixed Air
Cooling (°F WB):
57 ~ 77
Heating (°F DB):
59 ~ 81
Unit Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Sound Pressure (H/M/L) dB(A)³:
36 / 34 / 33
Primary Filter:
Washable Pre-filter
Net Weight (lbs.):
85.3
Shipping Weight (lbs.):
98.3
Fan
Type:
Sirocco
Quantity:
1
Motor/Drive:
Brushless Digitally Controlled / Direct
Air Flow H/M/L (CFM):
1,130 / 989 / 848
External Static Pressure4,5 (in wg):
0.24
Minimum External Static Pressure:
0.1
Maximum External Static Pressure:
0.59
Dehumidification (pts./hr.):
7.17
Dimension and Weight
Width:
49 3/16”
Depth:
27 1/4"
Height:
10 5/8“
Weight:
85.3 lbs.

Features

R32 Leak Detection Sensor
  • Monitors refrigerant levels to ensure safety and efficiency by detecting leaks early and triggering alerts.
Self Diagnosis
  • Automatically identifies and displays system errors, simplifying maintenance and troubleshooting for quick issue resolution.
Soft Dry Operation
  • Reduces humidity effectively without overcooling, maintaining a comfortable indoor environment.
Inverter Variable Speed Compressor
  • Adjusts compressor speed dynamically to optimize energy efficiency, reduce noise, and maintain consistent indoor comfort.
Other Features
  • Long-Life Washable Pre Filter
  • Hot Start
  • Auto Operation
  • Auto Restart
  • Sleep Mode
  • Timer (on/off/weekly)
  • Drain Pump
  • ESP Control
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Product Information
Brand: LG
Series: Multi F LG RED
Model: KUSXB361A
Dimensions & Weights
Width: 37 19/48 Inch
Depth: 13 Inch
Height: 54 17/48 Inch
Net Weight: 190.2 Lbs.
Shipping Weight: 214.3 Lbs.
Capacity
Heating Capacity: 40,000 BTU
Cooling Capacity: 36,000 BTU
Min Connectable Capacity: 16,000 BTU
Max Connectable Capacity: 42,000 BTU
General
AC System Type: Mini Split
Component Type: Outdoor Unit
Operation: Cooling with Heat Pump
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Running Current Cooling - Rated (Amps): 32 Amps
Running Current Heating - Rated (Amps): 26 Amps
Minimum Ampacity (Amps): 35 Amps
Max. TD Fuse/Breaker: 32 Amps
Performance
Compressor Noise Level - Cooling (dB): 35 dB
Compressor Noise Level - Heating (dB): 54 dB
Energy Star Certified: Yes
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 24.6 Ft.
Min. Line Length - Each: 16.4 Ft.
Max. Line Length - Total: 246 Ft.
Max. Height Diff. btwn. Indoor and Outdoor Units: 98.4 Ft.
Outside Temperature Range for Cooling - Min.: 5 °F
Outside Temperature Range for Cooling - Max.: 118 °F
Outside Temperature Range for Heating - Min.: -4 °F
Outside Temperature Range for Heating - Max.: 64 °F
Features
Sleep Mode: Yes
Inverter (Variable speed compressor): Yes
Corrosion Protection: Yes
No. of Fan Speeds: 3
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

40,000 BTU Single Zone Outdoor LGRED™ Multi-Position Air Handling Unit
The 40,000 BTU Single Zone Outdoor LGRED™ Multi-Position Air Handling Unit with R32 Leak Detection Sensor from LG delivers robust heating and cooling for residential and light commercial applications. Featuring LGRED° (Reliable to Extreme Degrees) technology, it ensures exceptional performance even in extreme cold conditions. The multi-position design allows flexible installation, while the R32 refrigerant with leak detection enhances safety and environmental sustainability. Ideal for maintaining year-round comfort and energy efficiency.

Specifications

Performance
Cooling Capacity:
36,000
SEER2:
22.0
EER2:
11.80
Heating Capacity:
40,000
HSPF2:
10.3
Electrical
Power Supply (V¹/Hz/Ø):
208-230/60/1
MOP (A):
35
MCA (A):
32
Cooling / Heating Rated Amps (A):
26.2 / 26.2
Compressor (A):
22
Fan Motor (IDU + ODU) (A):
3.4 + (1.6 x 2)
Cooling Power Input (Min~Rated~Max, kW):
0.72~2.77~3.90
Heating Power Input (Min~Rated~Max, kW:
0.80~2.75~4.05
Locked Rotor Amps (A):
22
Piping
Liquid Line (in., O.D.):
3/8
Vapor Line (in., O.D.):
5/8
IDU Liquid Connection (in., O.D.):
3/8
IDU Vapor Connection (in., O.D.):
5/8
Additional Refrigerant (oz./ft.):
0.43
Min. / Max. Pipe Length (ft.)²:
16.4 / 264
Piping Length (no add’l refrig., ft.):
24.6
Max. Elevation (ft.):
98.4
Operating Range Outdoor Unit
Cooling (°F DB):
5 ~ 118
Heating (°F WB):
-4~ +64
System Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Refrigerant Charge (lbs.):
106
IDU Sound Pressure
(Cooling / Heating) (±1 dB[A])⁵:
44/42/41
IDU Net / Shipping Weight (lbs.):
56.4 / 70.5
Heat Exchanger Coating:
GoldFin™
Fan
ODU Type:
Turbo
Fan Speeds (Fan/Cool/Heat):
3 / 3 / 3
Quantity (ODU + IDU):
2 + 1
Motor/Drive:
Brushless Digitally Controlled/Direct
Maximum ODU Air Volume (CFM):
1,942 x 2
IDU Air Flow (CFM Max. H/M/L):
1,050 / 980 / 900
Default ESP (in wg):
0.4
Minimum ESP/Fan Setting Value⁶:
0.1 / 50
Maximum ESP/Fan Setting Value⁶:
1.0 / 111
Dehumidification (pts./hr.):
7.17
Dimension and Weight
Width:
37 13/32“
Depth:
23 27/32“
Height:
54 11/32
Weight:
190.2 lbs.
Shipping Weight:
214.3 lbs.

Features

R32 Leak Detection Sensor
  • Monitors refrigerant levels and alerts you to potential leaks, enhancing safety and efficiency.
Auto Restart
  • Automatically resumes operation with previous settings after a power outage, ensuring uninterrupted comfort.
Sleep Mode
  • Gradually adjusts temperature for a comfortable sleep environment while conserving energy.
Timer (on/off/weekly)
  • Allows you to schedule heating or cooling to match your routine, optimizing convenience and energy use.
Two Thermistor Control
  • Ensures precise temperature management by monitoring indoor conditions for consistent comfort.
Child Lock
  • Prevents accidental setting changes, providing safety and peace of mind for families.
Other Features
  • Inverter (Variable Speed Compressor)
  • Hot Start
  • Self Diagnosis
  • Soft Dry Operation
  • Auto Changeover
  • Auto Operation
  • Optional Wi-Fi Control
  • ESP Control
