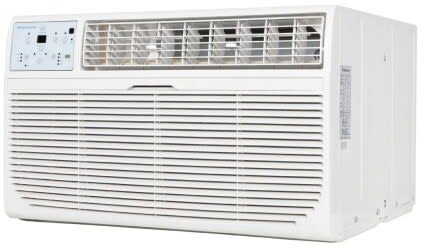

KeyStone KSTAT121E - 12,000 BTU Through The Wall Air Conditioner
KeyStone KSTAT121E - 12,000 BTU Through The Wall Air Conditioner
KeyStone KSTAT121E - 12,000 BTU Through The Wall Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
KeyStone KSTAT121E
Authorized
Dealer

KeyStone
KSTAT121E
12,000 BTU Through The Wall Air Conditioner with 550 Sq Ft Cooling Area, 2.77 EER, 3 Fan Speed, Energy Saving Mode, Programmable Timer, Remote Control and 1 Year Warranty Included

Top Quality Store on Google
quick specs
Width: 24 1/4 Inch
Depth: 14 1/2 Inch
Height: 20 1/4 Inch
Cooling Capacity (BTU): 12,000 BTU
CFM Room Circulation: 282 CFM
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Chassis Type: Thru the Wall
Control Type: Digital
Remote Control Included: Yes
Plug Type: 5-15P
View more
$599.99
MSRP: $649.99
You save $50.00
OR
Have questions? Chat with us!
Product Information
Brand: KeyStone
Model: KSTAT121E
Dimensions
Width: 24 1/4 Inch
Depth: 14 1/2 Inch
Height: 20 1/4 Inch
Capacity
Cooling Capacity (BTU): 12,000 BTU
CFM Room Circulation: 282 CFM
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
Features
Type: Wall
Chassis Type: Thru the Wall
Maximum Cooling Amps: 11.04 Amps
Maximum Cooling Watts: 1,270 Watts
Heat: No
Energy Efficiency Rating: 2.77
Control Type: Digital
Remote Control Included: Yes
PTAC: No
Window Type: Standard
Sleep Mode: Yes
Indoor CFM, High: 282 CFM
Indoor CFM, Low: 232 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 5-15P
Voltage: 115 Volts
Are you a Trade Pro? Join Now

Description


At Keystone, your family’s comfort starts here. Keystone offers a full assortment of budget-friendly home climate solutions for every room in
the house. Whatever your needs – window air conditioners, inverter air conditioners, thru-the-wall air conditioners, portable air conditioners, or
Dehumidifiers – Keystone has the perfect unit for you. We even have AC models with heating options! Keystone’s assortment of flexible units come
with numerous features that allow you to customize your comfort fully. When it comes to home climate solutions, Keystone has you covered.

Specifications

Overview
Cooling Capacity:
12000 BTU
Dehumidification (pints/hour):
2.5
Cooling Area:
550-sq. ft.
EER:
2.77
CEER:
9.5
Volts:
115V
Amps:
11.04
Watts:
1270
Power Cord Length (Feet):
7.02
Plug Type (NEMA):
LCDI(5-15P)
Control Type:
Electronic
Number of Fan Speeds:
3
Energy Saving Mode:
Yes
Sleep Mode:
Yes
Check Filter Indicator:
Yes
Programmable Timer:
Yes
Energy Star Rated:
No
Remote Control:
Yes
Air CFM (Hi/Med/Lo):
282.94/258.82/232.94
Air Direction Control:
4-Way
Filter Type:
Washable
Warranty:
1 Yr parts & labor/5 Yr sealed system
Indoor Noise Level (Hi/Med/Lo):
59/56.8/55.3
Refrigerant:
R32/0.50 g
Product Dims (WxHxD) inches:
24.21x20.28x14.53
Product Weight (lbs):
72.97
Shipping Dims (WxHxD) inches:
27.95x26.57x16.93
Shipping Weight (lbs):
85.05

Features

Cooling Capacity
  • 12,000 BTU — ideal for rooms up to 550 square feet.
Energy Efficiency
  • EER (Energy Efficiency Ratio) is 2.77
Installation Type
  • Through-the-wall installation (not suitable for standard window installation)
Airflow & Comfort
  • 3 fan speeds and 4-way air direction control for customized airflow
  • Dehumidification function removes up to 2.5 pints of moisture per hour
Digital Controls
  • LED display with electronic controls
  • Remote control included for added convenience
  • Programmable 24-hour timer and sleep mode
Smart Features
  • Auto-restart after power outages
  • Energy Saver mode cycles the fan on and off to maintain room temperature
Filter System
  • Washable, easy-access mesh filter with a check filter alert to maintain air quality
Noise Level
  • Operates at around 60 dB, offering relatively quiet operation for its size
Electrical Requirements
  • Uses a standard 115V outlet
  • LCDI plug for safety
