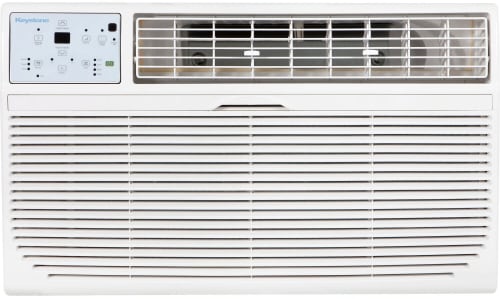

KeyStone KSTAT102HD - 10,000 BTU Through the Wall Air Conditioner with 450 Sq. Ft. Cooling Area
KeyStone KSTAT102HD - 10,000 BTU Through the Wall Air Conditioner with 450 Sq. Ft. Cooling Area
KeyStone KSTAT102HD - 10,000 BTU Through the Wall Air Conditioner
KeyStone KSTAT102HD - 10,000 BTU Through the Wall Air Conditioner
+10

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
KeyStone KSTAT102HD
Authorized
Dealer

KeyStone
KSTAT102HD
10,000 BTU Through the Wall Air Conditioner with 10,600 BTU Heat Pump, 3 Fan Speed, Electronic Control, Sleep Mode, Washable Filter, Remote Control, and 450 Sq. Ft. Cooling Area

quick specs
Width: 24 13/64 Inch
Depth: 20 19/64 Inch
Height: 14 1/2 Inch
Cooling Capacity (BTU): 10,000 BTU
Heating Capacity (BTU): 10,600 BTU
CFM Room Circulation: 287 CFM
WiFi: No
Wall Sleeve Included: No
Control Type: Digital
Remote Control Included: Yes
Plug Type: 6-20P
View more
$569.99
MSRP: $599.99
You save $30.00
OR
In stock
Have questions? Chat with us!
Product Information
Brand: KeyStone
Model: KSTAT102HD
Dimensions
Width: 24 13/64 Inch
Depth: 20 19/64 Inch
Height: 14 1/2 Inch
Capacity
Heating Capacity (BTU): 10,600 BTU
CFM Room Circulation: 287 CFM
Smart
WiFi: No
Features
Type: Wall
Wall Sleeve Included: No
Maximum Cooling Amps: 4.6 Amps
Maximum Cooling Watts: 1,020 Watts
Maximum Heating Amps: 15 Amps
Maximum Heating Watts: 3,450 Watts
Heat: Heat Pump
Energy Efficiency Rating: 9.6
Control Type: Digital
Remote Control Included: Yes
PTAC: No
Sleep Mode: Yes
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Plug Type: 6-20P
Voltage: 230 Volts
Are you a Trade Pro? Join Now

Description

10,000 BTU Through the Wall Air Conditioner with 10,600 BTU Heat Pump
Keystone's reliable through-the-wall air conditioning units offer consistent cooling and enhanced comfort, even during the hottest days. With easy through-the-wall installation, this 10,000 BTU air conditioner provides efficient cooling for rooms up to 450 square feet, while the dehumidification feature removes up to 2.3 pints of moisture per hour, improving air quality. Designed for smaller living spaces such as apartments, dorm rooms, and sheds, this unit also offers supplemental heating capacity of 10,600 BTU. The supplemental heating mode is intended for use when outdoor temperatures range from 23 to 76 degrees Fahrenheit and is not meant to serve as a primary heat source. Equipped with a unique remote control, this unit features a built-in thermostat that accurately senses the room temperature, displaying it on the remote's LCD screen, and communicates with the AC unit every 3 minutes to ensure precise cooling. Energy-saving options such as the energy saver mode, sleep mode, and programmable 24-hour timer help reduce electricity costs. The Check Filter alert reminds you to clean the easily removable mesh filter, ensuring optimum performance. Please note that this unit requires a special 230-volt/20-amp electrical outlet and is incompatible with a standard 115V household electrical outlet.

Specifications

Performance
Cooling Capacity:
10,000 BTU
Heating Pump:
10,600 BTU/h
Cooling Area:
450 sq. ft.
EER:
9.6
Features
Control Type:
Electronic
Number of Fan Speeds:
3
Energy Saving Mode:
Yes
Sleep Mode:
Yes
Filter Alert:
Yes
Programmable Timer:
Yes
Remote Included:
Yes
Installation Type:
Through the Wall
Filter Type:
Washable
Air Flow (CFM):
287
Air Direction Control:
4-Way
Indoor Noise Level dBA:
58
Power Cord Length (Feet):
6.5
Plug Type:
NEMA 6-15P
Warranty
Parts and Labor:
1-Year
Electrical
Volts:
230V / 60Hz
Cooling Amps:
4.6A
Cooling Watts:
1020W
Heating Amps:
15A
Heating Watts:
3450W
Dimension and Weight
Width:
24 13/64 Inches
Depth:
20 19/64 Inches
Height:
14 1/2 Inches
Product Weight (lbs.):
69 lbs.

Features

450 Sq. Ft. Cooling Area
  • Ideal for making your living space comfortable
Electronic Control
  • Allows you to easily select options with the touch of a button
Washable Filter
  • A clean filter alert conveniently notifies you to clean the unit's washable filter to ensure it keeps running efficiently
Remote Control
  • The remote takes the temperature of the room you are in, displays it on the LCD screen and sends a signal to your air conditioner for windows every 3 minutes for accurate cooling
Other Features
  • 3 Fan Speed
  • 3 Cooling Speed
  • Sleep Mode
  • Auto Restart
  • Space Saving Design
  • Energy Saver Mode
  • Check Filter Alert
  • UL Listed
  • 1-Year Warranty
