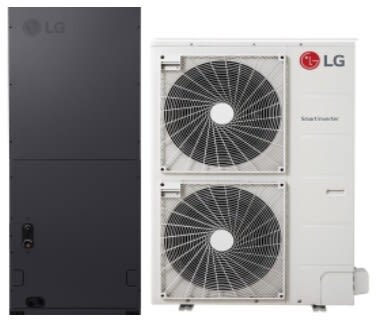

LG KSSLA361A - 33,000 BTU Single Zone Mini Split Unit
LG KSSLA361A - 33,000 BTU Single Zone Mini Split Unit
LG KSSLA361A - 33,000 BTU Single Zone LGRED™ Multi-Position Air Handling Unit with R32 Leak Detection Sensor

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LG KSSLA361A
Authorized
Dealer

LG
KSSLA361A
36,000 BTU Single Zone Mini Split Unit with R32 Leak Detection Sensor, Auto Restart, Sleep Mode, On/Off Timer, Two Thermistor Control, Child Lock and Energy Star Certified

Top Quality Store on Google
included items
33,000 BTU Single Zone Multi-Position Air Handling Unit (KNSLA361A)
• R32 Leak Detection Sensor, Auto Restart, Sleep Mode
40,000 BTU Single Zone Multi-Position Outdoor Unit (KUSXA361A)
• R32 Leak Detection Sensor, Auto Restart, Sleep Mode
To order or learn more please call us at:
800-570-3355
FREE Delivery Available
Protect Your Purchase
+$250
- 30% Cash Back! +$350
Have questions? Chat with us!
Product Information
Brand: LG
Series: Multi F LG RED
Model: KNSLA361A
Dimensions & Weights
Width: 19 1/32 Inch
Depth: 21 3/8 Inch
Height: 55 3/16 Inch
Net Weight: 146 Lbs.
Shipping Weight: 160 Lbs.
Capacity
Heating Capacity: 40,000 BTU
Cooling Capacity: 33,000 BTU
General
AC System Type: Mini Split
Component Type: Indoor Unit
Wireless Remote Control(s) Included: Included
Wired Remote Control(s) Included: Optional
Thermostat Range - Cooling (F°): 57-77
Thermostat Range - Heating (F°): 59-81
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Performance
Fan: Sirocco
Motor: Brushless Digitally Controlled
Energy Star Certified: Yes
Moisture Removal (Pts/hr): 6.9 Pts./Hr.
Airflow Rate Low (CFM): 900 CFM
Airflow Rate Medium (CFM): 980 CFM
Airflow Rate High (CFM): 1,050 CFM
Operating Sound Level - Low (dB): 37 dB
Operating Sound Level - Medium (dB): 37 dB
Operating Sound Level - High (dB): 40 dB
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 24.6 Ft.
Min. Line Length - Each: 16.4 Ft.
Max. Line Length - Total: 246 Ft.
Features
Program Timer: Yes
Sleep Mode: Yes
Soft Start: Yes
Quiet/Sleep Mode: Yes
Auto-changeover: Yes
No. of Fan Speeds: 3
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

33,000 BTU Single Zone LGRED™ Multi-Position Air Handling Unit with R32 Leak Detection Sensor
The 33,000 BTU Single Zone LGRED™ Multi-Position Air Handling Unit with R32 Leak Detection Sensor from LG offers powerful and efficient heating and cooling for residential and light commercial spaces. Featuring LGRED° (Reliable to Extreme Degrees) technology, it delivers superior heating performance even in extreme cold conditions. The multi-position design ensures flexible installation, while the R32 refrigerant with leak detection enhances safety and eco-friendliness. Ideal for maintaining optimal comfort and energy efficiency year-round.

Specifications

Performance
Cooling Capacity:
33,000
SEER2:
18.20
EER2:
13
Heating Capacity:
40,000
HSPF2:
9.60
Electrical
Power Supply (V¹/Hz/Ø):
208-230/60/1
MOP (A):
35
MCA (A):
32
Cooling / Heating Rated Amps (A):
11.1 / 13.5
Compressor (A):
22
Fan Motor (IDU + ODU) (A):
3.4 + (1.6 x 2)
Cooling Power Input (kW) (Min~Rated~Max @95°F) (kW):
0.81 ~ 2.54 ~ 4.78
Heating Power Input (kW) (Min~Rated~Max @47°F) (kW):
0.96 ~ 3.09 ~ 4.10
Locked Rotor Amps (A):
22
Piping
Liquid Line (in., O.D.):
3/8
Vapor Line (in., O.D.):
5/8
IDU Liquid Connection (in., O.D.):
3/8
IDU Vapor Connection (in., O.D.):
5/8
Additional Refrigerant (oz./ft.):
0.43
Min. / Max. Pipe Length (ft.)²:
16.4 / 246
Piping Length (no add’l refrig., ft.):
24.6
Max. Elevation (ft.):
98.4
Operating Range Indoor Unit
Cooling (°F DB):
57 ~ 77
Heating (°F WB):
59 ~ 81
System Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Refrigerant Charge (lbs.):
106
IDU Sound Pressure
(H/M/L) (±1 dB[A])⁵:
40 / 37 / 35
IDU Net / Shipping Weight (lbs.):
146 / 160
Heat Exchanger Coating:
GoldFin™
Fan
IDU Type:
Cross Flow
Fan Speeds (Fan/Cool/Heat):
3 / 3 / 3
Quantity (ODU + IDU):
2 + 1
Motor/Drive:
Brushless Digitally Controlled/Direct
Maximum ODU Air Volume (CFM):
1,942 x 2
IDU Air Flow (CFM Max. H/M/L):
1,050 / 980 / 900
Default ESP (in wg):
0.4
Minimum ESP/Fan Setting Value⁶:
0.1 / 54
Maximum ESP/Fan Setting Value⁶:
1.0 / 112
Dehumidification (pts./hr.):
6.9
Dimension and Weight
Width:
19 1/32”
Depth:
21 3/8“
Height:
55 3/16“
Weight:
146 lbs.

Features

R32 Leak Detection Sensor
  • Monitors refrigerant levels and alerts you to potential leaks, enhancing safety and efficiency.
Auto Restart
  • Automatically resumes operation with previous settings after a power outage, ensuring uninterrupted comfort.
Sleep Mode
  • Gradually adjusts temperature for a comfortable sleep environment while conserving energy.
Timer (on/off/weekly)
  • Allows you to schedule heating or cooling to match your routine, optimizing convenience and energy use.
Two Thermistor Control
  • Ensures precise temperature management by monitoring indoor conditions for consistent comfort.
Child Lock
  • Prevents accidental setting changes, providing safety and peace of mind for families.
Other Features
  • Inverter (Variable Speed Compressor)
  • Hot Start
  • Self Diagnosis
  • Soft Dry Operation
  • Auto Changeover
  • Auto Operation
  • Optional Wi-Fi Control
  • ESP Control
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Product Information
Brand: LG
Series: Multi F LG RED
Model: KUSXA361A
Dimensions & Weights
Width: 37 19/48 Inch
Depth: 13 Inch
Height: 54 17/48 Inch
Net Weight: 190 Lbs.
Shipping Weight: 200 Lbs.
Capacity
Heating Capacity: 40,000 BTU
Cooling Capacity: 33,000 BTU
Min Connectable Capacity: 16,000 BTU
Max Connectable Capacity: 43,000 BTU
General
AC System Type: Mini Split
Component Type: Outdoor Unit
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Running Current Cooling - Rated (Amps): 11.1 Amps
Running Current Heating - Rated (Amps): 13.5 Amps
Minimum Ampacity (Amps): 35 Amps
Max. TD Fuse/Breaker: 32 Amps
Performance
Compressor Noise Level - Cooling (dB): 35 dB
Compressor Noise Level - Heating (dB): 52 dB
Energy Star Certified: Yes
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 3 Ft.
Max. Height Diff. btwn. Indoor and Outdoor Units: 98.4 Ft.
Outside Temperature Range for Cooling - Min.: 5 °F
Outside Temperature Range for Cooling - Max.: 118 °F
Outside Temperature Range for Heating - Min.: -13 °F
Outside Temperature Range for Heating - Max.: 64 °F
Features
Sleep Mode: Yes
WiFi Connected: Yes
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

40,000 BTU Single Zone Multi-Position Outdoor Unit
The LG KUSXA361A is a 36,000 BTU outdoor heat pump unit designed for single-zone applications, utilizing R-32 refrigerant.

Specifications

Performance
Cooling Capacity:
33,000
SEER2:
18.20
EER2:
13
Heating Capacity:
40,000
HSPF2:
9.60
Electrical
Power Supply (V¹/Hz/Ø):
208-230/60/1
MOP (A):
35
MCA (A):
32
Cooling / Heating Rated Amps (A):
11.1 / 13.5
Compressor (A):
22
Fan Motor (IDU + ODU) (A):
3.4 + (1.6 x 2)
Cooling Power Input (kW) (Min~Rated~Max @95°F) (kW):
0.81 ~ 2.54 ~ 4.78
Heating Power Input (kW) (Min~Rated~Max @47°F) (kW):
0.96 ~ 3.09 ~ 4.10
Locked Rotor Amps (A):
22
Piping
Liquid Line (in., O.D.):
3/8
Vapor Line (in., O.D.):
5/8
IDU Liquid Connection (in., O.D.):
3/8
IDU Vapor Connection (in., O.D.):
5/8
Additional Refrigerant (oz./ft.):
0.43
Min. / Max. Pipe Length (ft.)²:
16.4 / 246
Piping Length (no add’l refrig., ft.):
24.6
Max. Elevation (ft.):
98.4
Operating Range Outdoor Unit
Cooling (°F DB):
5-118
Heating (°F WB):
-13-64
System Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Refrigerant Charge (lbs.):
106
ODU Sound Pressure
(H/M/L) (±1 dB[A])⁵:
52 / 54
ODU Net / Shipping Weight (lbs.):
190.2 / 214.3
Heat Exchanger Coating:
GoldFin™
Fan
ODU Type:
Propeller
Fan Speeds (Fan/Cool/Heat):
3 / 3 / 3
Quantity (ODU + IDU):
2 + 1
Motor/Drive:
Brushless Digitally Controlled/Direct
Maximum ODU Air Volume (CFM):
1,942 x 2
Default ESP (in wg):
0.4
Minimum ESP/Fan Setting Value⁶:
0.1 / 54
Maximum ESP/Fan Setting Value⁶:
1.0 / 112
Dehumidification (pts./hr.):
6.9
Dimension and Weight
Width:
19 1/32”
Depth:
21 3/8“
Height:
55 3/16“
Weight:
146 lbs.

Features

High Efficiency
  • The KUSXA361A boasts a Seasonal Energy Efficiency Ratio (SEER2) of 18.2 and an Energy Efficiency Ratio (EER2) of 13, ensuring cost-effective operation.
Enhanced Heating Performance
  • Equipped with LG's Reliable to Extreme Degrees (RED°) technology, this unit provides reliable heating even in colder climates, maintaining heating capacity at low ambient temperatures.
Quiet Operation
  • Thanks to a brushless direct current motor and a twin rotary compressor, the KUSXA361A operates with reduced mechanical and electrical noise, ensuring quieter performance compared to traditional systems.
Advanced Connectivity
  • Utilizing a 5-conductor cable, this unit enhances communication reliability and supports features like leak detection, improving overall system performance.
