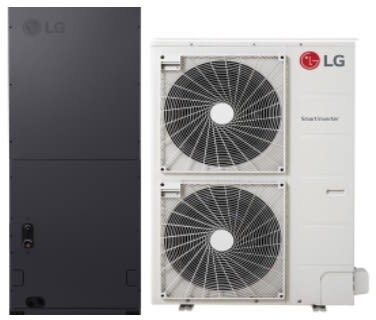

LG KSSLA241A - 24,000 BTU Single Zone Mini Split System
LG KSSLA241A - 24,000 BTU Single Zone Mini Split System
LG KSSLA241A - 24,000 BTU Single Zone LGRED™ Multi-Position Air Handling Unit with R32 Leak Detection Sensor

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LG KSSLA241A
Authorized
Dealer

LG
KSSLA241A
24,000 BTU Single Zone Mini Split System with R32 Leak Detection Sensor, Auto Restart, Sleep Mode, On/Off Timer, Two Thermistor Control, Child Lock and Energy Star Certified

Top Quality Store on Google
included items
24,000 BTU Single Zone Indoor Unit (KNSLA241A)
• R32 Leak Detection Sensor, Auto Restart, Sleep Mode
27,000 BTU Single Zone Outdoor Unit (KUSXA241A)
• R32 Leak Detection Sensor, Auto Restart, Sleep Mode
To order or learn more please call us at:
800-570-3355
FREE Delivery Available
Protect Your Purchase
+$250
- 30% Cash Back! +$350
Have questions? Chat with us!
Product Information
Brand: LG
Series: Multi F LG RED
Model: KNSLA241A
Dimensions & Weights
Width: 21 13/32 Inch
Depth: 16 1/32 Inch
Height: 48 21/32 Inch
Net Weight: 122 Lbs.
Shipping Weight: 134 Lbs.
Capacity
Heating Capacity: 27,000 BTU
Cooling Capacity: 24,000 BTU
General
AC System Type: Mini Split
Component Type: Indoor Unit
Operation: Cooling with Heat Pump
Wireless Remote Control(s) Included: Included
Wired Remote Control(s) Included: Optional
Thermostat Range - Cooling (F°): 57-77
Thermostat Range - Heating (F°): 59-81
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Performance
Fan: Sirocco
Motor: Brushless Digitally Controlled
Energy Star Certified: Yes
Moisture Removal (Pts/hr): 4.23 Pts./Hr.
Airflow Rate Low (CFM): 580 CFM
Airflow Rate Medium (CFM): 700 CFM
Airflow Rate High (CFM): 800 CFM
Operating Sound Level - Low (dB): 29 dB
Operating Sound Level - Medium (dB): 33 dB
Operating Sound Level - High (dB): 36 dB
Temperature Sensor: Thermistor
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Liquid Line Outer Diameter: 3/8 Inch
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 24.6 Ft.
Min. Line Length - Each: 16.4 Ft.
Max. Line Length - Total: 164 Ft.
Features
Program Timer: Yes
Sleep Mode: Yes
Soft Start: Yes
Quiet/Sleep Mode: Yes
Auto Operation: Yes
Auto Restart on Power Failure: Yes
No. of Fan Speeds: 3
WiFi Connected: Yes
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

24,000 BTU Single Zone LGRED™ Multi-Position Air Handling Unit with R32 Leak Detection Sensor
The 24,000 BTU Single Zone LGRED™ Multi-Position Air Handling Unit with R32 Leak Detection Sensor from LG offers powerful and efficient heating and cooling for residential and light commercial spaces. Featuring LGRED° (Reliable to Extreme Degrees) technology, it delivers superior heating performance even in extreme cold conditions. The multi-position design ensures flexible installation, while the R32 refrigerant with leak detection enhances safety and eco-friendliness. Ideal for maintaining optimal comfort and energy efficiency year-round.

Specifications

Performance
Cooling Capacity:
24,000
SEER2:
17.50
EER2:
12.50
Heating Capacity:
27,000
HSPF2:
10.00
Electrical
Power Supply (V¹/Hz/Ø):
208-230/60/1
MOP (A):
30
MCA (A):
19.1
Cooling / Heating Rated Amps (A):
8.4 / 9.1
Compressor (A):
14
Fan Motor (IDU + ODU) (A):
2.8 + 1.6
Cooling Power Input (Min~Rated~Max, kW):
0.55 ~ 1.92 ~ 3.00
Heating Power Input (Min~Rated~Max, kW:
0.65 ~ 2.08 ~ 4.40
Locked Rotor Amps (A):
22
Piping
Liquid Line (in., O.D.):
3/8
Vapor Line (in., O.D.):
5/8
IDU Liquid Connection (in., O.D.):
3/8
IDU Vapor Connection (in., O.D.):
5/8
Additional Refrigerant (oz./ft.):
0.38
Min. / Max. Pipe Length (ft.)²:
16.4 / 164
Piping Length (no add’l refrig., ft.):
24.6
Max. Elevation (ft.):
98.4
Operating Range Indoor Unit
Cooling (°F DB):
57 ~ 77
Heating (°F WB):
59 ~ 81
System Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Refrigerant Charge (lbs.):
67
IDU Sound Pressure
(H/M/L) (±1 dB[A])⁵:
36 / 33 / 29
IDU Net / Shipping Weight (lbs.):
122 / 134
Heat Exchanger Coating:
GoldFin™
Fan
IDU Type:
Sirocco
Fan Speeds (Fan/Cool/Heat):
3 / 3 / 3
Quantity (ODU + IDU):
1 + 1
Motor/Drive:
Brushless Digitally Controlled/Direct
Maximum ODU Air Volume (CFM):
2,048
IDU Air Flow (CFM Max. H/M/L):
800 / 700 / 580
Default ESP (in wg):
0.4
Minimum ESP/Fan Setting Value⁶:
Constant Flow
Maximum ESP/Fan Setting Value⁶:
Constant Flow
Dehumidification (pts./hr.):
4.23
Dimension and Weight
Width:
21 13/32”
Depth:
16 1/32“
Height:
48 21/32“
Weight:
122 lbs.

Features

R32 Leak Detection Sensor
  • Monitors refrigerant levels and alerts you to potential leaks, enhancing safety and efficiency.
Auto Restart
  • Automatically resumes operation with previous settings after a power outage, ensuring uninterrupted comfort.
Sleep Mode
  • Gradually adjusts temperature for a comfortable sleep environment while conserving energy.
Timer (on/off/weekly)
  • Allows you to schedule heating or cooling to match your routine, optimizing convenience and energy use.
Two Thermistor Control
  • Ensures precise temperature management by monitoring indoor conditions for consistent comfort.
Child Lock
  • Prevents accidental setting changes, providing safety and peace of mind for families.
Other Features
  • Inverter (Variable Speed Compressor)
  • Hot Start
  • Self Diagnosis
  • Soft Dry Operation
  • Auto Changeover
  • Auto Operation
  • Optional Wi-Fi Control
  • ESP Control
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Product Information
Brand: LG
Model: KUSXA241A
Dimensions & Weights
Width: 37 19/48 Inch
Depth: 13 Inch
Height: 32 41/48 Inch
Net Weight: 141.8 Lbs.
Shipping Weight: 151 Lbs.
Capacity
Heating Capacity: 27,000 BTU
Cooling Capacity: 24,000 BTU
Min Connectable Capacity: 10,800 BTU
Max Connectable Capacity: 36,000 BTU
General
AC System Type: Mini Split
Component Type: Outdoor Unit
Operation: Cooling with Heat Pump
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Running Current Cooling - Rated (Amps): 8.4 Amps
Running Current Heating - Rated (Amps): 9.1 Amps
Minimum Ampacity (Amps): 30 Amps
Max. TD Fuse/Breaker: 19 Amps
Performance
Compressor Noise Level - Cooling (dB): 51 dB
Compressor Noise Level - Heating (dB): 29 dB
Energy Star Certified: Yes
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 3 Ft.
Max. Line Length - Total: 98.4 Ft.
Outside Temperature Range for Cooling - Min.: 5 °F
Outside Temperature Range for Cooling - Max.: 118 °F
Outside Temperature Range for Heating - Min.: -13 °F
Outside Temperature Range for Heating - Max.: 64 °F
Features
Sleep Mode: Yes
Inverter (Variable speed compressor): Yes
WiFi Connected: Yes
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

27,000 BTU Single Zone Outdoor Unit
The LG KUSXA241A is a 24,000 BTU outdoor heat pump unit designed for single-zone applications, utilizing R-32 refrigerant.

Specifications

Performance
Cooling Capacity:
24,000
SEER2:
17.50
EER2:
12.50
Heating Capacity:
27,000
HSPF2:
10.00
Electrical
Power Supply (V¹/Hz/Ø):
208-230/60/1
MOP (A):
30
MCA (A):
19.1
Cooling / Heating Rated Amps (A):
8.4 / 9.1
Compressor (A):
14
Fan Motor (IDU + ODU) (A):
2.8 + 1.6
Cooling Power Input (Min~Rated~Max, kW):
0.55 ~ 1.92 ~ 3.00
Heating Power Input (Min~Rated~Max, kW:
0.65 ~ 2.08 ~ 4.40
Locked Rotor Amps (A):
22
Piping
Liquid Line (in., O.D.):
3/8
Vapor Line (in., O.D.):
5/8
Additional Refrigerant (oz./ft.):
0.38
Min. / Max. Pipe Length (ft.)²:
16.4 / 164
Piping Length (no add’l refrig., ft.):
24.6
Max. Elevation (ft.):
98.4
Operating Range Outdoor Unit
Cooling (°F DB):
57 ~ 77
Heating (°F WB):
59 ~ 81
System Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Refrigerant Charge (lbs.):
67
Heat Exchanger Coating:
GoldFin™
Fan
ODUType:
Propeller
Fan Speeds (Fan/Cool/Heat):
3 / 3 / 3
Quantity (ODU + IDU):
1 + 1
Motor/Drive:
Brushless Digitally Controlled/Direct
Maximum ODU Air Volume (CFM):
2,048
IDU Air Flow (CFM Max. H/M/L):
800 / 700 / 580
Default ESP (in wg):
0.4
Minimum ESP/Fan Setting Value⁶:
Constant Flow
Maximum ESP/Fan Setting Value⁶:
Constant Flow
Dehumidification (pts./hr.):
4.23
Dimension and Weight
Width:
37 19/48”
Depth:
13"
Height:
32 41/48“
Weight:
141.8 lbs.

Features

High Efficiency
  • The KUSXA241A boasts a Seasonal Energy Efficiency Ratio (SEER2) of 18.2 and an Energy Efficiency Ratio (EER2) of 13, ensuring cost-effective operation.
Enhanced Heating Performance
  • Equipped with LG's Reliable to Extreme Degrees (RED°) technology, this unit provides reliable heating even in colder climates, maintaining heating capacity at low ambient temperatures.
Quiet Operation
  • Thanks to a brushless direct current motor and a twin rotary compressor, the KUSXA241A operates with reduced mechanical and electrical noise, ensuring quieter performance compared to traditional systems.
Advanced Connectivity
  • Utilizing a 5-conductor cable, this unit enhances communication reliability and supports features like leak detection, improving overall system performance.
Energy Star Certified
  • This model meets the ENERGY STAR requirements, indicating energy efficiency and potential eligibility for federal tax rebates.
