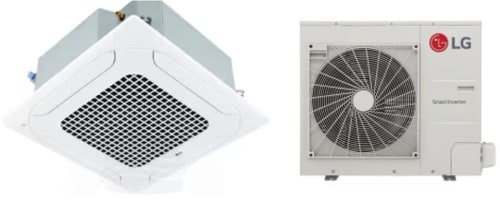

LG KSSCA241A - 24,000 BTU Single Zone Mini Split Unit
LG KSSCA241A - 24,000 BTU Single Zone Mini Split Unit
LG KSSCA241A - 27,000 BTU Single Zone Outdoor Unit
LG KSSCA241A - 24,000 BTU Single Zone Mini Split Unit
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
LG KSSCA241A
Authorized
Dealer

LG
KSSCA241A
24,000 BTU Single Zone Mini Split Unit with R32 Leak Detection Sensor, Auto Restart, Sleep Mode, On/Off Timer, Two Thermistor Control, and Child Lock

Top Quality Store on Google
included items
24,000 BTU Single Zone Indoor Unit (KNSCB241A)
• R32 Leak Detection Sensor, Auto Restart, Sleep Mode
27,000 BTU Single Zone Outdoor Unit (KUSXA241A)
• R32 Leak Detection Sensor, Auto Restart, Sleep Mode
To order or learn more please call us at:
800-570-3355
FREE Delivery Available
Protect Your Purchase
+$250
- 30% Cash Back! +$350
Have questions? Chat with us!
Product Information
Brand: LG
Model: KNSCB241A
Dimensions & Weights
Width: 33 1/16 Inch
Depth: 33 1/16 Inch
Height: 11 5/16 Inch
Net Weight: 56.5 Lbs.
Shipping Weight: 70.5 Lbs.
Capacity
Heating Capacity: 34,000 BTU
Cooling Capacity: 30,000 BTU
General
AC System Type: Mini Split
Component Type: Indoor Unit
Operation: Cooling Only
Wireless Remote Control(s) Included: Optional
Wired Remote Control(s) Included: Optional
Thermostat Range - Cooling (F°): 57-77
Thermostat Range - Heating (F°): 59-81
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Performance
Fan: Turbo
Motor: Brushless Digitally Controlled
Energy Star Certified: No
Moisture Removal (Pts/hr): 5.4 Pts./Hr.
Airflow Rate Low (CFM): 640 CFM
Airflow Rate Medium (CFM): 755 CFM
Airflow Rate High (CFM): 840 CFM
Operating Sound Level - Low (dB): 40 dB
Operating Sound Level - Medium (dB): 41 dB
Operating Sound Level - High (dB): 42 dB
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 3 Ft.
Features
Sleep Mode: Yes
Auto Operation: Yes
Auto Restart on Power Failure: Yes
Auto-changeover: Yes
WiFi Connected: Yes
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

24,000 BTU Single Zone Indoor Unit
The LG KNSCB241A is a 24,000 BTU 4-way ceiling cassette indoor unit designed for high-efficiency heating and cooling in single-zone applications. It operates with R-32 refrigerant and is engineered for quiet and effective air distribution, making it ideal for both residential and commercial spaces.

Specifications

Performance
Cooling Capacity:
24,000
SEER2:
22.00
EER2:
13.00
Heating Capacity:
27,000
HSPF2:
10.5
Electrical
Power Supply (V¹/Hz/Ø):
208-230/60/1
MOP (A):
30
MCA (A):
19.1
Cooling / Heating Rated Amps (A):
8.4 / 9.1
Compressor (A):
14
Fan Motor (IDU + ODU) (A):
2.8 + 1.6
Cooling Power Input (Min~Rated~Max, kW):
0.55 ~ 1.92 ~ 3.00
Heating Power Input (Min~Rated~Max, kW:
0.65 ~ 2.08 ~ 4.40
Locked Rotor Amps (A):
22
Piping
Liquid Line (in., O.D.):
3/8
Vapor Line (in., O.D.):
5/8
Additional Refrigerant (oz./ft.):
0.38
Min. / Max. Pipe Length (ft.)²:
16.4 / 164
Piping Length (no add’l refrig., ft.):
24.6
Max. Elevation (ft.):
98.4
Operating Range Outdoor Unit
Cooling (°F DB):
60 ~ 86
Heating (°F WB):
60 ~ 86
System Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Refrigerant Charge (lbs.):
67
Heat Exchanger Coating:
GoldFin™
Fan
ODUType:
Propeller
Fan Speeds (Fan/Cool/Heat):
3 / 3 / 3
Quantity (ODU + IDU):
1 + 1
Motor/Drive:
Brushless Digitally Controlled/Direct
Maximum ODU Air Volume (CFM):
2,048
IDU Air Flow (CFM Max. H/M/L):
800 / 700 / 580
Default ESP (in wg):
0.4
Minimum ESP/Fan Setting Value⁶:
Constant Flow
Maximum ESP/Fan Setting Value⁶:
Constant Flow
Dehumidification (pts./hr.):
4.23
Dimension and Weight
Width:
33 1/16"
Depth:
33 1/16"
Height:
11 5/16
Weight:
56.4 lbs.
Shipping Weight:
70.4 lbs.

Features

4-Way Airflow Distribution
  • Ensures even cooling and heating throughout the room.
Compact Design
  • Fits within a standard 3' x 3' ceiling grid, making installation seamless.
Quiet Operation
  • Minimizes noise for a comfortable indoor environment.
Auto Restart Function
  • Recovers previous settings after a power outage.
Dehumidification Mode
  • Enhances indoor comfort by removing excess moisture from the air.
Wi-Fi Compatibility
  • Works with LG ThinQ® for remote monitoring and control (Wi-Fi module sold separately).
Independent Louver Control
  • Allows for customized airflow direction in different areas.
Easy Maintenance
  • Features a washable filter for hassle-free upkeep.
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Product Information
Brand: LG
Model: KUSXA241A
Dimensions & Weights
Width: 37 19/48 Inch
Depth: 13 Inch
Height: 32 41/48 Inch
Net Weight: 141.8 Lbs.
Shipping Weight: 151 Lbs.
Capacity
Heating Capacity: 27,000 BTU
Cooling Capacity: 24,000 BTU
Min Connectable Capacity: 10,800 BTU
Max Connectable Capacity: 36,000 BTU
General
AC System Type: Mini Split
Component Type: Outdoor Unit
Operation: Cooling with Heat Pump
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Running Current Cooling - Rated (Amps): 8.4 Amps
Running Current Heating - Rated (Amps): 9.1 Amps
Minimum Ampacity (Amps): 30 Amps
Max. TD Fuse/Breaker: 19 Amps
Performance
Compressor Noise Level - Cooling (dB): 51 dB
Compressor Noise Level - Heating (dB): 29 dB
Energy Star Certified: Yes
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 3 Ft.
Max. Line Length - Total: 98.4 Ft.
Outside Temperature Range for Cooling - Min.: 5 °F
Outside Temperature Range for Cooling - Max.: 118 °F
Outside Temperature Range for Heating - Min.: -13 °F
Outside Temperature Range for Heating - Max.: 64 °F
Features
Sleep Mode: Yes
Inverter (Variable speed compressor): Yes
WiFi Connected: Yes
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

27,000 BTU Single Zone Outdoor Unit
The LG KUSXA241A is a 24,000 BTU outdoor heat pump unit designed for single-zone applications, utilizing R-32 refrigerant.

Specifications

Performance
Cooling Capacity:
24,000
SEER2:
17.50
EER2:
12.50
Heating Capacity:
27,000
HSPF2:
10.00
Electrical
Power Supply (V¹/Hz/Ø):
208-230/60/1
MOP (A):
30
MCA (A):
19.1
Cooling / Heating Rated Amps (A):
8.4 / 9.1
Compressor (A):
14
Fan Motor (IDU + ODU) (A):
2.8 + 1.6
Cooling Power Input (Min~Rated~Max, kW):
0.55 ~ 1.92 ~ 3.00
Heating Power Input (Min~Rated~Max, kW:
0.65 ~ 2.08 ~ 4.40
Locked Rotor Amps (A):
22
Piping
Liquid Line (in., O.D.):
3/8
Vapor Line (in., O.D.):
5/8
Additional Refrigerant (oz./ft.):
0.38
Min. / Max. Pipe Length (ft.)²:
16.4 / 164
Piping Length (no add’l refrig., ft.):
24.6
Max. Elevation (ft.):
98.4
Operating Range Outdoor Unit
Cooling (°F DB):
57 ~ 77
Heating (°F WB):
59 ~ 81
System Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Refrigerant Charge (lbs.):
67
Heat Exchanger Coating:
GoldFin™
Fan
ODUType:
Propeller
Fan Speeds (Fan/Cool/Heat):
3 / 3 / 3
Quantity (ODU + IDU):
1 + 1
Motor/Drive:
Brushless Digitally Controlled/Direct
Maximum ODU Air Volume (CFM):
2,048
IDU Air Flow (CFM Max. H/M/L):
800 / 700 / 580
Default ESP (in wg):
0.4
Minimum ESP/Fan Setting Value⁶:
Constant Flow
Maximum ESP/Fan Setting Value⁶:
Constant Flow
Dehumidification (pts./hr.):
4.23
Dimension and Weight
Width:
37 19/48”
Depth:
13"
Height:
32 41/48“
Weight:
141.8 lbs.

Features

High Efficiency
  • The KUSXA241A boasts a Seasonal Energy Efficiency Ratio (SEER2) of 18.2 and an Energy Efficiency Ratio (EER2) of 13, ensuring cost-effective operation.
Enhanced Heating Performance
  • Equipped with LG's Reliable to Extreme Degrees (RED°) technology, this unit provides reliable heating even in colder climates, maintaining heating capacity at low ambient temperatures.
Quiet Operation
  • Thanks to a brushless direct current motor and a twin rotary compressor, the KUSXA241A operates with reduced mechanical and electrical noise, ensuring quieter performance compared to traditional systems.
Advanced Connectivity
  • Utilizing a 5-conductor cable, this unit enhances communication reliability and supports features like leak detection, improving overall system performance.
Energy Star Certified
  • This model meets the ENERGY STAR requirements, indicating energy efficiency and potential eligibility for federal tax rebates.
