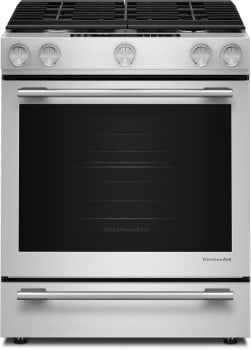

KitchenAid KSDS730TPS - 30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer
KitchenAid KSDS730TPS - 30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer
KitchenAid KSDS730TPS - 30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer
KitchenAid KSDS730TPS - 30-Inch 5-Burner Dual Fuel Convection Slide-In Range with Baking Drawer
+8

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
KitchenAid KSDS730TPS
Authorized
Dealer

KitchenAid
KSDS730TPS
30 Inch Slide-In Dual Fuel Range with 5 Sealed Burners, 7.1 cu. ft. Total Oven Capacity, Dishwasher-Safe Continuous Grates, Baking Drawer, Even-Heat™ True Convection, Air Fry Mode, Proof Mode, Steam Clean, PrintShield™ Finish, Sabbath Mode and ADA Compliant

Top Quality Store on Google
quick specs
Sabbath Mode: Yes
Fingerprint Resistant: Yes
Cooktop: Sealed Burner
Drawer: Oven
Width: 29 7/8 Inch
Depth: 28 7/8 Inch
Height: 36 Inch
Number of Burners: 5
Primary Oven Capacity: 7.1 Cu. Ft.
Continuous Grates: Yes
Convection: Yes
Self-Cleaning: No
Steam Clean: Yes
Glide Rack(s): No
Temperature Probe: No
View more
$2,798.00
MSRP: $3,110.00
You save $312.00
OR
Buy more & save up to $3,000
See all eligible items
2
$100
3
$300
4
$500
5
$900
6
$1,800
7
$2,500
8
$3,000
FREE Delivery Available
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Electric Cord Kit - 40 Amp, 4 ft.
+ $49.99
Current Offers
KitchenAid: Buy More Save More up to $3,000 Instantly Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: KitchenAid
Model: KSDS730TPS
Appearance
Fuel Type: Dual Fuel
Fuel Subtype: Natural Gas
Style: Slide-In
Color: Fingerprint Resistant Stainless Steel
Fingerprint Resistant: Yes
Stainless Steel Handle: Yes
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Touchpad
Viewing Window: Yes
Double Oven: No
Drawer: Oven
Clock: Yes
Downdraft Venting: No
Dimensions
Width: 29 7/8 Inch
Depth: 28 7/8 Inch
Height: 36 Inch
Interior Width: 24 1/8 Inch
Interior Depth: 20 1/8 Inch
Interior Height: 22 1/8 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: None
Smart
WiFi: No
Smart Accessory Required: No
Capacity
Number of Burners: 5
Primary Oven Capacity: 7.1 Cu. Ft.
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 8,000 BTU (Center Rear)
Burner 2 Output: 19,000 BTU (Left Front)
Burner 3 Output: 5,000 BTU (Left Rear)
Burner 4 Output: 15,000 BTU (Right Front)
Burner 5 Output: 9200 BTU (Right Rear)
Gas Cooktop Features
Continuous Grates: Yes
Dishwasher Safe Grates: Yes
Cooktop Accessory: No Accessory
Grill: No
Griddle: No
French Top: No
Oven Features
Timer: Yes
Delay Bake: Yes
Fast Preheat: No
No Preheat: Yes
Convection: Yes
Proof Mode: Yes
Self-Cleaning: No
Steam Clean: Yes
Racks: 2
Glide Rack(s): No
Temperature Probe: No
Broiler Element Location: Top
Interior Oven Light: Yes
Oven Camera: No
Removable Door: Yes
Air Fry: Yes
Sous Vide: No
Steam Assist: No
Soft Close: Yes
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
Oven Wattage: 3,600
LP Conversion: Yes - Kit Included
Amps: 40
Voltage: 240 Volts
GTIN
UPC: 883049966250
Are you a Trade Pro? Join Now

Description

30 Inch Slide-In Dual Fuel Range with 5 Sealed Burners
This versatile dual fuel range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range also features flawless cooking results from Even-Heat™ True Convection, featuring a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts, and flavorful caramelized vegetables.

Energy Info

Air Fry Mode
Circulates hot air to crisp and brown food using less oil than deep frying.

Specifications

Product Overview
Brand:
KitchenAid
Model:
KSDS730TPS
Color:
PrintShield™ Stainless Finish
Fuel Type:
Dual Fuel
Cooktop Fuel Type:
Gas
Oven Fuel Type:
Electric
Range Type:
Slide-In
Installation Configuration:
Freestanding
Cooktop Configuration:
All Burners
Oven Configuration:
Single Oven with Baking Drawer
Range Drawer Type:
Baking Drawer
Total Capacity:
7.1 cu. ft.
Air Fry:
Yes
Sabbath Mode:
Yes
Fingerprint Resistant:
Yes
LP Convertible:
Yes
Natural Gas Convertible:
Yes
Oven Automatic Shut-Off:
No
Power On Indicator Light:
Yes
Power Outage Compatible:
No
Delay Clean:
No
Oven Selections:
Air Baking, Air Roast, Bake, Baking Drawer Bake, Baking Drawer Keep Warm, Broil, Clock, Convect Roast, Cook Time, Delay Start, Keep Warm Setting, No Preheat Air Fry, Oven Light, Proofing, Sabbath Mode, Slow Cook, Start/Cancel, Steam Bake, Steam Clean, Timer Set/Off
Exterior Details
Door Type:
Metal and Glass
Handle Material:
Stainless Steel
Handle Color:
Stainless Steel
Handle Type:
Towel Bar
Knob Color:
Stainless Steel
Knob Type:
Weighted Plastic
Oven Control Location:
Front
Oven Control Type:
Tap Touch
Oven Window Size:
Large
Door Lock:
No
Adjustable Height:
Yes
Cooktop Details
Cooktop Element Style:
Gas Burners
Number of Burners:
5
Cooktop Control Location:
Front
Cooktop Control Type:
Knobs
Cooktop Control Knob Type:
Weighted Plastic
Cooktop Surface Color:
Stainless Steel
Cooktop Surface Material:
Stainless Steel
Ignition Type:
Electronic
Auto Re-Ignition:
No
Griddle Included:
No
Heating Element On Indicator Light:
No
Hot Surface Indicator Light:
No
Burner Details
Left Front Burner Output:
19,000 BTU
Left Front Burner Type:
Sealed Burner
Left Rear Burner Output:
5,000 BTU
Left Rear Burner Type:
Sealed Burner
Right Front Burner Output:
15,000 BTU
Right Front Burner Type:
Sealed Burner
Right Rear Burner Output:
9,200 BTU
Right Rear Burner Type:
Sealed Burner
Center Rear Burner Output:
8,000 BTU
Center Rear Burner Type:
Oval Burner
Grate Details
Number of Grates:
2
Grate Material:
Cast Iron
Grate Finish:
Matte
Continuous Grates:
Yes
Dishwasher-Safe Grates:
Yes
Oven Cavity Details
Oven Cooking System:
True Convection
Convection System:
Even-Heat™ True Convection
Convection Element Type:
True Bow Tie
Convection Functions:
No Preheat Air Fry, Broil, Roast
Automatic Convection Temperature Conversion:
Yes
Number of Oven Racks:
2
Oven Rack Type:
1 Heavy-Duty Rack and 1 Steam Rack
Number of Rack Positions:
7
Oven Rack Guide Type:
Embossed
Oven Rack Front Material:
Metal
Interior Color:
Black
Hidden Bake Element:
Yes
Bake Element Power:
3,600 W
Broiler Element Power:
4,000 W
Convection Element Power:
914 W
Broiler Location:
Top of Oven
Oven Cleaning Type:
Steam Clean
Removable Oven Door:
Yes
Number of Oven Lights:
2
Oven Light Type:
Halogen
Oven Light Switch Location:
Oven Control
Temperature Probe:
No
Features
Range Features:
ADA Compliant, Air Fry, Baking Drawer, EasyConvect™ Conversion, Even-Heat™ True Convection, FIT System, Oval Burner, Sabbath Mode, Steam Clean, Steam Rack
Steam Bake:
Yes
Steam Bake Tray Included:
Yes
Proof Mode:
Yes
Controls and Connectivity
Display Color:
Red, White
Smart Appliance:
No
Connectivity:
None
Electrical Requirements
Power Cord Included:
Yes
Amperage:
40 A
Voltage:
240 V
Dimensions & Weight
Nominal Width:
30"
Width:
29 7/8"
Depth Including Handles:
28 7/8"
Depth Excluding Handles:
26 3/8"
Depth Excluding Doors:
25 9/16"
Depth with Door Open 90 Degrees:
48 3/4"
Height:
36"
Cutout Width:
30"
Cutout Depth:
28 7/8"
Cutout Height:
36"
Oven Interior Width:
24 1/8"
Oven Interior Depth:
20 1/8"
Oven Interior Height:
22 1/8"
Net Weight:
235 lbs
Gross Weight:
251 lbs
Certifications
ADA Compliant:
Yes
UL Listed:
Yes
CUL Listed:
Yes

Features

Five Sealed Gas Burners
  • Five burners provide flexible cooking power, including a 19,000-BTU burner for high-heat cooking and a 5,000-BTU burner for gentler heating.
Even-Heat™ True Convection
  • Combines a bow-tie design, dedicated heating element, and fan to circulate hot air throughout the oven for consistent baking and roasting results.
Separate Baking Drawer
  • Provides an additional compartment for baking at a different temperature, slow cooking, or keeping finished dishes warm.
Air Fry Mode
  • Circulates hot air to crisp and brown food using less oil than deep frying. No Preheat Air Fry lets you begin cooking without waiting for the oven to preheat.
Steam Bake Mode with Steam Bake Tray
  • Uses the included Steam Bake tray to add moisture during baking, expanding your options for cheesecakes and other baked desserts.
Air Baking
  • Helps deliver even results on multiple racks when preparing cakes, muffins, and other baked favorites.
Air Roast
  • Uses circulating hot air to roast meat and poultry while helping retain flavor and juices.
Air Broil
  • Uses intense, air-driven heat to quickly melt, char, and sear foods.
Proof Mode
  • Maintains a low-temperature environment designed to help yeast dough rise before baking.
PrintShield™ Finish
  • Resists fingerprints and smudges. The stainless steel finish cleans easily with water and a soft cloth.
Dishwasher-Safe Continuous Grates
  • Continuous cast-iron grates help you move cookware between burners without lifting. The grates are dishwasher safe for convenient cleaning.
Oval Center Burner
  • An 8,000-BTU oval burner accommodates suitable elongated cookware. Griddle not included.
Front Controls and Tap-Touch Oven Panel
  • Front-mounted cooktop knobs and tap-touch oven controls keep cooking adjustments conveniently within reach.
EasyConvect™ Conversion
  • Automatically adjusts oven temperatures for compatible convection settings to help simplify convection cooking.
Steam Clean
  • Provides a steam-assisted cleaning cycle to help loosen light oven soil.
Hidden Bake Element
  • Conceals the lower bake element beneath the oven floor for a smooth surface that is easier to wipe clean.
Two Oven Racks and Seven Rack Positions
  • Includes one heavy-duty rack and one steam rack, with seven rack positions for flexible cookware placement.
Halogen Oven Lighting
  • Two halogen lights illuminate the oven interior to help you monitor cooking progress through the large viewing window.
Removable Oven Door
  • The oven door can be removed to provide easier access for cleaning and servicing.
Sabbath Mode
  • Provides a dedicated operating mode designed to accommodate Sabbath observance.
Electronic Cooktop Ignition
  • Electronically ignites the gas burners for convenient everyday operation.
LP Convertible
  • Can be converted for use with liquid propane following the manufacturer's conversion instructions.
ADA Compliant
  • Meets applicable ADA accessibility requirements when installed as directed.
Assembled in the U.S.A.
  • Proudly assembled in Tulsa, Oklahoma.
Key Features
Even-Heat™ True Convection
Even-Heat™ True Convection features a distinctive bow-tie design with a heating element and fan that evenly circulates hot air throughout the oven, ensuring optimal temperatures for perfectly baked goods, tender roasts, and flavorful vegetables.
PrintShield™ Finish
PrintShield™ Finish resists smudges and fingerprints, making it easy to maintain. The specialized stainless steel coating cleans effortlessly with just water and a soft cloth, so you can spend more time cooking and less time cleaning.
