Miele KMR13563GGDCTS - 48" All Gas (6 Burner/Griddle) Rangetop
Miele KMR13563GGDCTS - 48" All Gas (6 Burner/Griddle) Rangetop
Miele KMR13563GGDCTS - Control Panel

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Miele KMR13563GGDCTS
Authorized
Dealer

Miele
KMR13563GGDCTS
48 Inch Gas Rangetop with 6 Sealed Burners, Continuous Grates, 2 Continuous Simmer Burner, and M Pro Infrared Griddle: Natural Gas

Top Quality Store on Google
Bundle & Save up to 10%
quick specs
Number of Burners: 6
Style: Sealed Burner
Type: Rangetop
Control Type: Knobs
Downdraft Venting: No
Actual Width: 47 15/16 Inch
WiFi: No
Simmer Burner: Yes
Power Burner: Yes
Continuous Grates: Yes
Grill: No
Griddle: Yes
Warranty Terms: 2 years
?
View more
Gas: Natural Gas
Liquid Propane
Liquid Propane
KMR13563LPGDCTS
$7,199.00
In stock
Natural Gas
Natural Gas
KMR13563GGDCTS
$7,199.00
In stock
$7,199.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Current Offers
Miele: Kitchen Package Promotion Save up to 10% Expires 12/31/2026
Have questions? Chat with us!

You Might Also Like

48 Inch Stainless Steel Ventilation Hood
Miele
48 Inch Stainless Steel Ventilation Hood
$5,999.00

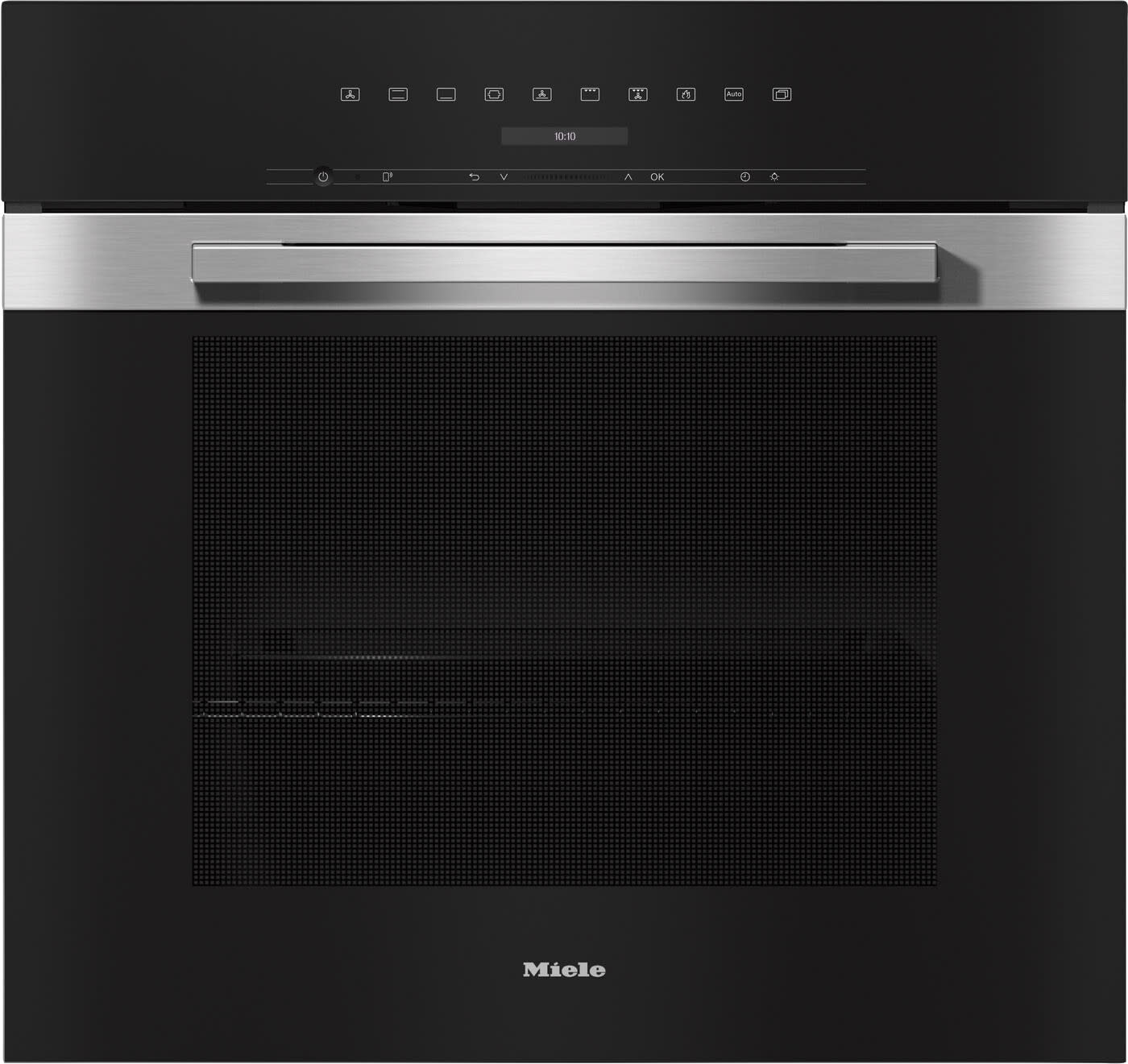

30 Inch Single Convection Smart Electric Wall Oven
Miele
30 Inch Single Convection Smart Electric Wall Oven
$6,199.00
Product Information
Brand: Miele
Model: KMR13563GGDCTS
Warranty Terms: 2 years
?
Appearance
Fuel Type: Gas
Fuel Subtype: Natural Gas
Number of Burners: 6
Style: Sealed Burner
Type: Rangetop
Control Type: Knobs
Controls Location: Front
Color: Stainless Steel
Surface Color: Black
Trim Color: Stainless Steel
Glass Surface: No
Fingerprint Resistant: Yes
Downdraft Venting: No
Dimensions
Actual Width: 47 15/16 Inch
Actual Depth: 26 1/2 Inch
Actual Height: 7 1/2 Inch
Cutout Width: 48 Inch
Cutout Depth: 25 1/16 Inch
Smart
WiFi: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 10,000 BTU
Burner 2 Output: 10,000 BTU
Burner 3 Output: 13,600 BTU
Burner 4 Output: 19,500 BTU
Burner 5 Output: 19,500 BTU
Burner 6 Output: 19,500 BTU
Burner 7 Output: 13,000 BTU (Griddle)
Gas Cooktop Features
Continuous Grates: Yes
Dishwasher Safe Grates: Yes
Cooktop Accessory: Griddle
Grill: No
Griddle: Yes
French Top: No
Technical Details
ADA Compliant: No
LP Conversion: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 26135670USA
EAN: 4002516495475
Are you a Trade Pro? Join Now

Description

G7000 48 Inch Gas Rangetop with 6 Sealed Burners
RangeTop with burners and griddle for versatility and performance.

Specifications

BTU Output
Gas Burners:
(2) 10,000 BTU; (1) 13,600 BTU; (3) 19,500 BTU
Griddle Burner:
13,000 BTU
Total BTU Output:
105,100 BTU
Product Dimensions
Overall Width:
47 15/16"
Overall Depth:
26 1/2"
Overall Height:
7 1/2"
Niche
Minimum Cabinet Niche Opening (Width):
48"
Minimum Cabinet Niche Opening (Depth):
25 1/16"
Operational Altitudes
High Altitude:
Miele Natural Gas and LP Rangetops will function up to 6,500 ft. in altitude without adjustment
Electrical
Electrical Requirements:
110V / 120V, 60Hz, 15 Amps
Power Cord:
NEMA 5-15 plug, 4 ft (1.2 m)
Shipping
Shipping Weight:
187.4 lbs

Features

6 Sealed Burners
  • Completely sealed burners Contain spills and allow for easy cleaning and maintenance.
Clean Touch Steel™ Front
  • Protection for immaculate stainless steel surfaces.
  • No fingerprints on stainless steel: surface has a special finish which keeps clean without special cleaning agents.
M Pro Infrared Griddle
  • Everything is cooked to perfection.
  • The M Pro infrared griddle delivers even heat distribution. From French toast, pancakes, eggs, fish, or steaks.
ComfortClean Dishwasher-Safe Grates
  • Efficiently protects and makes cleaning easier.
  • Fast cleaning: Remove the pot rests and wash them in the dishwasher. Fast clean-up with dishwasher-safe grates.
Continuous Simmer
  • Perfect results with the simmer function.
  • The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.
Backlit Precision Knobs
  • Elegant back-lighting
  • With QuickStart, there's no need to press or hold the control in order to switch the burners on.
Direct Control
  • Knobs with a light ring to instantly see if the burner is on or off.

Included:

  • Griddle Cover Set (RGGC 1000)
