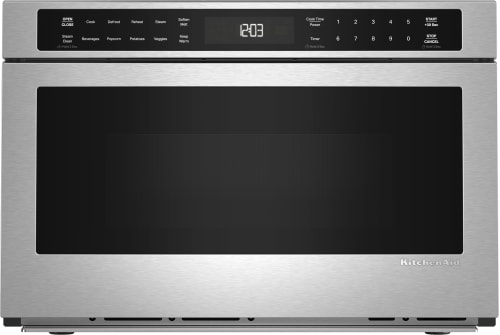

KitchenAid KMBD524TPS - 24 Inch Under-Counter Microwave Oven Drawer with Steam Cooking
KitchenAid KMBD524TPS - 24 Inch Under-Counter Microwave Oven Drawer with Steam Cooking
KitchenAid KMBD524TPS - 24 Inch Under-Counter Microwave Oven Drawer with Steam Cooking
KitchenAid KMBD524TPS - 24 Inch Under-Counter Microwave Oven Drawer with Steam Cooking
+8

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
KitchenAid KMBD524TPS
Authorized
Dealer

KitchenAid KMBD524TPS 24 Inch Under-Counter Microwave Oven Drawer with 1.3 cu. ft. Capacity, 950-Watt Cooking Power, Steam Cooking, LED Interior Lighting, Turntable-Free Design, PrintShield™ Finish, Touch-Activated Controls with LCD Display, and ADA Compliant

Top Quality Store on Google
Buy More Save More
quick specs
Style: Drawer
Fingerprint Resistant: Yes
Width: 23 1/2 Inch
Depth: 23 3/4 Inch
Height: 15 3/4 Inch
Cutout Width: 22 1/8 Inch
Cutout Depth: 23 1/2 Inch
Cutout Height: 15 5/8 Inch
WiFi: No
Capacity: 1.3 Cu. Ft.
Cooking Watts: 950 Watts
Convection: No
Quick Start Cooking: Yes
Sensor Cooking: Yes
View more
$1,438.00
MSRP: $1,599.00
You save $161.00
OR
Buy more & save up to $4,000
See all eligible items
2
$300
3
$700
4
$1,000
5
$1,700
6
$2,800
7
$3,500
8
$4,000
FREE Delivery Available
Current Offers
KitchenAid: Buy More Save More up to $3,000 Instantly Expires 12/31/2026 KitchenAid: Buy More Save More Up to $1,000 Expires 12/09/2026
Have questions? Chat with us!
Product Information
Brand: KitchenAid
Model: KMBD524TPS
Appearance
Style: Drawer
Color: Stainless Steel
Fingerprint Resistant: Yes
Optional Built-In Trim Kit: No
Optional Hanging Kit: No
Turntable: No
Dimensions
Width: 23 1/2 Inch
Depth: 23 3/4 Inch
Height: 15 3/4 Inch
Cutout Width: 22 1/8 Inch
Cutout Depth: 23 1/2 Inch
Cutout Height: 15 5/8 Inch
Smart
WiFi: No
Smart Accessory Required: No
Capacity
Capacity: 1.3 Cu. Ft.
Cooking Watts: 950 Watts
Features
Convection: No
Broiler: No
Power Levels: 10
Kitchen Timer: Yes
Child Lock: Yes
Quick Start Cooking: Yes
Sensor Cooking: Yes
Speed Cook: No
Technical Details
ADA Compliant: Yes
Approved For Commercial Use: No
Approved For Outdoor Use: No
Amps: 15
Voltage: 120 Volts
Watts: 950 Watts
GTIN
UPC: 883049956947
EAN: 0883049956947
Are you a Trade Pro? Join Now

Description

24 Inch Under-Counter Microwave Oven Drawer with Steam Cooking
Give your kitchen more room for creativity with an ingenious top-loading microwave oven drawer that installs in your wall or island, saving you valuable countertop space for food preparation. Opening and closing the drawer is one-touch simple. Sensor cooking functions deliver precise control. 950-watt cooking power and 1.3 cu. ft. capacity handle a variety of foods with ease.

Specifications

Details
Cavity Finish:
Powder Coat
Clock:
Yes
Cooking Items Included:
Steamer
Grill:
No
Microwave Configuration:
Drawer
Microwave Type:
Drawer
Turntable:
Turntable-Free Design
Work Surface Light:
No
90 Degree Articulating Hinge:
No
Door Release:
Touch to Open
Microwave Interior Light:
LED
Scrolling Electronic Display:
No
Fingerprint Resistant:
Yes
Exterior Details
Handle Color:
No Handle
Cabinet Color:
Stainless Steel Fingerprint Resistant
Door Opening Direction:
Horizontal
Microwave Details
Sensor Cooking:
Yes
Controls
Control Location:
Front Panel
Control Type:
Capacitive Touch
Convenience Cooking Controls:
Yes
Microwave Selections:
Add 30 Seconds, Auto Cook, Auto Reheat, Beverage, Control Lock, Cook Power, Cook Time, Cook/Start, Defrost, Fresh Vegetable, Frozen Vegetable, Languages - English/French, Mute, Off/Cancel, Popcorn, Potato, Soften/Melt, Steam, Steam Accessory, Steam Clean, Timer
Number of Keypads:
1
Number of Power Levels:
10
Number of Quick Touch/One-Touch Selections:
1
Number of Sensor Control Keypads:
26
One Touch Cooking:
Yes
Ventilation Details
Night Light:
No
Smart Compatibility
Connectivity:
No
Smart Appliance:
No
Works With:
No
Features
Microwave Features:
ADA Compliant, Add 30 Seconds Button, Keep Warm Function, Sensor Cooking, Sensor Steam Cycle with Steam Container, Steam Cleaning Feature, Steam Cooking
Oven Cavity Details
Convection:
No
Cooking Power:
950 W
Electrical Requirements
Power Cord Included:
Yes
Amps:
11
Hz:
60
Volts:
120
Watts:
950
Certifications
CEC Listed:
Yes
CUL:
Yes
Star K Certified:
Yes
UL:
Yes
Prop 65:
CA
Dimensions & Weights
Capacity:
1.3 cu. ft.
Common Size:
24"
Width:
23 1/2"
Depth:
23 3/4"
Depth Closed Excluding Handles:
23 3/4"
Depth Excluding Doors:
22 1/8"
Depth With Door Open 90 Degree:
38 5/8"
Height:
15 3/4"
Cutout Width Min:
22 1/8"
Cutout Width Max:
22 5/16"
Cutout Depth Min:
23 1/2"
Cutout Depth Max:
23 11/16"
Cutout Height Min:
15 5/8"
Cutout Height Max:
15 13/16"
Interior Width:
20"
Interior Depth:
7 13/16"
Interior Height:
7 13/16"
Net Weight:
63.7 lbs
Gross Weight:
75.8 lbs

Features

Steam Cooking with Included Steamer
  • Quickly cooks and reheats vegetables, chicken, and rice without added oils, while helping reduce moisture loss. Add water to the included steamer and select what you're making.
  • The integrated sensor will detect the boil to start counting down the ideal cook time.
Keep Warm
  • Maintains low heat for up to 60 minutes to keep cooked foods at serving temperature, allowing you to focus on other steps in your creative process or finish one dish while another rests.
Tap To Open
  • Allows you to open and close the microwave drawer at the touch of a button, giving you easy access even with your hands full.
Sensor Functions
  • Uses a humidity sensor that adapts power levels and cook times based on what you’re preparing. The real-time precision delivers evenly reheated pizza and soups, and determines the power needed to cook pasta and more.
Turntable-Free Design
  • Maximizes cooking space for large dishes or multiple items at the same time. A hidden motor circulates microwave heating throughout the entire oven, eliminating the need for a traditional turntable.
1.3 Cu. Ft. Capacity
  • Comfortably fits a variety of dishes from bowls to a 7" x 11" casserole dish.
950-Watt Cooking Power
  • Cooks quickly to boil water, defrost ingredients, or warm completed dishes to enjoy again.
Drawer Design
  • Frees up valuable counter space with versatile installation options—in a wall, a cabinet, under a counter, or in your kitchen island. With convenient top access to food, you can quickly stir or season your meals right inside the microwave.
Auto Functions
  • Provide convenient presets for select cooking modes, including popcorn, reheat, cook, soften, and melt. The microwave will automatically adjust cook time, taking the guesswork out of choosing settings.
LED Interior Lighting
  • Turns on when the drawer is open, making it easy to check the doneness of your food.
Touch-Activated Controls with LCD Display
  • Make it easy to choose settings and track cooking progress at a glance
Flush Built-In Design
  • Provides a seamless built-in look. The microwave fits evenly with surrounding cabinet fronts, so your kitchen stands out, not the appliance.
PrintShield™ Finish
  • Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up the kitchen.
ADA Compliant
  • This microwave meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. (U.S. Only)
