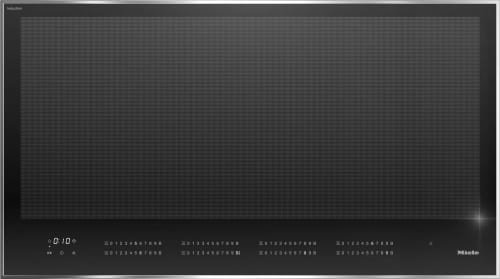

Miele Diamond KM7747FR - 36 Inch Smart Induction Cooktop with Full-Surface Cooking

Image Disclaimer

Authorized

Dealer

Miele Diamond

KM7747FR

36 Inch Smart Induction Cooktop with Full-Surface Cooking, Capacity for Up to 6 Pans, DiamondFinish, SmartSelect White Controls, Stop & Go Function, Keep-Warm Function, Miele@home, Lock Function and Residual Heat Indicator: Stainless Steel Frame

Be the first to write a review

Top Quality Store on Google

quick specs

Sabbath Mode: No

Number of Burners: 1

Type: Drop-In

Control Type: Touch Sensor

Downdraft Venting: No

Actual Width: 37 1/8 Inch

WiFi: Yes

Power Burner: Yes

Hot Surface Indicator Light: Yes

Warranty Terms: 2 years

Trim: Stainless Steel Frame

Frameless Design

KM7747FL

$6,999.00

Stainless Steel Frame

KM7747FR

$6,999.00

^$6,999^.00

Have questions? Chat with us!

Product Information

Brand: Miele

Series: Diamond

Model: KM7747FR

MPN: KM 7747 FR

Warranty Terms: 2 years

Appearance

Fuel Type: Induction

Number of Burners: 1

Type: Drop-In

Control Type: Touch Sensor

Color: Graphite Black

Surface Color: Graphite Black

Trim Color: Stainless Steel

Glass Surface: Yes

Downdraft Venting: No

Dimensions

Actual Width: 37 1/8 Inch

Actual Depth: 20 3/4 Inch

Actual Height: 4 1/8 Inch

Cutout Width: 36 1/8 Inch

Cutout Depth: 19 3/4 Inch

Shabbos Compliance

Sabbath Mode: No

Smart

WiFi: Yes

App Integration: Miele@home

Burner

Power Burner: Yes

Burner 1 Output: 2600

Electric Cooktop Features

Hot Surface Indicator Light: Yes

Keep Warm Setting: Yes

Pan Detection: Yes

Power Boil: Yes

Technical Details

Voltage: 240/208 Volts

GTIN

EAN: 4002516989868

Description
Specifications
Features
Reviews

Description

36 Inch Smart Induction Cooktop with Full-Surface Cooking
Bring greater flexibility to every meal with the Miele KM 7747 Diamond induction cooktop. Its expansive cooking surface accommodates up to six freely positioned pans, giving you room to coordinate family favorites and ambitious dinner menus alike. SmartSelect White controls simplify setting selection, while scratch-resistant DiamondFinish adds an elegant, durable touch. With TwinBooster for extra heating power, convenient keep-warm functionality and Miele@home connectivity, this cooktop combines versatile performance with thoughtful everyday convenience.

Specifications

Overview

Brand:

Miele

Model #:

KM 7747 FR Diamond

Manufacturer Material Number:

13008690

EAN:

4002516989868

Product Type:

Smart Induction Cooktop

Nominal Width:

36"

Surface Color:

Graphite Black

Surface Material:

Glass Ceramic

Surface Finish:

DiamondFinish

Edge Design:

Stainless Steel Frame

Installation:

Surface-Mounted

Cooking Surface

Cooking Area Type:

Full-Surface Induction

Number of Cooking Areas:

Maximum Number of Pans:

Pan Positioning:

Freely Selectable

Cooking Area Dimensions:

870 x 380 mm

TwinBooster:

Yes

Controls and Connectivity

Control Type:

SmartSelect White Touch Controls

Display Color:

White

Intelligent Pan Recognition:

Yes

Pan and Pan-Size Recognition:

Yes

Positioning Aid:

Yes

Miele@home:

Yes

Con@ctivity:

Yes

Convenience and Safety

Stop & Go Function:

Yes

Keep-Warm Function:

Yes

Minute Minder:

Yes

Wipe Protection:

Yes

Lock Function:

Yes

System Lock:

Yes

Safety Shutoff:

Yes

Overheating Protection:

Yes

Residual Heat Indicator:

Yes

Integrated Cooling Blower:

Yes

Electrical

Voltage:

208–240 V

Frequency:

60 Hz

Total Connected Load:

11.10 kW

Connection Wire Included:

Yes

Dimensions and Weight

Product Width:

37 1/8"

Product Depth:

20 3/4"

Product Height:

4 1/8"

Surface-Mount Cutout Width:

36 1/8"

Surface-Mount Cutout Depth:

19 3/4"

Net Weight:

55 lbs

Features

Full-Surface Cooking

Position up to six pans freely across the continuous induction cooking area for flexible meal preparation.

Intelligent Pan Recognition

Controls follow cookware placement, making it easier to manage multiple pans.

DiamondFinish

The scratch-resistant glass ceramic surface delivers durability with a refined appearance.

SmartSelect White Controls

Clearly illuminated numerical displays make selecting cooking settings simple.

TwinBooster

Access additional heating power when your cooking calls for a quick boost.

Stop & Go Function

Simplify interruptions during meal preparation with a convenient function for pausing and resuming cooking.

Keep-Warm Function

Keep prepared dishes warm while you finish the rest of your meal.

Miele@home

Connect your cooktop to your Miele@home network for supported smart features.

Con@ctivity

A compatible Miele ventilation hood responds automatically to cooktop settings.

Minute Minder

Keep track of cooking tasks with a convenient integrated timer.

Wipe Protection

Protect your settings against accidental changes while wiping the controls.

Lock Function

Help prevent unintended changes to your cooking settings.

Residual Heat Indicator

See when the cooking surface retains heat after use.

Additional Safety Functions

Overheating protection and safety shutoff provide added operating protection.

Key Features

Miele@Home

Enhance your home’s intelligence and simplify your life by securely connecting your Miele appliances to your network, unlocking a range of convenient features. With an intuitive app, voice control, and seamless integration into your existing smart home system, Miele Cloud gives you complete control over your networked appliances.

Reviews

Manuals & Guides

Specification Sheet

Installation Guide

Warranty
