Miele MasterCool Series KFMC3846R - 36 Inch Panel Ready Built-In Bottom Mount Smart Refrigerator with 18.82 cu. ft. Total Capacity
Miele MasterCool Series KFMC3846R - 36 Inch Panel Ready Built-In Bottom Mount Smart Refrigerator with 18.82 cu. ft. Total Capacity
Miele MasterCool Series KFMC3846R - 36 Inch Panel Ready Built-In Bottom Mount Smart Refrigerator with 18.82 cu. ft. Total Capacity
Miele MasterCool Series KFMC3846R - 36 Inch Panel Ready Built-In Bottom Mount Smart Refrigerator with 18.82 cu. ft. Total Capacity
+7

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Miele MasterCool Series KFMC3846R
Authorized
Dealer

Miele MasterCool Series
KFMC3846R
36 Inch Panel Ready Built-In Bottom Mount Smart Refrigerator with 18.82 cu. ft. Total Capacity, FoodView, Longlife AirClean System, Freeze&Cool, IceMaker, Water Dispenser, BrilliantLight Pro, M Touch Pro, Sabbath Mode, and ENERGY STAR® Certified: Right Hinge

Top Quality Store on Google
$1,000 Rebate
Bundle & Save up to 10%
quick specs
Sabbath Mode: Yes
Total Capacity: 18.82 Cu. Ft.
Width: 35 1/4 Inch
Depth: 24 Inch
Height: 85 1/2 Inch
WiFi: Yes
Smart Accessory Required: No
Stainless Steel Interior: Yes
Fingerprint Resistant: No
No. of Shelves: 4
Gallon Door Storage: Yes
ADA Compliant: No
Water Dispenser: Internal
Ice Maker: Yes
Warranty Terms: 2 years
?
View more
Hinge: Right Hinge
Left Hinge
Left Hinge
KFMC3846L
$14,499.00
In stock
Right Hinge
Right Hinge
KFMC3846R
$14,499.00
In stock
$14,499.00
Rebate(s): -$1,000.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
You Will Also Need:
6 Foot Stainless Steel Refrigerator Waterline Kit
+ $24.99
Current Offers
Miele: MasterCool 3 Refrigeration $1,000 Installation Savings Expires 12/31/2026 Miele: Kitchen Package Promotion Save up to 10% Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

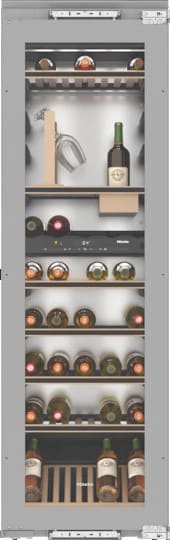

24 Inch Panel Ready Dual Zone Smart Wine Storage Refrigerator
Miele
24 Inch Panel Ready Dual Zone Smart Wine Storage Refrigerator
$5,669.00

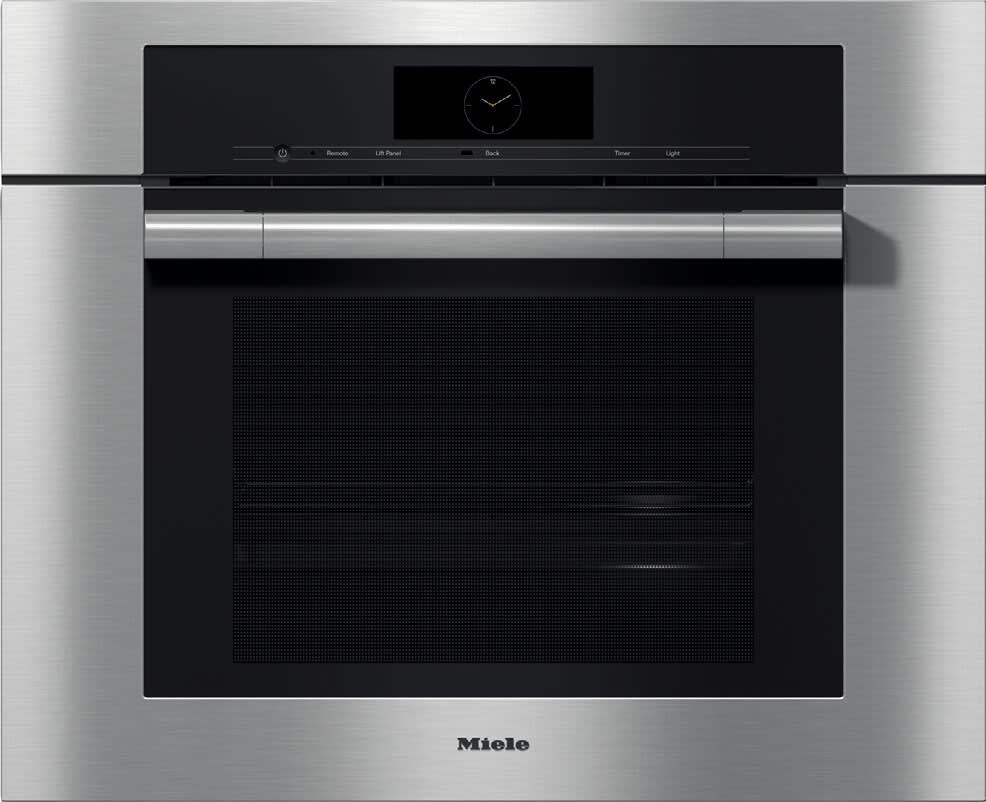

30 Inch Single Combi-Steam Smart Electric Wall Oven
Miele
30 Inch Single Combi-Steam Smart Electric Wall Oven
$9,299.00

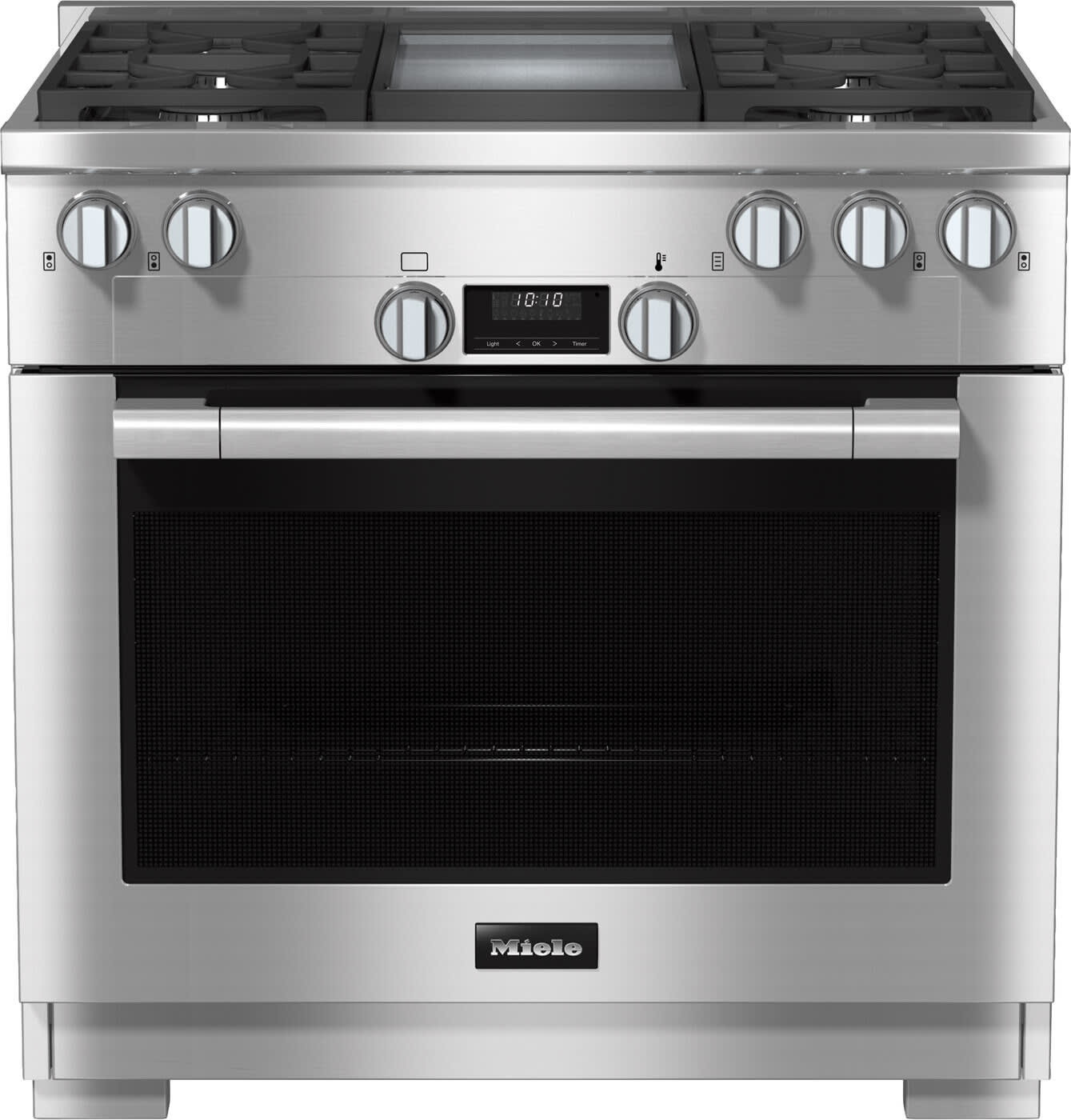

36 Inch Freestanding Gas Range
Miele
36 Inch Freestanding Gas Range
$9,999.00
24 Inch Full Console Built-In Smart Dishwasher
Miele
24 Inch Full Console Built-In Smart Dishwasher
$4,040.00
Product Information
Brand: Miele
Series: MasterCool Series
Model: KFMC3846R
Warranty Terms: 2 years
?
Appearance
Type: Built In
Style: Bottom Freezer
Undercounter: No
Double Freezer Drawers: Yes
Glass Door: No
Hinge Side: Right
Door Finish: Textured
Accepts Custom Panels: Yes
Wine Racks (Category): No
Color: Panel Ready
Door Color: Panel Ready
Interior Color: Stainless Steel
Freezer Drawers: Double
Door Hinge Covers/Hidden Hinges: Yes
Rollers: Yes
Leveling Legs: Yes
Column: No
Capacity
Total Capacity: 18.82 Cu. Ft.
Dimensions
Width: 35 1/4 Inch
Depth: 24 Inch
Height: 85 1/2 Inch
Cutout Width: 36 Inch
Cutout Depth: 25 Inch
Cutout Height: 84 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: None
Smart
WiFi: Yes
Alexa: Yes
Google Home: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
Smart Accessory Required: No
Installation
Flush Installation: Yes
Features
Stainless Steel Interior: Yes
Recessed Handles: No
Fingerprint Resistant: No
Smart Home / App Compatible: Yes
Remote Access: Yes
Usage: Residential
Garage Ready: No
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 4
No. of Fixed Shelves: 1
No. of Adjustable Shelves: 3
Spill Safe Shelves: Yes
No. of Door Bins: 3
Gallon Door Storage: Yes
Keurig Brewing System: No
Air Flow: Longlife AirClean System
Cooling System: DynaCool
Odor Control: Yes
Push to Open: No
Soft Close: Yes
Freezer Features
Defrost: Frost-Free
Quick Freeze: Yes
No. of Drawers: 2
Push to Open: No
Soft Close: Yes
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Approved for Commercial Use: No
Approved for Medical Use: No
Approved for Outdoor Use: No
Amps: 15
Voltage: 120 Volts
Water
Water Dispenser: Internal
Hot Water Dispenser: No
Sparkling Water Dispenser: No
Water Filtration: Yes
Settings
Digital Temperature Control: Yes
Convertible Freezer/Refrigerator: No
Ice
Ice Dispenser: No
Ice Maker: Yes
Secondary Ice Maker: No
GTIN
EAN: 4002516768647
Are you a Trade Pro? Join Now

Description

36 Inch Panel Ready Built-In Bottom Mount Smart Refrigerator with 18.82 cu. ft. Total Capacity
The Miele KFMC 3846 R is a premium, 18.82 cu. ft. refrigerator-freezer from the MasterCool Series, designed to be fully integrated into cabinetry. It features MasterFresh Pro for optimal food preservation, DynaCool for even air circulation, and NoFrost to prevent ice buildup. The unit also includes a water dispenser, ice maker, and smart functionalities like Miele@Home and FoodView for remote control. Its interior is lined with a ColdSteel stainless steel finish and illuminated by BrilliantLight LEDs.

Specifications

Construction Type
Built-in appliance:
Yes
Integrated appliance:
Yes
Door hinging:
Right
Convertible hinging:
Yes
Can be installed side by side:
Yes
Design
SmartLight:
Yes
Lighting:
BrilliantLight Pro
User Convenience
Freshness system:
MasterFresh Pro
FoodView (cameras):
3
Longlife AirClean system:
Yes
Water dispenser:
Yes
Number of IceMakers with plumbed water connection:
1
Freeze&Cool:
Yes
DuplexCool Pro:
Yes
FullAccess:
Yes
EasyClean:
Yes
MaxLoad hinge:
Yes
IceMaker with fresh-water connection:
Yes
DynaCool:
Yes
NoFrost:
Yes
NoFrost:
Yes
SoftClose:
Yes
SelfClose:
Yes
Networking with Miele@home:
Yes
Controls
Eco mode:
Yes
Precise adjustment:
Fridge and freezer temperature
SuperCool&AirClean:
Yes
QuickIce:
Yes
User interface:
M Touch Pro
Independent temperature regulation of fridge and freezer compartments:
Yes
SuperFrost:
Yes
Number of temperature zones:
3
Sabbath mode:
Yes
Holiday mode:
Yes
Fridge / Fridge Section
Height-adjustable, half-width tempered glass shelves:
4
of which gallon bins:
1
SlidingShelf:
Yes
Door rack for tins:
2
Number of crisper drawers:
2
Door rack for bottles:
1
Freezer / Freezer Section
Number of freezer baskets:
2
Efficiency and Sustainability
Energy Star:
Yes
Safety
Spill-proof glass shelves:
Yes
Acoustic door alarm:
Yes
Acoustic temperature alarm, freezer section:
Yes
Technical Data
Replacing lamps:
Customer Service
Number of phases:
1
Niche width min.:
36"
Niche width max.:
36"
Niche height min.:
84 1/8"
Niche height max.:
84 1/8"
Niche depth:
25"
Appliance width:
35 1/4"
Appliance height:
83 9/16" - 85 1/2"
Appliance depth:
24"
Door hinge technology:
Fixed door
Total usable capacity:
18.82 cu. ft.
Current consumption in milliamps (mA):
4000
Voltage in V:
110-120
Fuse rating in A:
15
Frequency in Hz:
60
Length of power cable in m:
9 (3.0)
Weight in lbs:
488
Accessories Supplied
Longlife AirClean filter:
Yes
Ice scoop:
Yes

Features

18.82 cu. ft. Total Capacity
  • This refrigerator provides a total storage space of 18.82 cubic feet, offering a generous amount of room for all your fresh and frozen foods.
FoodView
  • A feature of Miele@Home is that it uses a camera inside the refrigerator to take a photo of the interior every time the door is closed. You can then view the contents remotely via the Miele app, which helps make grocery lists.
Longlife AirClean System
  • This filter system actively works to neutralize odors and keep the air inside the refrigerator fresh, preventing the transfer of smells between different types of food.
Freeze&Cool
  • This advanced system allows a specific section of the freezer to be used as a convertible compartment. You can set it to either a freezer or a refrigeration temperature, providing flexible storage options for different types of food.
IceMaker
  • Located inside the freezer, the ice maker automatically produces and stores ice, ensuring you have a steady supply on hand.
Water Dispenser
  • The appliance includes a built-in dispenser that provides convenient access to chilled, filtered water without needing to open the refrigerator door.
BrilliantLight Pro
  • An enhanced version of Miele's interior lighting, this system uses LED strips to provide even, brilliant illumination across the entire interior, beautifully showcasing the contents from all angles.
M Touch Pro
  • The refrigerator is operated using an intuitive, high-resolution M Touch Pro display, which provides a sleek interface for adjusting settings and monitoring the appliance.
Sabbath Mode
  • This mode is designed for use during religious observances. When activated, it disables specific electrical functions, such as the interior lights, display, alarms, and the ice maker.
ENERGY STAR® Certified
  • The refrigerator meets the strict energy efficiency guidelines set by the U.S. Environmental Protection Agency, helping to reduce your energy consumption and lower utility bills.
Spill-Proof Glass Shelves
  • The shelves are constructed with glass and have raised edges. This design helps to contain any spills, preventing them from dripping down to other parts of the refrigerator and making cleanup easy.
SmartLight
  • This lighting system offers dynamic and adaptable lighting inside the refrigerator. It responds to changes in the environment and usage, providing optimal visibility whenever the door is opened.
Gallon Bins
  • The door shelves are extra-deep and wide, allowing you to easily store gallon-sized containers and other bulky items, maximizing storage space.
SlidingShelf
  • The refrigerator features a shelf that can be slid forward to provide easier access to items stored at the back. This makes it simple to retrieve food without having to rearrange everything on the shelf.
DynaCool
  • This advanced cooling system uses a fan to circulate cool air evenly throughout the entire refrigerator. This ensures a consistent temperature across all shelves, from top to bottom, keeping your food fresh no matter where it's stored.
NoFrost
  • The freezer section features a NoFrost system, which automatically prevents the buildup of ice and frost. This eliminates the need for manual defrosting, saving you time and effort.
Miele@home
  • This smart feature allows you to connect the refrigerator to your home Wi-Fi network. You can then use the Miele@home app to remotely control and monitor the appliance, receive alerts, and integrate it with other smart home devices.
MaxLoad Hinge
  • The door hinges are specially engineered to support heavy door panels, ensuring they can handle the weight of a custom cabinet front and a fully loaded interior without sagging or losing alignment.
Key Features
BrilliantLight
With BrilliantLight, your Miele appliance shines inside and out. Premium LED strips embedded in the side panels bathe the interior in soft, even illumination, ensuring everything is perfectly visible — even when the fridge is packed full. As you open the door, the light gently intensifies, giving you a beautifully clear and inviting view of your fresh ingredients.
DynaCool
DynaCool provides consistent temperature throughout the entire refrigerator, eliminating uneven cooling. With uniform conditions on every shelf, you no longer need to worry about where to place different types of food. Traditional cooling patterns—warmer air at the top and cooler air at the bottom—are now a thing of the past thanks to DynaCool's advanced circulation system.
M Touch® Controls
Miele’s trademarked M Touch® interface features an elegant, motorized full-touchscreen that rises into view for a sleek, uncluttered cooktop appearance when off. Navigate settings with a simple tap or swipe, utilizing clear text and symbols for intuitive use and superior visibility.
MasterFresh
Miele MasterCool drawers offer the perfect storage climate for your fresh foods. With the advanced SmartFresh system, temperatures remain especially low to lock in nutrients, while humidity levels are expertly tailored for fruits, vegetables, dairy, fish, and meat. The result? Your food stays fresh up to three times longer — so you can enjoy peak flavor and quality every time.
MaxLoad Hinge
Thanks to ultra-strong door hinges, even fully loaded refrigerator doors open effortlessly and smoothly. With doors that swing wide for maximum access, loading and unloading groceries becomes a simple, convenient task — no matter how packed your fridge is.
Miele@Home
Enhance your home’s intelligence and simplify your life by securely connecting your Miele appliances to your network, unlocking a range of convenient features. With an intuitive app, voice control, and seamless integration into your existing smart home system, Miele Cloud gives you complete control over your networked appliances.
NoFrost
Thanks to NoFrost, your freezer stays completely frost-free — no more icy build-up, no more tedious defrosting. Enjoy effortless maintenance and perfectly preserved frozen foods, every day.
SoftClose
Miele’s SoftClose system takes the hassle out of closing your refrigerator and freezer doors. Automatically engaging from a 30° angle, the doors close smoothly and quietly, preventing loud clinks or bangs from bottles and jars in the shelves. Experience the perfect blend of convenience, elegance, and peace of mind with every close.
