KitchenAid Commercial-Style KFDC506JPA - 36 Inch Freestanding Dual Fuel Smart Range

KitchenAid Commercial-Style KFDC506JPA - 36 Inch Freestanding Dual Fuel Smart Range Angle View

+12

Image Disclaimer

Authorized

Dealer

KitchenAid Commercial-Style

KFDC506JPA

36 Inch Freestanding Dual Fuel Smart Range with 6 Sealed Burners, 5.1 cu. ft. True Convection Oven, Ultra Power™ Dual-Flame Burners, Self-Clean, and Star K: Passion Red

4.1

Average rating of
91 reviews

Top Quality Store on Google

quick specs

Sabbath Mode: Yes

Fingerprint Resistant: No

Cooktop: Sealed Burner

Drawer: None

Width: 35 7/8 Inch

Depth: 27 3/4 Inch

Height: 36 Inch

Alexa: Yes

Google Home: Yes

Number of Burners: 6

Primary Oven Capacity: 5.1 Cu. Ft.

Continuous Grates: Yes

Convection: Yes

Self-Cleaning: Yes

Steam Clean: No

Glide Rack(s): Yes

Temperature Probe: Yes

Color: Passion Red

Passion Red

KFDC506JPA

$8,098.00

^$8,098^.00

MSRP: ~~$8,999.00~~

You save $901.00

You Will Also Need:

4' Gas Appliance Installation Kit

+ $39.99

Electric Cord Kit - 40 Amp, 4 ft.

+ $49.99

Have questions? Chat with us!

Recommended Accessories & Add-ons

KitchenAid

Commercial Style Under Cabinet Range Hood

$1,538.00

KitchenAid

24 Inch Fully Integrated Built-In Dishwasher

$1,098.00

KitchenAid

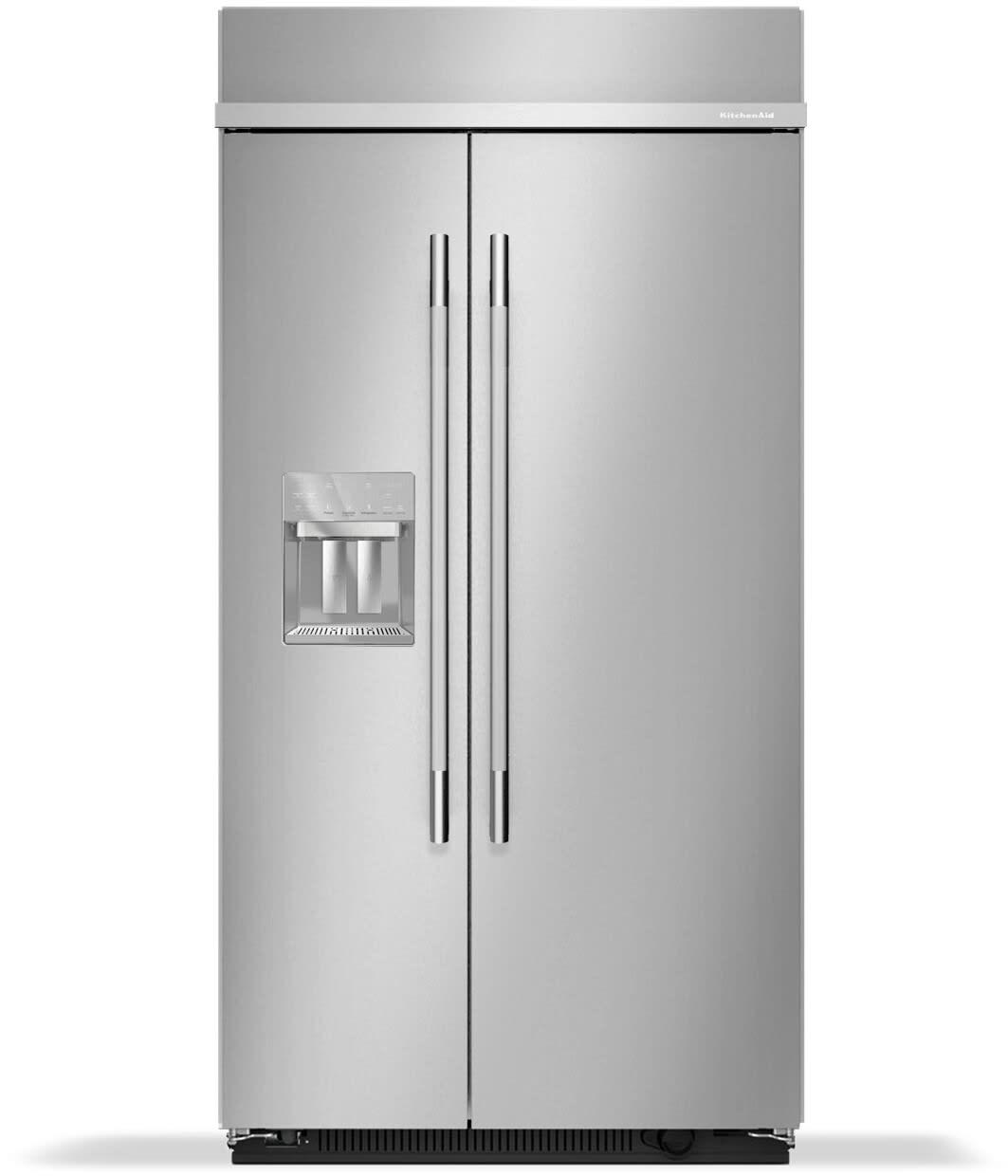

42 Inch Built-In Side-by-Side Refrigerator

$10,348.00

Product Information

Brand: KitchenAid

Series: Commercial-Style

Model: KFDC506JPA

Appearance

Fuel Type: Dual Fuel

Fuel Subtype: Natural Gas

Style: Freestanding

Color: Red

Fingerprint Resistant: No

Stainless Steel Handle: Yes

Cooktop: Sealed Burner

Cooktop Control Type: Knobs

Oven Control Type: Knobs

Viewing Window: Yes

Double Oven: No

Drawer: None

Clock: No

Downdraft Venting: No

Dimensions

Width: 35 7/8 Inch

Depth: 27 3/4 Inch

Height: 36 Inch

Interior Width: 29 9/10 Inch

Interior Depth: 16 3/10 Inch

Interior Height: 14 3/10 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Smart

WiFi: Yes

Alexa: Yes

Google Home: Yes

Remote Control: Yes

Remote Monitoring: Yes

App Integration: KitchenAid™ App, Google Assistant, Amazon Alexa

Capacity

Number of Burners: 6

Primary Oven Capacity: 5.1 Cu. Ft.

Burner

Simmer Burner: Yes

Power Burner: Yes

Burner 1 Output: 20000

Burner 2 Output: 15000

Burner 3 Output: 15000

Burner 4 Output: 20000

Burner 5 Output: 5000

Burner 6 Output: 15000

Gas Cooktop Features

Continuous Grates: Yes

Dishwasher Safe Grates: Yes

Cooktop Accessory: No Accessory

Oven Features

Digital Temperature Display: No

Timer: No

Delay Bake: No

Convection: Yes

Proof Mode: Yes

Self-Cleaning: Yes

Self-Cleaning Type: High Heat

Steam Clean: No

Racks: 3

Glide Rack(s): Yes

Temperature Probe: Yes

Broiler Element Location: Top

Broiler Pan Included: No

Interior Oven Light: Yes

Removable Door: Yes

Technical Details

ADA Compliant: No

LP Conversion: Yes - Kit Included

Amps: 40

Voltage: 240/208 Volts

GTIN

UPC: 883049529165

Description
Specifications
Features
Rebates
Reviews

Description

36 Inch Freestanding Dual Fuel Smart Range with 6 Sealed Burners
Expand your skills with a 36-inch KitchenAid® Commercial Style Range with six burners. This dual-fuel range combines a gas cooktop with the even baking of an electric oven. Two 20,000 BTU Ultra Power™ Dual-Flame Burners offer the power and precision to successfully sear, simmer, stir-fry, and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting. With Three-Level Convertible Grates, you can adjust the heat to suit your cooking style. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer, and melt or remove it to nestle a round-bottom wok for stir-fry. When inspiration strikes, it's easy to get cooking with the KitchenAid app and stay hands-on or hands-off when you control your oven with your Google Assistant or an Alexa-enabled device.

Specifications

Quick Specs

Size:

36"

Color:

Passion Red

Range Type:

Freestanding

Fuel Type:

Dual Fuel

Natural Gas Convertible:

Yes

Power Outage Compatible:

Yes

LP Convertible:

Yes - Kit Included

Power Cord Included:

Cooktop Features

Cooktop Surface Material:

Porcelain Coated Steel

Number of Cooking Element-Burners:

Number of Grates:

Ignition Type:

Flame-Sensing™ Re-ignition

Heating Element On Indicator Light:

Hot Surface Indicator Light:

Grate Details:

Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates

Auto Re-ignition:

Yes

Cooktop Control Knob Type:

Metal

Cooktop Control Location:

Front

Cooktop Surface Color:

Black

Front Left Output:

20,000 BTU

Back Left Output:

15,000 BTU

Back Right Output:

15,000 BTU

Front Right Output:

20,000 BTU

Middle Back Output:

5,000 BTU

Middle Front Output:

15,000 BTU

Total Burner BTU:

90,000 BTU

Oven Features

Oven Capacity:

5.1 cu. ft.

Oven Control Type:

Knobs

Oven Control Location:

Front

Number of Oven Racks:

Number of Rack Guides:

Oven Light Type:

Halogen

Oven Light Switch Location:

Oven Control

Power On Indicator Light:

Yes

Automatic Convection Conversion Temperature Adjust:

Yes

Automatic Shut-Off:

Yes

Broiler Location:

Top Center

Convection Functions:

Bake, Broil, Roast

Keep Warm Setting:

Yes

Proofing:

Yes

Door Removable:

Yes

Hidden Bake Element:

Yes

Smart Features

Connectivity:

Amazon Alexa, Android, Google Assistant, iOS

Smart Appliance:

Yes

Works With:

App, Remote Access, Voice Controlled, WiFi

Dimensions

Grates Top Height:

37 3/16"

Width:

35 7/8"

Depth with Handle:

30 1/4"

Cooking Surface Top Height:

36"

Door Top Height:

27 7/8

Depth with Door Fully Open:

46 1/2"

Depth with Control Panel Overhang:

27 3/4"

Depth with Door:

27"

Toe-Kick Height:

6 5/8"

Oven Interior Depth:

16 3/10"

Oven Interior Height:

14 3/10"

Oven Interior Width:

29 9/10"

Gross Weight:

444 lb.

Net Weight:

389 lb.

Certifications

ADA Compliant:

CUL:

Yes

Star K Certified:

Yes

UL:

Yes

Features

6 Sealed Burners

It provides 5,000 - 20,000 BTUs to meet various cooking requirements.

5.1 Cu. Ft. Capacity

Provides extra room for multiple dishes, so you can cook a whole turkey or roast and sides all at once.

Two 20,000 BTU Ultra Power™ Dual-Flame Burners

Give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

5,000 BTU Simmer & Melt Burner

With a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

Three 15,000 BTU Burners

Deliver the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.

Three-Level Convertible Grates

With removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

EasyConvect™ Conversion System

Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.

WiFi

Lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

SatinGlide™ Roll-Out Extension Rack

Makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

Dual-Concentric Oven Knob

Provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature.

Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

KitchenAid® Handle Medallion Kit (Sold Separately)

Lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone.

Each kit includes two medallions and a 1/8" hex Allen wrench for easy replacement (sold separately).

Dual Fuel Range

Satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

Star-K Certified

To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.

Other Features

Self-Clean Oven

Automatic Shut-Off

Hidden Bake Element

Flame-Sensing™ Re-ignition

Power On Indicator Light

Removable Door

Key Features

EasyConvect™ Conversion System

The EasyConvect™ Conversion System automatically converts conventional baking temperatures and cook times to their convection equivalents, simplifying the use of convection for any recipe.

Even-Heat™ True Convection

Even-Heat™ True Convection features a distinctive bow-tie design with a heating element and fan that evenly circulates hot air throughout the oven, ensuring optimal temperatures for perfectly baked goods, tender roasts, and flavorful vegetables.

SatinGlide® System

SatinGlide® System adds a touch of luxury. The ball bearing rollers and glides provide smooth, effortless movement, even when the drawers are fully loaded.

Ultra Power™ Dual-Flame Burners

Ultra Power™ Dual-Flame Burners offer precise control over powerful highs, steady lows, and everything in between. The versatile dual-flame design lets you sear, sauté, simmer, and sizzle on a single burner.
