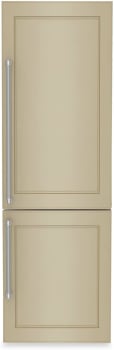

KitchenAid KBBX102MPA - 22 Inch Panel Ready Built-In Bottom Mount Refrigerator in Front View

KitchenAid KBBX102MPA - 22 Inch Panel Ready Built-In Bottom Mount Refrigerator in Angled View

KitchenAid KBBX102MPA - 22 Inch Panel Ready Built-In Bottom Mount Refrigerator in Opened View

Image Disclaimer

Authorized

Dealer

KitchenAid

KBBX102MPA

22 Inch Panel Ready Built-In Bottom Mount Refrigerator with 8.84 cu. ft. Total Capacity, ExtendFresh™ Temperature Management System, Max Cool and ENERGY STAR® Certified

Name: KitchenAid KBBX102MPA
Brand: KitchenAid
SKU: KBBX102MPA
Price: 3868 USD

Be the first to write a review

Top Quality Store on Google

quick specs

Sabbath Mode: No

Refrigerator Capacity: 6.45 Cu. Ft.

Freezer Capacity: 2.39 Cu. Ft.

Total Capacity: 8.84 Cu. Ft.

Width: 21 15/16 Inch

Depth: 21 7/16 Inch

Height: 69 11/16 Inch

WiFi: No

Smart Accessory Required: No

No. of Shelves: 3

ADA Compliant: No

Water Dispenser: No

Ice Maker: No

^$3,868^.00

MSRP: ~~$4,299.00~~

You save $431.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

KitchenAid

24 Inch Built-In Undercounter Dual Zone Beverage Center

$2,898.00

KitchenAid

24 Inch Undercounter Dual Zone Wine Cellar

$2,748.00

KitchenAid

24 Inch Fully Integrated Dishwasher

$1,798.00

Product Information

Brand: KitchenAid

Model: KBBX102MPA

Appearance

Type: Built In

Style: Bottom Freezer

Counter Depth: Yes

Glass Door: No

Hinge Side: Right

Field Reversible Doors: Yes

Door Finish: Smooth

Accepts Custom Panels: Yes

Color: Panel Ready

Door Color: Panel Ready

Door Hinge Covers/Hidden Hinges: Yes

Capacity

Refrigerator Capacity: 6.45 Cu. Ft.

Freezer Capacity: 2.39 Cu. Ft.

Total Capacity: 8.84 Cu. Ft.

Dimensions

Width: 21 15/16 Inch

Depth: 21 7/16 Inch

Height: 69 11/16 Inch

Cutout Width: 21 15/16 Inch

Cutout Depth: 21 7/8 Inch

Cutout Height: 69 15/16 Inch

Shabbos Compliance

Sabbath Mode: No

Smart

WiFi: No

Smart Accessory Required: No

Features

Usage: Residential

Garage Ready: No

LED Lighting: Yes

Refrigerator Features

Type of Shelves: Glass

No. of Shelves: 3

No. of Door Bins: 5

Humidity Controlled Crispers: 1

Cooling System: ExtendFresh™ Temperature Management System

Freezer Features

Defrost: Automatic

No. of Shelves: 1

No. of Drawers: 2

Technical Details

Energy Star Rated: Yes

ADA Compliant: No

Approved for Commercial Use: No

Approved for Medical Use: No

Approved for Outdoor Use: No

Amps: 15

Voltage: 115 Volts

Water

Water Dispenser: No

Hot Water Dispenser: No

Sparkling Water Dispenser: No

Water Filtration: No

Settings

Digital Temperature Control: Yes

Convertible Freezer/Refrigerator: No

Ice

Ice Dispenser: No

Ice Maker: No

Secondary Ice Maker: No

GTIN

UPC: 883049637532

Description
Specifications
Features
Reviews

Description

22 Inch Panel Ready Built-In Bottom Mount Refrigerator with 8.84 cu. ft. Total Capacity
Make the most of a compact kitchen with the KitchenAid KBBX102MPA. ExtendFresh™ temperature management helps maintain freshness, while the FreshChill™ Temperature-Controlled Drawer and humidity-controlled crisper provide dedicated storage for different ingredients. A Slide-Away Shelf accommodates taller containers, and the sliding freezer tray keeps frequently used frozen items within reach. Panel-ready doors blend with surrounding cabinetry, while LED lighting and ENERGY STAR® certified efficiency complete this thoughtfully designed refrigerator.

Specifications

General Details

Brand:

KitchenAid

Model:

KBBX102MPA

Refrigerator Type:

Bottom-Freezer

Installation Type:

Built-In

Finish:

Panel Ready

Custom Panels and Handles:

Not Included

Door Swing:

Reversible

Cooling Type:

Single Evaporator

Interior Lighting:

LED

Capacity

Refrigerator Capacity:

6.45 cu. ft.

Freezer Capacity:

2.39 cu. ft.

Total Capacity:

8.84 cu. ft.

Refrigerator Details

Door Bins:

Glass Shelves:

Slide-Away Shelf:

Yes

Humidity-Controlled Crisper:

FreshChill™ Temperature-Controlled Drawer:

Wine and Beverage Holder:

Yes

Wine and Beverage Holder Capacity:

Up to 5 Standard Beverage Bottles

Freezer Details

Storage Drawers:

Sliding Freezer Tray:

Automatic Ice Maker:

Controls and Performance

Control Type:

Electronic Touchpad

ExtendFresh™ Temperature Management System:

Yes

Max Cool:

Yes

Max Cool Automatic Shutoff:

6 Hours

Max Freeze:

Yes

Max Freeze Automatic Shutoff:

26 Hours

Automatic Defrost:

Yes

Door Ajar/Open Alarm:

Yes

Certifications and Energy

ENERGY STAR® Certified:

Yes

Annual Energy Consumption:

393 kWh

Dimensions and Weight

Nominal Width:

22"

Width:

21 15/16"

Depth:

21 7/16"

Height:

69 11/16"

Net Weight:

132.3 lbs

Shipping Weight:

135.6 lbs

Electrical Requirements

Voltage:

115 V

Frequency:

60 Hz

Circuit Requirement:

15 or 20 Amp

Separate Circuit:

Recommended

Receptacle:

Grounded 3-Prong

Optional Accessories

Stainless Steel Panel Kit with Handles - Left Swing:

KBXL102MSS

Stainless Steel Panel Kit with Handles - Right Swing:

KBXR102MSS

Features

Panel-Ready Design

Allows the refrigerator to be customized to match surrounding cabinets with custom panels and handles (Custom panels and handles not included).

ExtendFresh™ Temperature Management System

Helps keep ingredients fresh by using sensors that continually adjust temperatures in the refrigerator and freezer by monitoring the airflow between them.

FreshChill™ Temperature-Controlled Drawer

Makes it easy to customize storage temperatures for different types of ingredients, helping to maintain freshness. Simply turn the dial to choose from presets for Meat and Fish, Dairy, or Produce.

Humidity-Controlled Crisper

Provides dedicated space for produce with the ability to adjust humidity levels. Set the dial to Vegetables for high humidity that helps maintain crispness; Fruit for low humidity that helps maintain freshness; or Mixed to balance the needs of both.

Slide-Away Shelf

Adjusts to accommodate items of different heights. It can be used as an additional full-depth shelf or the front half can be pushed back to make room for tall items like pitchers and carafes below.

Wine and Beverage Holder

This holder features a notched design that holds up to five standard beverage bottles and sits against the back of the shelf so it's out of the way when not needed. Plus, it can easily be moved to any of the shelf spaces.

Max Cool

Temporarily drops the refrigerator to the coldest setting, helping to chill groceries, beverages, and prepped ingredients. After 6 hours, the temperature will automatically reset to the previous setting.

Sliding Freezer Tray

Keep frequently used items like frozen fruit for breakfast smoothies or homemade frozen sauces for quick dinners in reach. The tray slides out and in, making it easy to find and grab even small containers in the back.

Max Freeze

Lowers the freezer to its coldest setting to help freeze newly added items. The previous temperature setting resumes automatically after 26 hours.

LED Interior Lighting

Illuminates both compartments to make food easier to locate.

Touchpad Controls

Adjust refrigerator and freezer settings using an illuminated electronic control panel.

Reversible Door Swing

The doors can be configured for left- or right-hand opening to suit your kitchen layout.

ENERGY STAR® Certified

Meets ENERGY STAR® energy-efficiency requirements, with estimated annual electricity use of 393 kWh.

Key Features

ExtendFresh™ Temperature Management System

The ExtendFresh™ Temperature Management System utilizes sensors to monitor airflow between the refrigerator and freezer, continuously adjusting temperatures to keep ingredients fresh.

FreshChill™ Temperature-Control

FreshChill™ Temperature-Control easily adjust storage temperatures to suit various ingredients, helping to preserve their freshness. Simply turn the dial to select from presets for Meat and Fish, Dairy, or Produce.
