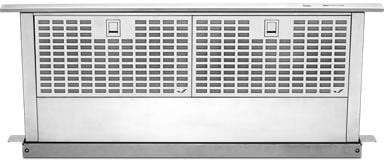

JennAir Euro-Style Series JXD7030YS - 30 Inch Ducted Downdraft Hood
JennAir Euro-Style Series JXD7030YS - 30 Inch Ducted Downdraft Hood
JennAir Euro-Style Series JXD7030YS - Sample Installation
JennAir Euro-Style Series JXD7030YS - In-Use View
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
JennAir Euro-Style Series JXD7030YS
Authorized
Dealer

JennAir Euro-Style Series
JXD7030YS
30 Inch Downdraft Range Hood with 4-Speeds, 600 CFM Blower, Push Button, Dishwasher-Safe Premium Mesh Filters, 14 Inch Rise, Reversible Motor Box, Hidden Slide Controls, Prop 65, UL, and ENERGY STAR® Qualified

Top Quality Store on Google
Bundle & Save up to 15%
Lower Price in Cart
quick specs
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 30 Inch
Depth: 20 Inch
Height: 28 7/8 Inch
WiFi: No
CFM: 600 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7.9 Sones
Duct Size: 6 Inch
Number of Fan Speeds: 4
Dishwasher Safe Filters: Yes
View more
$2,399.00
Instant Savings: -$119.95
OR
FREE Delivery Available
Current Offers
JennAir: Curate Your Home Rebate Save up to 15% Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: JennAir
Series: Euro-Style Series
Model: JXD7030YS
Appearance
Type: Downdraft
Color: Stainless Steel
Fingerprint Resistant: No
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 30 Inch
Depth: 20 Inch
Height: 28 7/8 Inch
Smart
WiFi: No
Smart Accessory Required: No
Capacity
CFM: 600 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7.9 Sones
Duct Size: 6 Inch
Features
Number of Fan Speeds: 4
Filter Type: Mesh
Dishwasher Safe Filters: Yes
Technical Details
Energy Star Rated: Yes
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 883049222424
EAN: 0883049222424
Are you a Trade Pro? Join Now

Description

30 Inch Downdraft Range Hood with 4-Speeds
This Jenn-Air® luxury telescoping downdraft ventilation offers minimal design and powerful performance right at the cooking surface. Designed to work with smaller cooking appliances, the sleek telescoping downdraft vent appears at the touch of a button and elegantly retracts back into the countertop when not in use.

Specifications

Configuration and Overview
Hood Type:
Retractable Downdraft
Size:
30"
Controls
Control Type:
Push Button
Control Location:
Hidden
Details
Material (2):
Stainless Steel
Material:
Stainless Steel
Ventilation System
Blower Type:
Centrifugal
Duct Direction:
Vertical
CFM Motor Class:
600
Duct Type:
Round
Filters:
Dishwasher-Safe Grease Filters
Sound Max Speed Sones:
7.9
Venting:
Exterior
Number of Speeds:
4
Duct Outlet Size (in.):
3 1/4" x 10"
Certifications
Prop 65:
Standard
Energy Star® Qualified:
ENERGY STAR® Qualified
UL:
UL
Electrical Specifications
Volts:
120V
Amps:
15A
Frequency:
60Hz
Dimensions & Weight
Carton Depth:
33 1/2"
Carton Height:
21"
Carton Width:
35"
Depth:
20"
Height:
28 7/8"
Width:
30"
Gross Weight:
93 lbs
Warranty
Parts and Labor:
1 Year

Features

600 CFM High-Performance Blower
  • A single centrifugal blower motor design allows the ventilation system to operate at up to 600 CFM to quickly remove smoke, steam and cooking odors.
14-Inch Rise
  • Vent rises a full 14 inches (35.6cm), so it's far enough above the cooktop to capture steam from tall stockpots and other cookware.
Reversible Motor Box
  • Designed for flexibility, the reversible motor box can be positioned to face the front or back of cabinets to accommodate more installation options.
Four Fan Speed Settings
  • Four different settings on this luxury telescoping downdraft ventilation allow you to control the ventilation level for optimum performance and energy efficiency.
Dishwasher-Safe Premium Mesh Filters
  • These aluminum mesh filters, which effectively capture smoke, grease and cooking odors as they're drawn through the hood, can be easily cleaned in the dishwasher.
6-Inch Round Exterior Venting
  • The 6-inch round exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.
3 1/4" x 10" Rectangular Exterior Venting
  • Allows ductwork to extend through an outer wall or the roof of a home.
Hidden Slide Controls
  • This luxury telescoping downdraft ventilation achieves its sleek appearance with controls that are hidden from sight.
Automatic Shutoff When Retracted
  • This feature provides peace of mind by ensuring that the blower will always be turned off once the hood has been lowered into the countertop.
Integrated Styling
  • This luxury telescoping downdraft ventilation, which integrates into countertops and islands, allows you to achieve a streamlined look.
Slim Profile
  • The telescoping downdraft ventilation's slim profile takes up minimal space on a countertop or island.
