JennAir JBBFX22NMX - 22 Inch Panel Ready Built-In Bottom Freezer Refrigerator in Front View
JennAir JBBFX22NMX - 22 Inch Panel Ready Built-In Bottom Freezer Refrigerator in Front View
JennAir JBBFX22NMX - 22 Inch Panel Ready Built-In Bottom Freezer Refrigerator in Used View
JennAir JBBFX22NMX - 22 Inch Panel Ready Built-In Bottom Freezer Refrigerator in Interior Lighting View
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
JennAir JBBFX22NMX
Authorized
Dealer

JennAir
JBBFX22NMX
22 Inch Panel Ready Built-In Bottom Freezer Refrigerator with 8.8 cu. ft. Total Capacity, Precision Temperature Management™ System, 31 dBA Quiet Operation and ENERGY STAR® Certified

Top Quality Store on Google
Bundle & Save up to 15%
Lower Price in Cart
quick specs
Refrigerator Capacity: 6.45 Cu. Ft.
Freezer Capacity: 2.39 Cu. Ft.
Total Capacity: 8.8 Cu. Ft.
Width: 21 15/16 Inch
Depth: 21 7/16 Inch
Height: 69 11/16 Inch
WiFi: No
Smart Accessory Required: No
No. of Shelves: 3
ADA Compliant: No
Water Dispenser: No
View more
$4,299.00
Instant Savings: -$214.95
OR
FREE Delivery Available
Current Offers
JennAir: Curate Your Home Rebate Save up to 15% Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

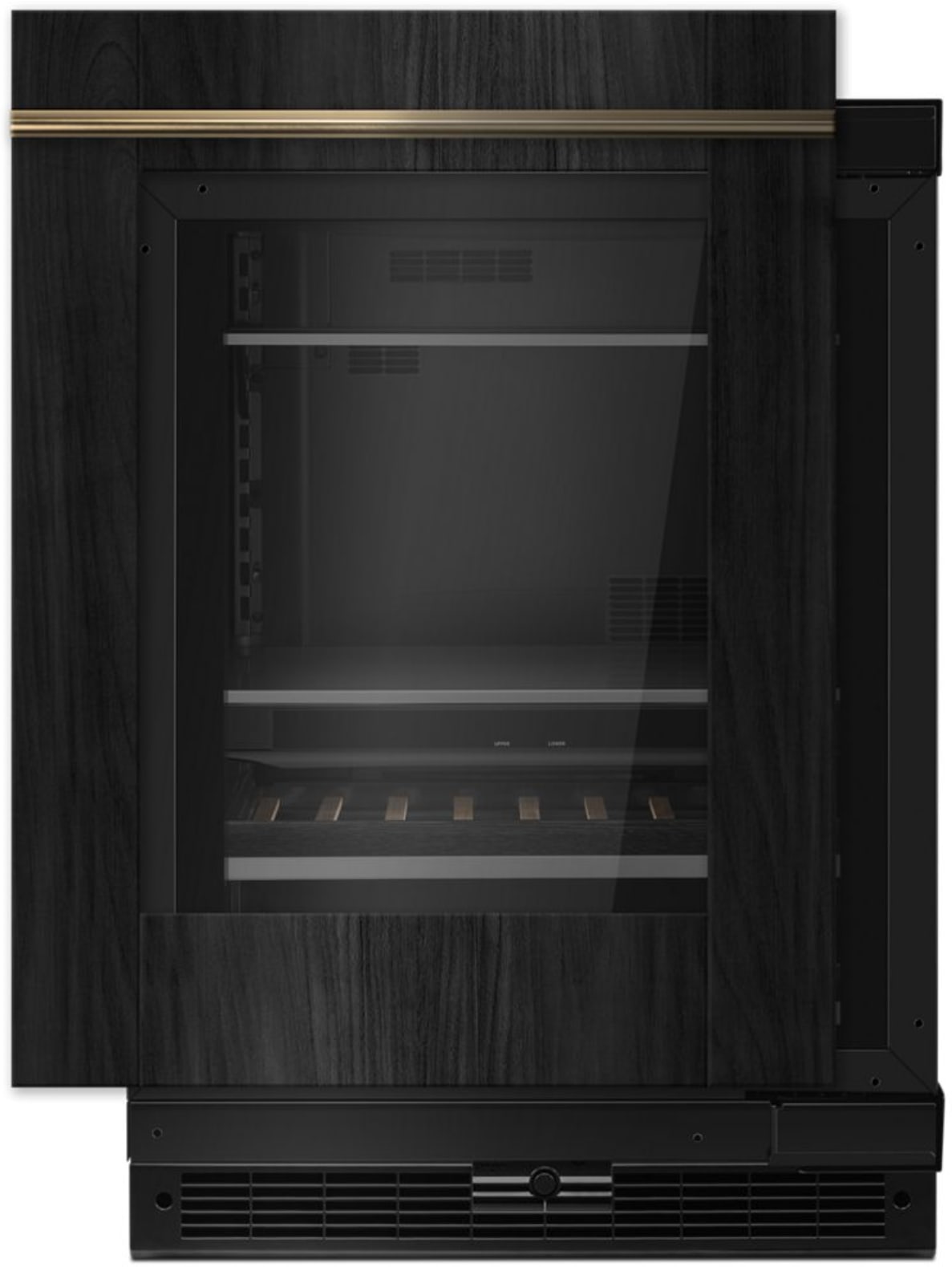

24 Inch Built-In Panel Ready Undercounter Beverage Center
JennAir
24 Inch Built-In Panel Ready Undercounter Beverage Center
$3,399.00
24 Inch Built-In Undercounter Dual Zone Wine Cooler
JennAir
24 Inch Built-In Undercounter Dual Zone Wine Cooler
$3,499.00

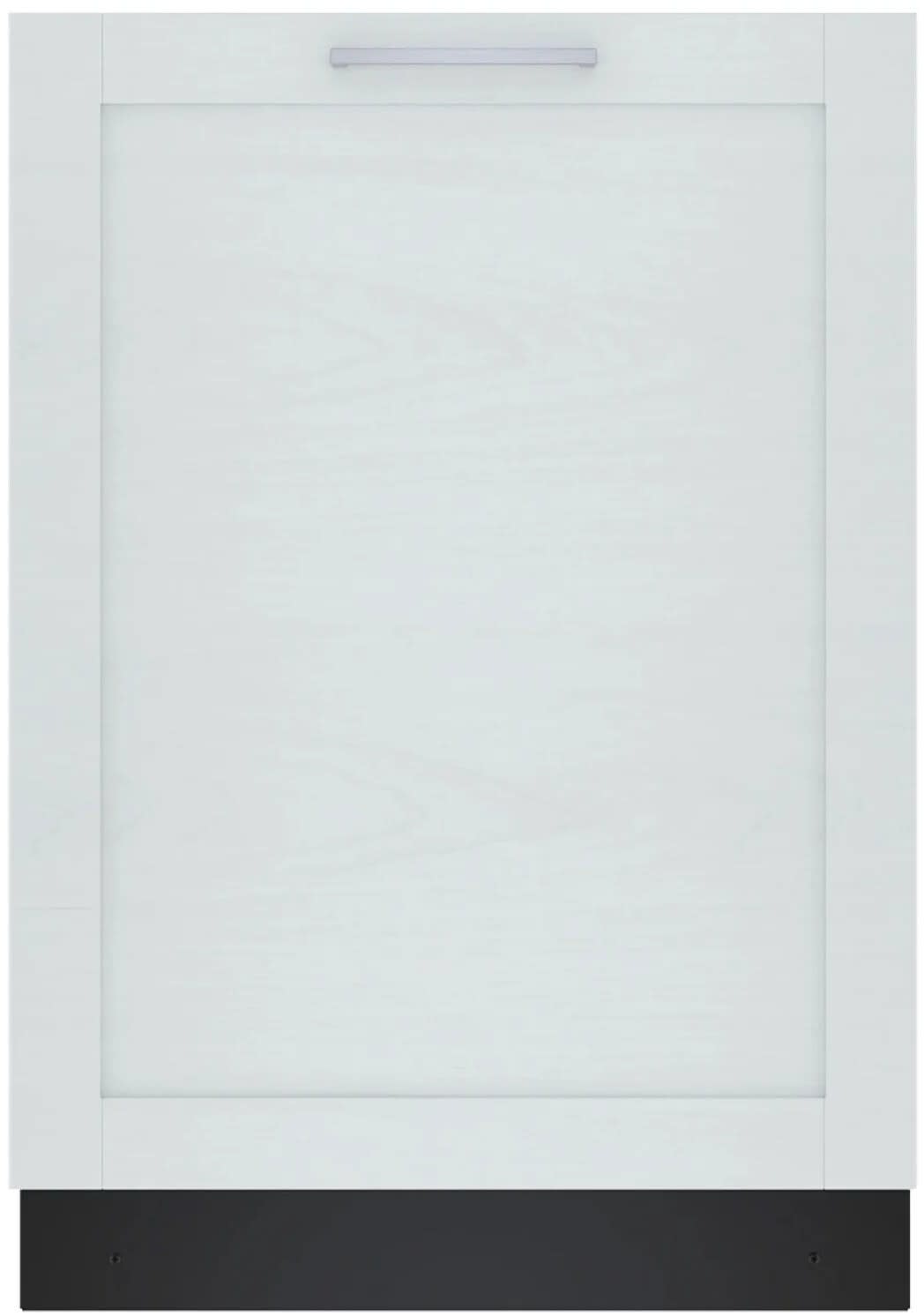

24 Inch Fully Integrated Built-In Panel Ready Smart Dishwasher
Bosch
24 Inch Fully Integrated Built-In Panel Ready Smart Dishwasher
$1,399.00
Product Information
Brand: JennAir
Model: JBBFX22NMX
Appearance
Type: Built In
Style: Bottom Freezer
Undercounter: No
Glass Door: No
Hinge Side: Right
Door Finish: Smooth
Accepts Custom Panels: Yes
Wine Racks (Category): Yes
Color: Panel Ready
Door Color: Panel Ready
Door Hinge Covers/Hidden Hinges: Yes
Capacity
Refrigerator Capacity: 6.45 Cu. Ft.
Freezer Capacity: 2.39 Cu. Ft.
Total Capacity: 8.8 Cu. Ft.
Dimensions
Width: 21 15/16 Inch
Depth: 21 7/16 Inch
Height: 69 11/16 Inch
Smart
WiFi: No
Smart Accessory Required: No
Installation
Flush Installation: Yes
Features
Usage: Residential
LED Lighting: Yes
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 3
No. of Door Bins: 5
Humidity Controlled Crispers: 1
Touch Screen: Yes
Cooling System: Precision Temperature Management™ System
Odor Control: Yes
Freezer Features
Defrost: Automatic
Type of Shelves: Plastic
No. of Shelves: 1
No. of Drawers: 2
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Approved for Commercial Use: No
Approved for Medical Use: No
Approved for Outdoor Use: No
Amps: 15
Voltage: 120 Volts
Water
Water Dispenser: No
Hot Water Dispenser: No
Sparkling Water Dispenser: No
Water Filtration: Yes
Settings
Digital Temperature Control: Yes
Convertible Freezer/Refrigerator: No
Ice
Ice Dispenser: No
GTIN
UPC: 883049637525
EAN: 0883049637525
Are you a Trade Pro? Join Now

Description

22 Inch Built-In Bottom Freezer Refrigerator with 8.8 cu. ft. Total Capacity
Captivate with a refrigerator that quietly and seamlessly blends into the background. Designed to integrate into small kitchens and unique spaces, the Panel-Ready options allow you to match the exterior to your aesthetics. With features including the Precision Temperature Management™ System, this refrigerator offers optimal performance to fit your lifestyle.

Specifications

Product Overview
Refrigerator Type:
Built-In Bottom Mount Freezer
Freezer Volume:
2.39 Cu. Ft.
Refrigerator Volume:
6.45 Cu. Ft.
Total Volume:
8.8 Cu. Ft.
Cooling Type:
Single Evaporator
Counter Depth:
Yes
Door Finish:
Smooth
Base Grille Color:
White
Cabinet Color:
White
Door Color:
Panel Ready
Door Style:
Flat
Reversible Door:
Yes
Cabinet Finish:
Smooth
Hidden Hinge:
Yes
Number Of Doors:
2
Fingerprint Resistant:
No
Dispenser Type:
No Dispenser
Controls
Automatic Defrost:
Yes
Control Location:
Interior Up Front
Control Type:
Electronic Touch
Door Ajar/Open Alarm:
Yes
Max Cool/Fast Cool:
Yes
Temperature Range:
-5/+5 FC 33/45 RC
Sabbath Mode:
No
Water Filter Indicator/Reset:
No
Control Lockout:
Yes
Refrigerator Details
Interior Finish:
White Glossy
Temperature-Controlled Drawers:
1 Full-Width
Number Of Interior Shelves:
3
Shelf Supports:
Molded
Humidity-Controlled Crispers:
1 Full-Width
Conventional Shelves:
1 Flip Glass, 1 Fixed Full-Width Glass
Door Bins:
1 Dairy, 1 Fixed Full-Width,3 Fixed Partial-Width
Refrigerator Lighting:
LED
Freezer Details
Door Type:
Swing
Light:
LED
Freezer Type:
Standard
Freezer Drawer/Basket:
1 Full Width Lower Plastic, 1 Full Width Upper Plastic
Freezer Number Of Shelves:
1
Shelves:
1 Fixed Full-Width Plastic
Freezer Lighting:
LED
Freezer Compartment Type:
Standard
Freezer Door Type:
Swing
Freezer Shelves:
1 Fixed Full-Width Plastic
Electrical Details
Volts:
110/120
Amps:
16
Certifications
ADA Compliant:
No
ENERGY STAR® Qualified:
Yes
UL:
Yes
Energy Rating:
393 KWH/Year
Star K Certified:
No
Dimensions & Weights
Width:
21 15/16"
Depth:
21 7/16"
Height:
69 11/16"
Cutout Width:
22 1/16"
Cutout Height:
69 15/16"
Carton Width:
23 1/2"
Carton Depth:
23 15/16"
Carton Height:
72 7/16"
Net Weight:
291.67 lbs.
Gross Weight:
299.83 lbs.

Features

8.8 cu. ft. Total Capacity
  • With a generous 8.8 cubic feet of total capacity, this Bottom Freezer Refrigerator offers ample space to store your groceries, ensuring you have plenty of room for all your favorite foods and beverages.
Precision Temperature Management™ System
  • This sensor-controlled system manages the climate in the refrigerator and freezer, helping to keep your ingredients at their ideal preservation temperatures. The smooth-running refrigerator avoids abrupt start and stop cycles to maintain quiet tranquility
Quiet Refrigeration
  • Running at 31 dBA, this refrigerator operates quietly without sacrificing performance.
Fully Flush & Integrated Design
  • With a stealth flush door and an articulating hinge, this built-in refrigerator goes incognito until open, enabling the refrigerator to install flush with cabinetry to offer a seamless appearance.
Temperature Controlled Pantry Drawer
  • Keep a variety of ingredients chilled, from hors d'oeuvres to farmer's market produce. Select from three preset options to meet your desires.
Humidity Controlled Crisper Drawer
  • A humidity-controlled crisper drawer creates an optimal food preservation environment using a tight gasket seal.
Sliding Freezer Storage Tray
  • While entertaining or preparing high-quality foods, easily access essential frozen ingredients with a sliding storage tray.
LED Lighting
  • Illuminate the interior of the refrigerator and freezer for increased visibility when finding different ingredients anywhere in your appliance.
Adjustable Door Bins & Shelving
  • Expertly organize your foods inside the cavity with a set of versatile solutions designed with utility. Adjust the interior of the refrigerator to fit your lifestyle.
Wine Bottle Rack
  • Chill and store up to 5 bottles of wine or spirits in the refrigerator with integrated storage.
Panel Ready
  • Customize the exterior of your refrigerator to match the desired aesthetics of your kitchen-including the integrated look of custom wood cabinetry or accessory stainless panel kits and handles (sold separately).
Fast Cool
  • Plummet internal temperatures to their lowest point for 6 hours with ease to ensure your fresh ingredients and produce reach their ideal temperature.
Fast Freeze
  • Activate a blast of cold air into the freezer for the ideal frozen environment.
ENERGY STAR® Certified
  • This JennAir® built-in refrigerator is ENERGY STAR® certified.
Experts at the Ready
  • JennAir's crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you-from sales to installation to ownership.
Serviced By a Select Few
  • We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Key Features
Precision Temperature Management™ System
The Precision Temperature Management™ System uses sensor control to regulate temperatures in both the refrigerator and freezer, ensuring your ingredients stay at their optimal preservation temperatures. This system also minimizes abrupt start-and-stop cycles, promoting a quieter, more peaceful environment.
