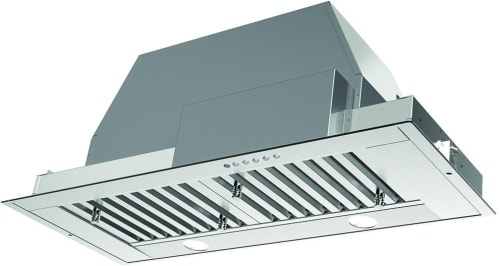

Faber Inca SD INSD35SSV - Faber Main Image
Faber Inca SD INSD35SSV - Faber Main Image
Faber Inca SD INSD35SSV - Bottom View
Faber Inca SD INSD35SSV - Sample Installation
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Faber Inca SD INSD35SSV
Authorized
Dealer

Faber Inca SD
INSD35SSV
Insert Range Hood with Variable Air Management System, Pro Blower, Pro Baffle Filter, Easy Snap Mounting Clips, Direct Rear Venting, Delay Auto-Off, LED Light, and Intensive Speed: 35 Inch 600 CFM

Top Quality Store on Google
Sale
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 34 5/16 Inch
Depth: 13 3/4 Inch
Height: 12 15/16 Inch
WiFi: No
Remote Control: Yes
CFM: 600 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7.5 Sones
Duct Size: 6 Inch
Number of Fan Speeds: 4
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
Size: 35 Inch 600 CFM
29 Inch 600 CFM
29 Inch 600 CFM
INSD29SSV
$969.00
In stock
35 Inch 600 CFM
35 Inch 600 CFM
INSD35SSV
$1,019.00
In stock
$1,019.00
OR
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Faber
Series: Inca SD
Model: INSD35SSV
Appearance
Style: Standard Hood
Type: Cabinet Insert
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 34 5/16 Inch
Depth: 13 3/4 Inch
Height: 12 15/16 Inch
Smart
WiFi: No
Bluetooth: No
Alexa: No
Google Home: No
Remote Control: Yes
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
AI Technology: No
Capacity
CFM: 600 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7.5 Sones
Duct Size: 6 Inch
Features
Number of Fan Speeds: 4
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
Tunable Lighting: No
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
EAN: 7612985636216
Are you a Trade Pro? Join Now

Description

Inca SD Pro Insert Range Hood with Variable Air Management System
Enhance your kitchen with this Wall Mount Hood by Faber. This hood combines style and function with it's superior performance. This hood features a Pro Blower that has an all-metal housing and metal impellers to accommodate professional style cooking. Dishwasher-Safe Baffle Filters are easy to clean and maintain. Top and Rear Direct Venting allows for easy kitchen integration, and LED Lighting is an energy efficiency method to brighten the cooking surface area. This hood also features Faber's Variable Air Management System where you can permanently adjust your hood to CFM levels of 295, 395 or 600 to meet local building codes.

Specifications

DETAILS
Duct Type:
Round
Venting Type:
Convertible
Blower Type:
Internal
Mounting Type:
Under Cabinet
Commercial:
No
Vent Location:
Top or Rear
CFM:
560 CFM
Approved for Outdoor Use:
No
Make-Up Air Compliant:
Yes
Number of Light Bulbs:
2
Light Bulb Type:
LED
Number of Fan Speeds:
3 or more
Recirculating Kit:
Sold Separately
Pro-Style:
Yes
Filter Type:
Baffle
Fan:
Yes
Light:
Yes
Variable Air Management:
Yes (set to 295, 395, 600 CFM)
Controls:
4 speed electronic w/ white LED
Built-In Mounting:
Yes - Easy Snap Clips
Pro Motor with Metal Impellers:
Yes
10-minute Intensive Speed:
Yes
15-minute Auto Shut-Off:
Yes
Power Cord Included:
Yes
ELECTRICAL SPECIFICATIONS
Volts:
120 V
Amps:
15 A
Frequency:
60 Hz
TECHNICAL DETAILS
Cutout Width:
33 5/8"
Cutout Depth:
13 9/16"
Weight:
45 lbs
DIMENSIONS
Exterior Width:
35"
Duct Diameter:
6"
Height:
12 15/16"
Depth:
13 3/4"
Width:
34 5/16"
CERTIFICATIONS
Energy Star:
No
cUL:
Yes
UL:
Yes
WARRANTY
Parts and Labor:
1 Year

Features

Variable Air Management System
  • Allows you to permanently adjust your hood to CFM levels of 295, 395 or 600 to meet local building codes.
Pro Blower
  • An all-metal housing and metal impellers to take the heat from professional style cooking.
Pro Baffle Filter
  • Professional style baffle grease filters, which are dishwasher safe and are able to stand up to pro cooking.
Easy Snap Mounting Clips
  • Installation with easy built-in adjustable clips that tighten onto the sides of the cabinet floor.
Direct Rear Venting
  • Vent the ducting up or rotate the blower to the back (as shown above) to avoid extra ductwork when on an outside wall.
Delay Auto-Off
  • Automatically turns the fan off after a set time (varies by the hood).
LED Light
  • Energy efficiency and brighten the cooking area.
Intensive Speed
  • Turns on at the highest speed for 10 minutes.
Additional Features
  • 600, 395, 295 CFM PRO motor, all-metal housing, and impellers
  • 2.8 - 7.5 sones
  • 4-speed electronic push control with Variable Air Management technology
  • LED lights
  • 15-minute auto shut off
  • Optional ADA compliant Remote Control (sold separately)
  • Vari-duct top or back venting options
  • Restaurant Baffle style grease filters
  • Convertible to recirculating (sold separately)
  • UL Certified
