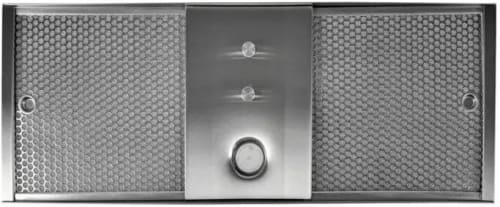

Trade-Wind Insert Style Series I32303 - 30 Inch Cabinet Insert Range Hood in Bottom View
Trade-Wind Insert Style Series I32303 - 30 Inch Cabinet Insert Range Hood in Bottom View
Trade-Wind Insert Style Series I32303 - 30 Inch Cabinet Insert Range Hood in Angled View
Trade-Wind Insert Style Series I32303 - 30 Inch Cabinet Insert Range Hood in Angled View
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Trade-Wind Insert Style Series I32303
Authorized
Dealer

Trade-Wind Insert Style Series
I32303
30 Inch Cabinet Insert Range Hood with 3-Speed, Knob Control, LED Lighting, Dishwasher-Safe Baffle Filters, and Easy Clean/Easy Install: 390 CFM

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 28 3/8 Inch
Depth: 10 1/2 Inch
Height: 13 Inch
WiFi: No
CFM: 390 CFM
Permanent Air Flow Reduction: Yes
Duct Size: 7 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
View more
Blower: 390 CFM
290 CFM
290 CFM
I32302
$582.00
390 CFM
390 CFM
I32303
$610.00
$610.00
OR
Have questions? Chat with us!
Product Information
Brand: Trade-Wind
Series: Insert Style Series
Model: I32303
Appearance
Style: Standard Hood
Type: Cabinet Insert
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 28 3/8 Inch
Depth: 10 1/2 Inch
Height: 13 Inch
Smart
WiFi: No
Smart Accessory Required: No
Capacity
CFM: 390 CFM
Permanent Air Flow Reduction: Yes
Duct Size: 7 Inch
Features
Number of Fan Speeds: 3
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 767459002626
EAN: 0767459002626
Are you a Trade Pro? Join Now

Description

30 Inch Cabinet Insert Range Hood with 3-Speed
This stylish range hood is perfectly hidden away in your cabinetry. With three fan speeds, you can select the perfect extraction rate for your cooking. LED lighting beautifully illuminates your cooktop. This range hood can be built into your cabinetry for a seamless look. Available in 290 CFM and 390 CFM airflow.

Specifications

Details
Color:
Stainless Steel
CFM:
390
Number of Speeds:
3
LED Light:
1
Filter Type:
Dishwasher safe commercial baffle filters
Remote Control:
Yes
Control Type:
Knob
Electrical Specifications
Volts:
120 V
Amps:
15 A
Frequency:
60 Hz
Dimensions
Width:
28 3/8"
Depth:
10 1/2"
Height:
13"
Duct Size:
7"
Warranty
Parts and Labor:
3 Years

Features

Quiet Operation
  • Large 3-speed blower operates at lower RPM reducing the sound level.
Easy Cleaning
  • Dishwasher-safe commercial-style baffle filters with 2 easy-grip handles.
  • Detergent inlet holes and grease exit holes in baffle filters for superior dishwasher cleaning.
Simple Installation
  • Installs easily in standard-size upper cabinets or custom-built wood range hoods.
  • Wiring diagram label for simple electrical connection.
Ease of Operation
  • Remote control included with purchase.
  • Optional automatic 5-minute shut-off timer.

Additional Features

  • Style complements ALL kitchen designs
  • Electronic touch controls with blue LED lighting
  • Simplicity of design preferred by homeowners
  • Designed to fit perfectly in a 12" upper cabinet
  • Commercial-grade stainless steel (#304 grade) and galvanized steel construction
  • LED light brightens the cooking area, equivalent to 50W Halogen
  • CFM and sound tested by the Energy Systems Laboratory at Texas A&M University
