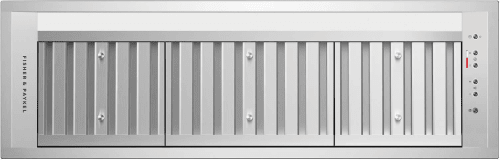

Fisher & Paykel Series 9 HPB36114N - Blower Insert
Fisher & Paykel Series 9 HPB36114N - Blower Insert
Fisher & Paykel Series 9 HPB36114N - Front View
Fisher & Paykel Series 9 HPB36114N - Detailed View
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Fisher & Paykel Series 9 HPB36114N
Authorized
Dealer

Fisher & Paykel Series 9
HPB36114N
36 Inch Insert Range Hood with 400 CFM, Five Fan Speeds, Dimmable LED Lighting, Dishwasher Safe Filters and Simple Installation

Top Quality Store on Google
Bundle & Save up to 15%
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 34 5/8 Inch
Depth: 11 Inch
Height: 16 1/4 Inch
WiFi: No
CFM: 400 CFM
Duct Size: 8 Inch
Number of Fan Speeds: 5
Dishwasher Safe Filters: Yes
Lights: LED
View more
$2,099.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Fisher & Paykel - Create Kitchen Perfection | Save Up to 15% Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

36 Inch Freestanding Induction Smart Range
Fisher & Paykel
36 Inch Freestanding Induction Smart Range
$12,999.00
30 Inch Single Convection Smart Electric Wall Oven
Fisher & Paykel
30 Inch Single Convection Smart Electric Wall Oven
$3,299.00
36 Inch Panel Ready Built-In Bottom Mount Refrigerator
Fisher & Paykel
36 Inch Panel Ready Built-In Bottom Mount Refrigerator
$8,099.00
Product Information
Brand: Fisher & Paykel
Series: Series 9
Model: HPB36114N
MPN: HPB3611-4 N
Appearance
Style: Standard Hood
Type: Insert Liner
Color: Stainless Steel
Fingerprint Resistant: No
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 34 5/8 Inch
Depth: 11 Inch
Height: 16 1/4 Inch
Smart
WiFi: No
Capacity
CFM: 400 CFM
Duct Size: 8 Inch
Features
Number of Fan Speeds: 5
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 5
Voltage: 120 Volts
GTIN
UPC: 822843501496
EAN: 0822843501496
Are you a Trade Pro? Join Now

Description

36 Inch Insert Range Hood with 400 CFM
With edge-to-edge extraction, this efficient, stylish range hood is
perfectly hidden away in your cabinetry. The simple installation process is compatible with most precut cabinetry. The adjustable mounting system can be installed with 5/8 to 9/16 cabinetry board. Powered by a brushless DC motor, the Insert Range Hood operates more efficiently, more reliably and with less noise than units with AC motors. Plus, fewer moving parts mean less erosion and longer lifetime.

Specifications

Additional Specifications
Maximum Blower Air Flow:
400CFM
Air Outlet Size:
8"
Dishwasher Safe Filters:
3
Ducted:
Vertical only
Extraction Type:
Surface
Fan Speeds:
5
Filter Type:
SS Baffle
Control Type:
Electronic
Auto-off/Run-on Timer:
Yes
Dimmable Lights:
Yes
Filter Cleaning Alert:
Yes
Light Type:
3000K LED Strip
Simple Sensing:
Yes
Supply Voltage:
120V
Dimensions
Depth:
11"
Height:
16 1/4"
Width:
34 5/8"

Features

Edge To Edge Extraction
  • Filters effectively reach edge to edge, which maximizes the amount of extraction area.
Full Surface Lighting
  • The even lighting provides full coverage of the cooktop, illuminating food in its true color, with no hot or dark spots and no glare or shadows. The dimmable lights have fade in and fade out features.
Easy To Use
  • This easy to use range hood operates with fingertip control of LED-illuminated soft touch buttons. Selected models also come with a remote control.
Energy Efficiency
  • Powered by a brushless DC motor, the Insert Range Hood operates more efficiently, more reliably and with less noise than units with AC motors. Plus, fewer moving parts mean less erosion and longer lifetime.
Effortless Cleaning
  • The stainless steel filters are easy to remove and are dishwasher safe. A self-contained grease tray within the filters makes them very easy to clean.
Simple Installation
  • The simple installation process is compatible with most precut cabinetry. The adjustable mounting system can be installed with 5/8 to 9/16 cabinetry board.
California residents see Prop 65 WARNINGS

Current Rebates

Fisher & Paykel - Create Kitchen Perfection | Save Up to 15% Download Form

Fisher & Paykel Save Up to 15% + Free 5 Year Warranty

When You Buy
Buy Range or Built-in Refrigeration
You Get
Up to 15% + 5 year warranty
Expiration Date
12/31/2026
Savings Type
Mail-in Savings

Rebate

Submit-By: 12/31/26



Purchase any qualifying range or built-in refrigeration product to receive 10% Cashback.

Purchase four or more qualifying products* to receive 15% Cashback.

Purchase four or more qualifying products* and spend $25,000 to receive 15% Cashback + Free 5 Year Warranty.



*Limit of 1 product per category. Excludes closeouts.

Save time and Submit Your Claim Online
AJ Madison Exclusive Rebate

Please note:

This rebate will only be paid on AJ Madison purchases only.
Purchases in any other store do not qualify for this rebate.
All rebate forms will be rejected.

Reviews

Manuals & Guides

Quick Reference Guide
Installation Guide
User Guide
Planning Guide
