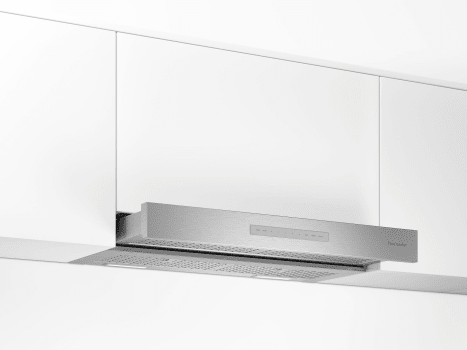

Thermador Masterpiece Series HMDW36WS - 36 Inch Under Cabinet Smart Range Hood in Front View

Thermador Masterpiece Series HMDW36WS - 36 Inch Under Cabinet Smart Range Hood in Sliding View

Thermador Masterpiece Series HMDW36WS - 36 Inch Under Cabinet Smart Range Hood in Control Panel View

Image Disclaimer

Authorized

Dealer

Thermador Masterpiece Series

HMDW36WS

36 Inch Under Cabinet Smart Range Hood with 4-Speed/600 CFM Blower, Illuminated Buttons Touch Control, LED Lighting, Dishwasher-Safe Hybrid Mesh Filters, Delay Shut-Off, Hood Sync, Home Connect™ and Wi-Fi Enabled

Name: Thermador Masterpiece Series HMDW36WS
Brand: Thermador
SKU: HMDW36WS
Price: 2449 USD

Be the first to write a review

Top Quality Store on Google

Bundle & Get Up To 3 Free Items

quick specs

Style: Slide-Out Hood

Venting Type: Convertible

Blower Included: Yes

Blower Type: Internal

Width: 35 15/16 Inch

Depth: 19 7/8 Inch

Height: 17 9/16 Inch

WiFi: Yes

Remote Control: Yes

CFM: 600 CFM

Permanent Air Flow Reduction: Yes

Noise Level: 1.4 Sones

Duct Size: 8 Inch

Number of Fan Speeds: 4

Dishwasher Safe Filters: Yes

Lights: LED

Delay Shut-Off: Yes

Warranty Terms: 2 years

^$2,449^.00

MSRP: ~~$2,699.00~~

You save $250.00

Current Offers

Thermador: Receive up to Three Free Products or Upgrades with Purchase Expires 12/31/2026

Have questions? Chat with us!

Learn More with a Tailored, Immersive Experience

Experience Thermador Appliances Live

Visit a B/S/H Experience & Design Center near you to explore the latest innovations from Thermador. These centers are primary hubs to see, touch, experience the full assortment of Thermador appliances in a cutting edge, hands-on space.
Select your preferred location below to book a personal visit with a product expert.

NEW YORK, NY MIAMI, FL

Explore Thermador with Your AJM Expert

Throughout your projects, you'll be paired with an AjMadison appliance expert who will assist in selecting the perfect appliances, answer any questions and provide expert advice. See and compare our extensive selection of Thermador appliances in person!

Brooklyn, NY Atlanta, GA Washington, DC Miami, FL

Recommended Accessories & Add-ons

Product Information

Brand: Thermador

Series: Masterpiece Series

Model: HMDW36WS

Warranty Terms: 2 years

Appearance

Style: Slide-Out Hood

Type: Hood

Color: Stainless Steel

Fingerprint Resistant: No

Glass Canopy: No

Mounting Type: Under Cabinet

Venting Type: Convertible

Blower Included: Yes

Blower Type: Internal

Dimensions

Width: 35 15/16 Inch

Depth: 19 7/8 Inch

Height: 17 9/16 Inch

Smart

WiFi: Yes

Bluetooth: No

Remote Control: Yes

Remote Monitoring: Yes

Remote Diagnostics: No

Dash Replenishment: No

App Integration: IFTTT

Smart Accessory Required: No

Capacity

CFM: 600 CFM

Permanent Air Flow Reduction: Yes

Noise Level: 1.4 Sones

Duct Size: 8 Inch

Features

Number of Fan Speeds: 4

Filter Type: Mesh

Dishwasher Safe Filters: Yes

Lights: LED

Delay Shut-Off: Yes

Technical Details

ADA Compliant: No

Energy Star Rated: No

CEE Rating: Not Available

Amps: 15

Voltage: 120 Volts

Approved for Outdoor Use: No

GTIN

EAN: 0825225935698

Description
Specifications
Features
Rebates
Reviews

Description

36 Inch Under Cabinet Smart Range Hood with 4-Speed/600 CFM Blower
Masterpiece® Drawer hoods blend luxury and performance, featuring a sliding canopy that can be pulled forward or pushed back. It features an automatic mode, delays shut-off, checks filter light, and is equipped with the Thermador Connected Experience by Home Connect. Cooktop Hood Sync enables control through Freedom® Induction Cooktop. Beautiful illumination with multi-level, vivid LED lights.

Specifications

General Properties

Operating Mode:

Convertible: Ducted / Recirculating

Maximum CFM:

600 CFM

Sones:

1.4

Number of Speed Settings:

4-Stage

Motor Location:

Integrated

Number Of Lights:

Bulb Type:

LED

Light Lumens:

100 - 150

Light Color (°K):

3500 - 4000

Total Power Of The Lamps (W):

2.4

Damper Included:

Yes

Grease Filter Material:

Washable Stainless Steel

Grease Filter Type:

Hybrid Mesh

Home Connect™ (Wi-Fi Enabled):

Yes

Features

Cooktop Hood-Sync Enabled:

Yes

Noise Control Technology™:

Yes

Multi-Level LED Lights with Fading Transitions:

Yes

Automatic Mode:

Yes

Check Filter Reminder Light:

Yes

Delay Shut-Off:

Yes

Accessories (Optional)

Recirculation Kit:

RECHMDW36

Replacement Charcoal Filter:

CHFHMDW36

Built-In Remote Control Panel:

REMCPW

Technical Details

Watts:

455 W

Current:

15 A

Volts:

120 V

Frequency:

60 HZ

Plug Type:

120V-3 Prong

Dimensions & Weight

Overall Width:

35 15/16"

Overall Height:

17 9/16"

Overall Depth:

12" - 19 7/8"

Minimum Required Distance Above Gas Cooking Surface:

30"

Minimum Required Distance Above Electric Cooking Surface:

30"

Diameter of Air Duct (in) Top:

Net Weight:

55 lb.

Warranty

Limited Warranty Parts And Labor:

2 Year

Features

Noise Control Technology™

Reduces noise up to 35% compared without it.

Cooktop Hood Sync

Allows hood control on Freedom® cooktop touchscreen.

Enables hood activation once Freedom® cooktop is on.

Stainless Steel Filters

Grease-capturing mesh filters framed by stainless steel.

LED Lighting

Beautiful illumination with white multiple level LED lighting.

Touch Control

Sleek, smooth touch control make cleaning easy with a damp cloth.

Wi-Fi

Equipped with the Thermador Connected Experience by Home Connect.

Pull Canopy Open

Pull canopy open for increased capture, or push back for flush design.

Automatic Mode

Detects temperatures to adjust fan speed automatically.

Delay Shut-Off

10-min delay shut off ensure lingering odor do not interrupt a course.

Delay shut off time can extend or reduce through Home Connect app.

Check Filter Reminder Light

Illuminates after 40 hours of operation.

Additional Features

Remotely monitor, control, and start through the Home Connect app

Flexibility to program custom settings the through Home Connect app

Manage Thermador Connected Experience kitchen suite with one network

Access tips and tricks on Home Connect app to master every aspect

Opt to receive mobile notifications as a reminder to clean filters

600 CFM blower to match in performance with Masterpiece® cooktops

Convert to recirculation for hard to duct installs, kit sold separate

Vertical ducting direction possible

8" round duct discharge

0-100% light slider in Home Connect app allows perfect level of light

Built-in remote control panel accessory available, sold separate
