Description

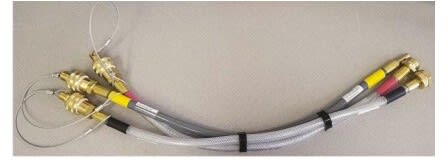

Quick Connect Hose Adapter Kit
The HALGQC Hose Adapter Kit allows for installation of QC water cooled unit where the standard QC Hose Kit cannot accommodate installation. The kit provides a means of connecting hoses to a QC- Model unit when the water source and drain are located in separate areas or where longer hoses run as desired. The HALGQC Hose adapter is equipped with Quick Connect Couplings along with the Garden Hose Connections.
Specifications
Overview
Product Type:
Quick-Connect Hose Adapter Kit
Accessory Type:
Hose Adapter
Compatible Units:
OWC36QC / OWC60QC series
Application:
Water-cooled portable air conditioners
Purpose Converts:
Quick-Connect hose connections to garden-hose connections
Water-In Connection:
3/4" QC Coupling
Water-Out Connection:
3/4" QC Coupling
Drain Connection:
3/8" QC Coupling
Water Supply Termination:
3/4" Female Garden Hose
Water-Out Termination:
3/4" Male Garden Hose
Drain Termination:
3/8" Hose Barb
Water-In / Water-Out Hose Material:
PVC with Polyester Braid
Condensate Hose Material:
Gray PVC
Maximum Working Pressure:
100 PSIG
Features
Quick-Connect Design
- Provides fast connection between compatible OceanAire QC water-cooled air conditioners and the hose system.
Garden Hose Compatibility
- Converts the unit-side QC connections to 3/4-inch garden hose connections, allowing greater installation flexibility.
Extended Installation Flexibility
- Intended for installations where the water source and drain are separated or where longer hose routing is required.
Complete Water Connections
- Includes connections for water-in, water-out, and condensate drain.
Heavy-Duty Hose Construction
- Water-in and water-out hoses use PVC reinforced with polyester braid.
Condensate Drain
- Includes a gray PVC condensate hose with a 3/8-inch hose-barb termination.
Broad Compatibility
- Designed for OceanAire OWC36QC and OWC60QC water-cooled units.
100 PSIG Rated:
- Water lines have a maximum working pressure of 100 PSIG.
2-Foot Adapter Assembly
- The adapter section is 2 feet long, providing separation between the QC unit connections and garden-hose terminations.
