Miele ArtLine Series Diamond H7870BMXOBSW - 30 Inch Single Speed Smart Electric Wall Oven

Image Disclaimer

Miele ArtLine Series Diamond H7870BMXOBSW

Authorized

Dealer

Miele ArtLine Series Diamond

H7870BMXOBSW

30 Inch Single Speed Smart Electric Wall Oven with 1.52 cu. ft. Oven Capacity, M Touch + MotionReact, 3-in-1 Functionality, Touch-Cool Front, Wired Food Probe, Miele@home, MasterChef Automatic Programs and Sabbath Mode

Name: Miele ArtLine Series Diamond H7870BMXOBSW
Brand: Miele
SKU: H7870BMXOBSW
Price: 5999 USD
Availability: InStock

Be the first to write a review

Top Quality Store on Google

quick specs

Microwave: Yes

Speed Oven: Yes

Steam Oven: No

Fingerprint Resistant: No

Drawer: None

Cutout Width: 28 5/8 Inch

Cutout Depth: 24 1/8 Inch

Cutout Height: 18 5/8 Inch

Capacity: 1.52 Cu. Ft.

Fast Preheat: Yes

Convection Type: True European

Proof Mode: Yes

Self-Cleaning: No

Steam Clean: No

Glide Rack(s): No

Temperature Probe: Yes

Warranty Terms: 2 years

^$5,999^.00

Current Offers

Miele: Kitchen Package Promotion Save up to 10% Expires 12/31/2026

Have questions? Chat with us!

Miele

G7000 30 Inch Gas Rangetop

$4,499.00

Miele

30 Inch Electric Cooktop

$2,599.00

Miele

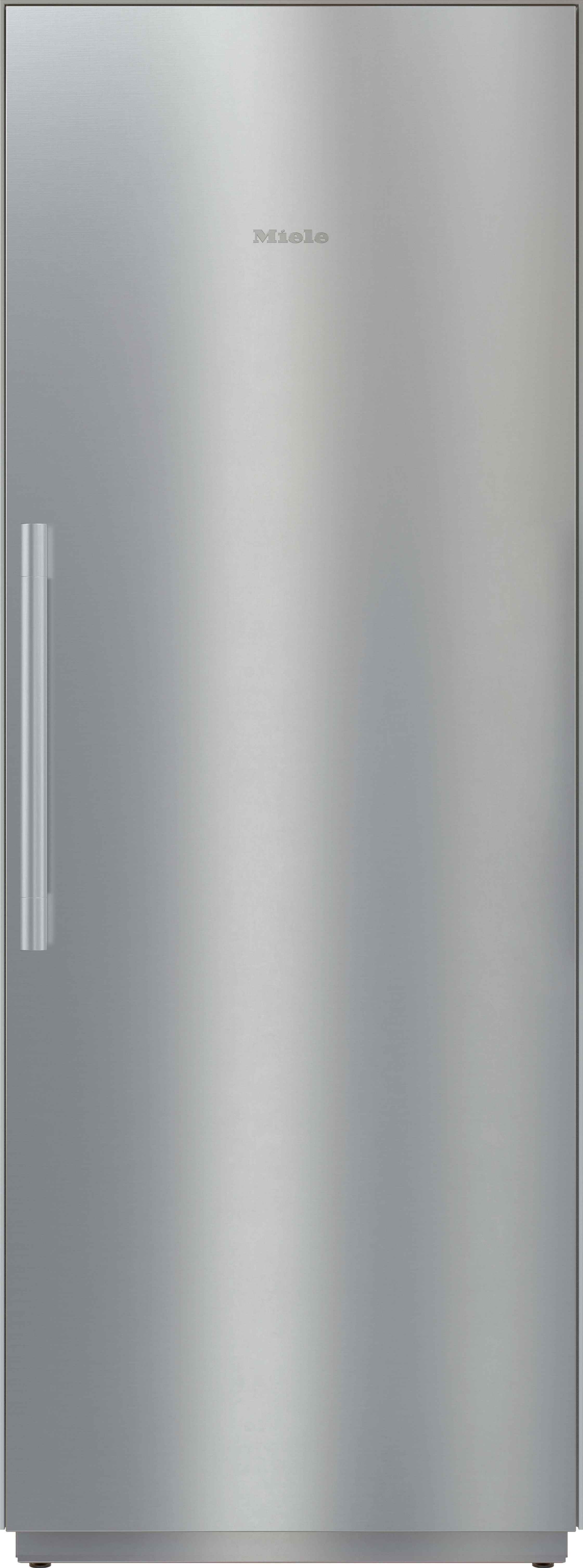

30 Inch Built-In Smart Refrigerator Column

$10,499.00

Miele

24 Inch Full Console Built-In Smart Dishwasher

$4,040.00

Product Information

Brand: Miele

Series: ArtLine Series Diamond

Model: H7870BMXOBSW

MPN: H 7870 BMX OBSW

Warranty Terms: 2 years

Appearance

Fuel Type: Electric

Style: Single

Microwave: Yes

Speed Oven: Yes

Steam Oven: No

Door Style: Drop Down

French Door Oven: No

Color: Obsidian Black

Fingerprint Resistant: No

Handless: Yes

Control Type: Touch Sensor

Viewing Window: Yes

Drawer: None

Clock: Yes

Dimensions

Cutout Width: 28 5/8 Inch

Cutout Depth: 24 1/8 Inch

Cutout Height: 18 5/8 Inch

Exterior Width: 29 7/8 Inch

Exterior Depth: 22 5/8 Inch

Exterior Height: 18 7/8 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: None

Smart

WiFi: Yes

Bluetooth: No

Alexa: Yes

Google Home: Yes

Remote Control: Yes

Remote Monitoring: Yes

Remote Diagnostics: Yes

Dash Replenishment: No

App Integration: Miele@home

Smart Accessory Required: No

AI Technology: No

Capacity

Capacity: 1.52 Cu. Ft.

Oven Racks: 1

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Fast Preheat: Yes

No Preheat: Yes

Convection: Yes

Convection Type: True European

Proof Mode: Yes

Self-Cleaning: No

Steam Clean: No

Glide Rack(s): No

Temperature Probe: Yes

Broiler: Yes

Broiler Element Location: Top

Broiler Pan Included: No

Interior Oven Light: Yes

Oven Camera: No

Removable Door: Yes

Air Fry: No

Sous Vide: No

Push to Open: Yes

Soft Close: Yes

Steam Assist: No

Plumbed: No

Microwave Features

Capacity: 1.52 Cu. Ft.

Cooking Watts: 900

With Turntable: No

Convection Oven: Yes

Broiler: Yes

Push to Open: Yes

Soft Close: Yes

Technical Details

ADA Compliant: No

Approved for Outdoor Use: No

Wattage: 4,000 Watts

LP Conversion: No

Amps: 30

Voltage: 240/208 Volts

GTIN

EAN: 4002516976851

Description
Specifications
Features
Rebates
Reviews

Description

30 Inch Single Speed Smart Electric Wall Oven with 1.52 cu. ft. Oven Capacity
Elevate your culinary capabilities with the Miele H 7870 BMX, a premium 30-inch speed oven designed for the modern, handleless kitchen. Combining the rapid efficiency of a microwave with the precise browning of a traditional convection oven, this ArtLine appliance delivers exceptional versatility without compromising on style.

Specifications

Construction Type and Design

Speed oven:

Yes

ArtLine:

Yes

No handles:

Yes

Convenience Features

Quick & Gentle:

Yes

Rapid PreHeat:

Yes

Food probe:

With cable

Keeping warm:

Yes

Crisp Function:

Yes

Operating Modes

Defrost:

Yes

Auto Roast:

Yes

Maxi Broil:

Yes

Intensive:

Yes

Slow Roasting:

Yes

Microwave:

Yes

Microwave with Auto Roast:

Yes

Microwave with Broil:

Yes

Microwave with Convection Bake:

Yes

Microwave with Convection Broil:

Yes

Surround:

Yes

Bake:

Yes

Convection Broil:

Yes

Special modes:

Yes

Broiling operating modes:

Yes

Automatic programs:

Yes

User Convenience

SoftOpen:

Yes

Language Options:

Yes

MyMiele:

Yes

Help function:

Yes

Popcorn function:

Yes

Polyphonic audible signals:

Yes

Time-of-day display:

Yes

Time synchronization:

Yes

Date display:

Yes

Timer:

Yes

Programmable start of cooking duration:

Yes

Programmable end of cooking duration:

Yes

Programmable cooking duration:

Yes

Actual temperature display:

Yes

Audible signal when desired temperature is reached:

Yes

Recommended temperatures:

Yes

Recommended microwave power:

Yes

Quick MW:

Yes

Favourites:

Yes

Networking with Miele@home:

Yes

Individual settings:

Yes

Timers:

Yes

MotionReact proximity sensor:

Yes

Display:

M Touch

3 in 1:

Oven

Safety

Appliance cooling system with touch-cool fronts:

Yes

Safety shut-off:

Yes

System lock:

Yes

Sensor lock:

Yes

Efficiency and Sustainability

Automatic residual heat utilization:

Yes

Technical Data

Number of shelf levels:

Oven interior lighting:

1 LED spot

Electronically controlled microwave power:

Yes

Voltage in V:

120

Voltage convertible in V:

240/208

Fuse rating in A:

Number of phases:

Temperatures in °F (°C):

85-475 (30-250)

Microwave power levels in power levels:

1 - 7

Appliance dimensions (W x H x D):

29 7/8" x 18 7/8" x 22 5/8"

Niche dimensions (W x H x D):

28 5/8" x 18 5/8" x 24 1/8"

Oven compartment volume in cubic feet (l):

1.52 (43) ft³ (l)

Weight in lbs:

100.31

Total rated load in kW:

4.000

Frequency in Hz:

Length of power cable in m:

1.80

Plug type:

NEMA plug: 14-30

Features

1.52 cu. ft. Oven Capacity

Spacious interior suitable for cooking multiple dishes at once.

M Touch + MotionReact

Intuitive touchscreen controls that activate when you approach for easy operation.

3-in-1 Functionality

Combines convection, microwave, and grill functions in one compact oven.

Touch-Cool Front

Oven door stays cool to the touch for safety during operation.

Wired Food Probe

Monitors internal food temperature for precise cooking results.

Miele@home

Wi-Fi connectivity for remote control and monitoring via the Miele smart app.

MasterChef Automatic Programs

Pre-set programs for popular dishes to simplify cooking.

Sabbath Mode

Allows safe and compliant cooking during religious observances.

Combi Modes

Combines microwave and convection or grilling for faster, efficient cooking.

Crisp Function

Adds extra heat to create crispy textures, ideal for pizza or fries.

Popcorn Button

One-touch setting optimized for perfect popcorn every time.

ArtLine Handleless Design

Sleek, modern handle-free design for seamless kitchen integration.

Touch2Open

Opens the oven door automatically at a light touch for convenience.

SoftOpen

Smooth, gentle door opening to prevent slamming.

Quick & Gentle

Inverter technology delivers fast yet even cooking without overcooking.

Favorites

Save frequently used programs for easy, repeatable cooking.

Rapid PreHeat

Preheats the oven quickly to the desired temperature.

PerfectClean Cavity

Non-stick interior makes cleaning quick and easy.

CleanGlass Door

Smooth, easy-to-clean inner door surface.

Safety Lock & Shut-off

Ensures child safety and automatic power-off after use.

What's Included

Wire rack with PerfectClean (1)

Glass tray (2)

Wired food probe (1)

Key Features

ClearView Lighting

High-quality LED spotlights brightly illuminate every oven level, letting you easily monitor your roast or casserole in the Combi-Steam Oven from any angle.

Linen Stainless Steel Interior

The Speed oven’s high-quality, patented linen-textured stainless steel with a PerfectClean finish resists residue buildup, making cleanup quick and effortless while ensuring top cooking results.

M Touch® Controls

Miele’s trademarked M Touch® interface features an elegant, motorized full-touchscreen that rises into view for a sleek, uncluttered cooktop appearance when off. Navigate settings with a simple tap or swipe, utilizing clear text and symbols for intuitive use and superior visibility.

MasterChef

Enjoy effortless cooking with electronic programs that automatically handle a wide range of dishes. Whether you’re baking a cake or roasting poultry, there’s no need to manually select the mode, temperature, or time — it’s all taken care of for you. Plus, for dishes like meat, you can easily adjust the doneness level to match your personal preference, ensuring every meal is cooked just the way you like it.

Miele@Home

Enhance your home’s intelligence and simplify your life by securely connecting your Miele appliances to your network, unlocking a range of convenient features. With an intuitive app, voice control, and seamless integration into your existing smart home system, Miele Cloud gives you complete control over your networked appliances.

MotionReact*

As you approach, the oven lights up, the display activates, buzzers are silenced, and cabinet fronts are automatically detected — for a seamless, intuitive experience.
