Summit H24RSS - 24 Inch Under Cabinet Range Hood
Summit H24RSS - 24 Inch Under Cabinet Range Hood
Summit H24RSS - 24 Inch Under Cabinet Range Hood 220 CFM Internal Blower
Summit H24RSS - 24 Inch Under Cabinet Range Hood Removable Metal Grease Filter
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Summit H24RSS
Authorized
Dealer

Summit
H24RSS
24 Inch Under Cabinet Range Hood with 220 CFM Internal Blower, Light & Bulb Included, Metal Grease Filter, Charcoal Filter, and Rocker Switch Controls: Stainless Steel

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 23 7/8 Inch
Depth: 18 5/8 Inch
Height: 5 1/8 Inch
WiFi: No
CFM: 220 CFM
Permanent Air Flow Reduction: No
Number of Fan Speeds: 2
Delay Shut-Off: No
View more
Color: Stainless Steel
Stainless Steel
Stainless Steel
H24RSS
$159.00
In stock
$159.00
MSRP: $225.00
You save $66.00
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!

You Might Also Like

24 Inch Freestanding Gas Range
Summit
24 Inch Freestanding Gas Range
$1,449.00

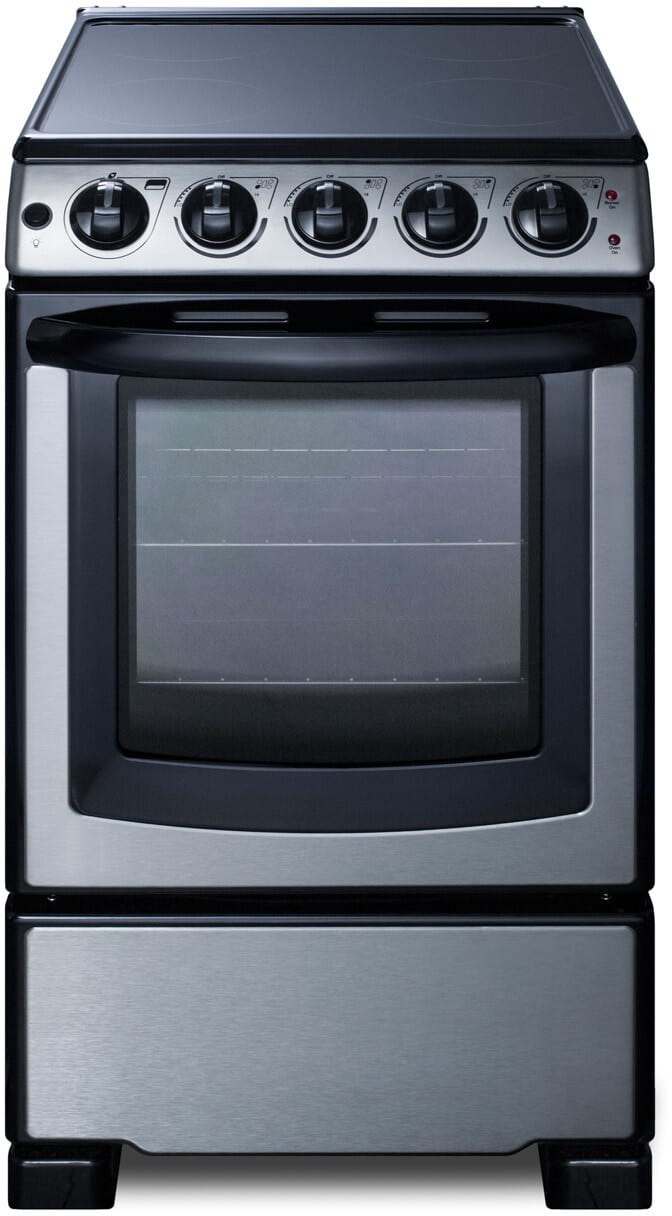

20 Inch Slide-In Electric Range
Summit
20 Inch Slide-In Electric Range
$1,099.00
24 Inch Electric Cooktop
Summit
24 Inch Electric Cooktop
$469.00
Product Information
Brand: Summit
Model: H24RSS
Appearance
Style: Standard Hood
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 23 7/8 Inch
Depth: 18 5/8 Inch
Height: 5 1/8 Inch
Smart
WiFi: No
Bluetooth: No
Smart Accessory Required: No
AI Technology: No
Capacity
CFM: 220 CFM
Permanent Air Flow Reduction: No
Features
Number of Fan Speeds: 2
Filter Type: Charcoal
Delay Shut-Off: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 115 Volts
Approved for Outdoor Use: No
GTIN
UPC: 761101085074
EAN: 0761101085074
Are you a Trade Pro? Join Now

Description

24 Inch Under Cabinet Range Hood with 220 CFM Internal Blower
Model H24RSS is a 24" wide range hood ideal for apartments and other smaller kitchens. It features an attractive stainless steel finish with a horizontal grain. We include a pre-installed light bulb to illuminate your cooking surface. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting. This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.

Specifications

Overview
Nominal Height:
6.0" (15 cm)
Height of Cabinet:
5.13" (13 cm)
Nominal Width:
24.0" (61 cm)
Width:
23.88" (61 cm)
Nominal Depth:
19.0" (48 cm)
Depth:
18.63" (47 cm)
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Voltage/Frequency:
115 V AC/60 Hz
Weight:
11.0 lbs. (5 kg)
Parts & Labor Warranty:
1 Year
Range Hood
Venting:
Convertible
Controls:
Dial
Light:
Yes
Number of Lights:
1
Light Type:
Incandescent
Number of Fan Speeds:
2
Duct Shape:
3"1/4" x 10" rectangular or 6/7" round with transition

Features

24" Wide Convertible Range Hood
  • Versatile design ideal for smaller kitchen spaces
Under cabinet range hood
  • Low profile design offers a classic way to finish your kitchen
Convertible design
  • Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Easy 1-step conversion
  • Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
Versatile top or rear exhaust
  • Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
Two-speed fan
  • High and low setting to allow proper ventilation of your kitchen as needed
Light & bulb included
  • Includes an incandescent bulb to help illuminate your cooking surface
Removable metal grease filter
  • Easy installation and detaching allows you to properly clean the filter for optimum efficiency
Charcoal filter included
  • Helps absorb grease and odors when using the hood in recirculating mode
Rocker switch controls
  • Front-located on/off and high/low switches make it easy to manage the light and fan
Professional installation
  • Designed to be hard-wired by a licensed professional
