Description

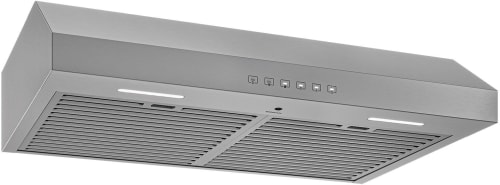

30 Inch Under Cabinet Range Hood with 490 CFM Internal Blower
From the leader in residential indoor air quality, this under-cabinet range hood by Broan-NuTone is built to surpass industry standards, with over 50 points of inspection, engineered as a reliable ventilation solution. The durable hood vent is equipped with SmartSense Auto Operation that automatically monitors and adjusts the ventilation power needed based on heat coming off the cooktop to maintain the integrity of the IAQ in your space. The Glacier range hood is also up to 71% quieter: 1.1 sone is equivalent to a refrigerator running, so it won't interfere with daily life. The EZ1 Install System enables a quick and easy one-person installation, and the ENERGY STAR Certification ensures code compliance while providing cost savings. Code Ready Technology (CRT) offers the capability to reduce the 490 Max Blower CFM to 300 or 400 CFM, meeting local code requirements. The 2-Level LED lighting modules and a 3-Speed whisper-touch infrared control make cooking a breeze. At Broan-NuTone, better quality of air means better quality of life.
Specifications
Product Specifications
Vent Type:
Convertible Built-In
Control Type:
3-speed Infrared
Filter Clean Reminder:
No
Lighting:
2-Level LED Module (Included)
Grease Filters:
Hybrid Baffle (Qty. 2)
Installation Hardware:
EZ1 Bracket
Recirculation:
Non-ducted Filters Sold Separately
Duct:
3 1/4" x 10" or 7" Round
Optional Accessories
Make-up Air Dampers:
MD6TU, MD8TU and MD10TU
Electrical Specifications
Rated Voltage:
120 V, 60 Hz
Electrical Connection:
Direct Wire
Dimensions
Claims & Certifications
ADA Capable:
Yes,(HAWRK5 Kit Sold Separately)
ENERGY STAR® Certified:
Yes
Limited Warranty
Manufacturer Warranty:
1 Year
Features
490 CFM Internal Blower
- Trust in the Broan-NuTone brand to more effectively remove pollutants in your kitchen than the leading competitor, with strong airflow at 490 Max Blower CFM
SmartSense™ Automated Ventilation
- Expel pollutants from your home without thought or action; An infrared sensor monitors for heat coming off the range and will automatically adjust the hood's fan speed as needed to eliminate smoke and odors while cooking
Code Ready Technology (CRT)
- Supports the installer's job with the ability to reduce airflow to 300 or 400 CFM to address local codes or make-up air requirements, originally 490 Max Blower CFM
EZ1 Installation System
- With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DIYers
Whisper Touch Infrared Controls
- The infrared controls allow for manual operation to adjust the 3-speed blower and 2 level lighting
Hybrid Baffle Filters
- Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency hybrid baffle filters
Strip LED Lighting
- Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience
Up to 71% Quieter
- With sound equivalent to a refrigerator running, this vent hood is up to 71% quieter than competition at 1.1 sones on working speed
Convertible Venting
- Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
Compatible with Optional Make-Up Air Dampers (MD6TU/MD8TU/MD10TU)
- Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
Hardwired or Plug-In (HCK44 Cord Kit Sold Separately)
- Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
50 Points of Inspection
- Expect a durable, long-standing ventilation solution engineered by the leader in indoor air quality
ADA Capable (Kit Sold Separately)
- Can be installed for ADA Compliance with the purchase of model HAWRK5 low voltage wiring and wall switch kit
ENERGY STAR® Certified
- Both ENERGY STAR certified and Title 24 compliant, this kitchen hood is energy efficient and code compliant
