Home > Food Disposal > Disposers > GFB760N

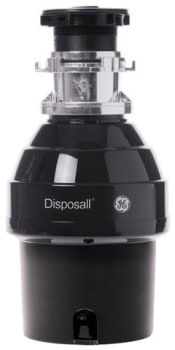

GE GFB760N - GE® 3/4 HP Batch Feed Garbage Disposer Non-Corded
GE GFB760N - GE® 3/4 HP Batch Feed Garbage Disposer Non-Corded
GE GFB760N - Installation View
GE GFB760N
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
GE GFB760N
Authorized
Dealer

GE
GFB760N
3/4 HP Batch Feed Garbage Disposer with 2,700 RPM, Manual Reset Overload Protector, 2 Level Precutter, Jam Resistant

Top Quality Store on Google
quick specs
Width: 8 1/2 Inch
Depth: 8 1/2 Inch
Height: 16 5/8 Inch
Drain Outlet Diameter: 1 1/2 Inch
Type: Batch Feed
Auto Reverse: No
Horsepower (Hp): 3/4 Hp
Grinding Speed (RPM): 2,700 RPM
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: GE
Model: GFB760N
Dimensions
Width: 8 1/2 Inch
Depth: 8 1/2 Inch
Height: 16 5/8 Inch
Drain Outlet Diameter: 1 1/2 Inch
Features
Type: Batch Feed
Auto Reverse: No
Sound Insulation: Yes
WiFi Connected: No
Grinding Chamber Material: Nylon
Grind Chamber Capacity: 34 Oz.
Technical Details
Horsepower (Hp): 3/4 Hp
Power Connector: Direct Wire
Grinding Speed (RPM): 2,700 RPM
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 084691845577
EAN: 0084691845577
Are you a Trade Pro? Join Now

Description

Disposer
Their new GE disposers have a powerful grinding action that reduces food waste to small particles, making them safe for any properly sized septic system. The new insulation package assures quiet operation. Hardworking, quiet and easy to install, it's easy to see how the new GE Disposal will fit into every kitchen.

How The Waste Disposer Works
Food wastes are fed into the disposer through the sink drain opening. The wastes fall into the grinding mechanism and are shredded into particles small enough to be floated away by the water.

What The Disposal Grinds
The disposer will grind almost all items of food waste. Naturally, some items require less time to grind than others. Items such as animal fat, skin and hard bones take longer to grind than vegetable parings. Mixing different types of waste will improve grinding efficiency.

Specifications

Weights & Dimensions
Overall Height:
16 5/8"
Dishwasher Inlet Diameter:
3/4"
Approximate Shipping Weight:
14 lbs
Overall Depth:
8 1/2"
Overall Width:
8 1/2"
Net Weight:
13 lbs
Drain Outlet Diameter:
1 1/2"
Specifications
Motor Horsepower:
3/4 hp
Precutter Material:
Stainless Steel
Control Type:
Stopper
Turntable Material:
Stainless Steel
Impellers:
Dual Swivel. Jam Resistant. Stainless Steel
Grinding Ring Material:
Stainless Steel
Disposer Features:
DrainPurge Technology. 2 Level Precutter. Drain Connector. Drain Elbow. Manual Reset Overload Protector. Sink Stopper
Mounting Type:
EZ Mount
Feed Type:
Batch
Grinding Speed (RPM):
2700 RPM's
Armature Shaft Material:
Cold-Rolled Carbon Steel
Hopper (grind chamber) material:
Glass Reinforced Nylon

Features

3/4 Horsepower Motor
  • Quickly hits max speed and high torque so foods are less likely to jam or clog
2,700 RPM Grinding Action
  • High RPM provides a fast, fine grind. Based on RPM testing of cleared GE and competitive models
DrainPurge Technology
  • An angled fin pumps water down with more force to help clear drains and reduce clogs
EZ Mount Installation
  • Installation is a breeze with fewer parts and steps. 3-bolt mount adapter kit included in box
Additional Features
  • Direct Wire Power Connection
  • Sound Reduction Technology
  • 34-ounce Grind Chamber
