Cooking Controls
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature:
Yes
Program Fahrenheit or Celsius:
Yes
Silent Control Panel:
Yes

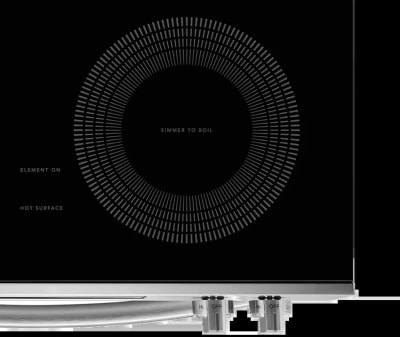

Cooktop
Cooking Surface Type:
Smooth
Element On Indicator Light:
Yes
Hot-Surface Indicator Light:
Yes
Drawer
Drawer Handle Style:
Integrated
Controls
Dimensions and Volume
Depth With Door 90° Open:
47 5/16"
Depth With Handle:
28 1/2"
Oven Interior Height:
18 1/8"
Oven Interior Width:
25 3/16"
Oven Interior Depth:
19 7/8"
Oven Capacity:
5.3 Cu. Ft.
Installation
Adjustable Leveling Legs:
Yes
Certifications and Approvals
Star-K Certification:
Yes
Oven
Bake Element Type:
Hidden
Broil Element:
4000 Watts
Number of Convection Fans:
1
Number of Rack Positions:
6
Oven Interior Color:
Midnight Black
Oven Light Watts:
40 Watts
Rack Position Type:
Embossed
Cooktop Performance
Right Front Element Burner Size:
9"
Right Rear Element Burner Size:
6"
Left Front Element Burner Size (Small):
6"
Left Front Element Burner Size (Large):
9"
Left Rear Element Burner Size:
6"
Right Front Element Burner:
3200 Watts
Right Rear Element Burner:
1200 Watts
Left Front Element Burner (Small):
1400 Watts
Left Front Element Burner (Large):
3000 Watts
Left Rear Element Burner:
1200 Watts
Center Rear Element Burner:
100 Watts
Keep Warm Burner Location:
Center Rear
Included Pizza Accessories
Display
Display Interface Color:
White
Electrical Specifications
Amps @ 240 Volts:
40 Amps
Connected Load @ 240V:
13 kW
General Specifications
AB-1200:
Information available at frigidaire.com/en/ab1200
Safety Certifications and Approvals
