Description

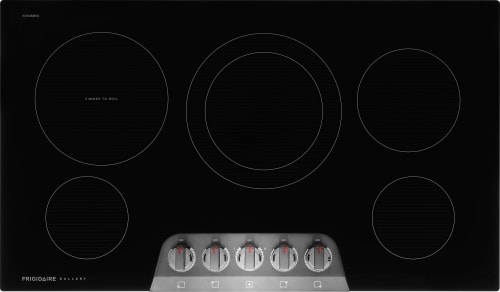

36 Inch Electric Cooktop with 5 Elements
The Frigidaire Gallery 36" Electric Cooktop delivers powerful, precise performance with five flexible elements, including a 3,200-Watt EvenTemp™ element and a versatile 2-in-1 Dual Element. Features sleek backlit LED knobs and a smooth glass surface that makes cooking and cleanup easier. And with the Frigidaire® Fit Promise, you can install with confidence knowing it’s guaranteed to fit your existing cutout, or we’ll cover the modification cost up to $100.
Specifications
Cooktop
Cooking Surface Type:
Smooth
Hot-Surface Indicator Light:
Yes
Display
Dimensions and Volume
Minimum Cutout Width:
33 7/8"
Minimum Cutout Depth:
19 1/8"
Maximum Cutout Width:
36 1/8"
Maximum Cutout Depth:
20 1/2"
Installation
Installed Over a Wall Oven:
Yes
Power Supply Connection Location:
Right Center
Certifications and Approvals
Cooktop Performance
Right Front Element Burner Size:
6"
Right Rear Element Burner Size:
7"
Left Front Element Burner Size:
6"
Left Rear Element Burner Size:
9"
Center Rear Element Burner Size (Small):
9"
Center Rear Element Burner Size (Large):
12"
Right Front Element Burner:
1200 Watts
Right Rear Element Burner:
1800 Watts
Left Front Element Burner:
1200 Watts
Left Rear Element Burner:
3200 Watts
Center Rear Element Burner (Small):
1800 Watts
Center Rear Element Burner (Large):
3000 Watts
Exterior
Electrical Specifications
Amps @ 240 Volts:
43.3 Amps
Connected Load @ 240V:
10.4 kW
Minimum Circuit Required:
50 Amps
General Specifications
Frigidaire Fit Promise:
Yes
AB-1200:
Information available at frigidaire.com/en/ab1200
Safety Certifications and Approvals
Features
5 Elements
- With five elements, this cooktop is designed to handle all of your cooking needs
EvenTemp™ Element
- Experience fast, even heat with our 3,200-Watt EvenTemp™ element—reducing hot and cold spots for consistent results every time.
2-in-1 Dual Element
- Expands from 9" to 12" to accommodate larger pots or cookware.
Ceramic Glass Cooktop
- Easily wipe away spills from the smooth glass cooktop.
Backlit LED Knobs
- Sleek LED knobs illuminate when in use, so you always know which element is on.
Keep Warm Zone
- Keeps food warm until everything - and everyone - is ready.
Additional Features
Key Features
Even Temp™
Even Temp™ ensures heat is evenly distributed across its surface, minimizing hot spots and cold areas in your pan for consistent cooking.
