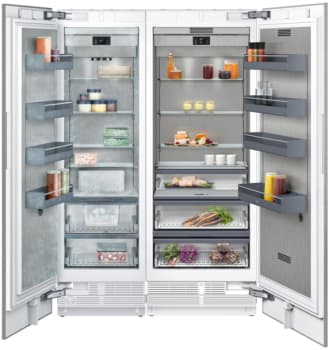

Gaggenau 400 Series GAREFFR30241 - Gaggenau Side-by-Side Refrigerator Freezer Column Set
Gaggenau 400 Series GAREFFR30241 - Gaggenau Side-by-Side Refrigerator Freezer Column Set
Gaggenau 400 Series GAREFFR30241 - 400 Series Panel Ready 16.8 Cu. Ft. Refrigeration Column
Gaggenau 400 Series GAREFFR30241 - Front View
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Gaggenau 400 Series GAREFFR30241
Authorized
Dealer

Gaggenau 400 Series
GAREFFR30241
Side-by-Side Column Set with 30 Inch Refrigerator and 24 Inch Freezer

Top Quality Store on Google
Save $2,360!
included items
30 Inch Panel Ready Built-In Smart All Refrigeration Column (RC472705)
• 16.8 cu. ft. Capacity, Charcoal Air Filter, Automatic Defrosting
24 Inch Panel-Ready Built-In Smart All Freezer Column (RF461705)
• 12.2 cu. ft. Net Volume, Ice Maker, Water Filter
Side-by-Side Installation Kit (For Connecting Any Two Columns) (RA460000)
Refrigerator Width:
30 Inch
24 Inch
30 Inch
36 Inch
Freezer Width:
24 Inch
18 Inch
24 Inch
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Gaggenau
Series: Vario 400 Series
Model: RC472705
Appearance
Type: Built In
Style: Column
Size: Full Size
Counter Depth: Yes
Door Style: One Door
Glass Door: No
Freezer: No
Hinge Side: Right
Field Reversible Doors: Yes
Accepts Custom Panels: Trim Kit Required
Color: Panel Ready
Door Color: Panel Ready
Cabinet Color: Panel Ready
Interior Color: Grey
Freezer Drawers: No
Door Hinge Covers/Hidden Hinges: Yes
Rollers: No
Leveling Legs: Yes
Column: Yes
Capacity
Total Capacity: 16.8 Cu. Ft.
Dimensions
Width: 29 3/4 Inch
Depth: 24 Inch
Height: 83 3/4 Inch
Cutout Width: 30 Inch
Cutout Depth: 24 Inch
Cutout Height: 84 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K
Smart
WiFi: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
App Integration: Home Connect
Installation
Flush Installation: Yes
Features
Stainless Steel Interior: Yes
Smart Home / App Compatible: Yes
Remote Access: Yes
LED Lighting: Yes
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 4
No. of Fixed Shelves: 1
No. of Adjustable Shelves: 3
Spill Safe Shelves: Yes
No. of Door Bins: 3
Adjustable Door Bins: Yes
Gallon Door Storage: Yes
Humidity Controlled Crispers: 1
Keurig Brewing System: No
Touch Screen: Yes
Odor Control: Yes
Technical Details
Energy Star Rated: Yes
Amps: 15
Voltage: 120 Volts
Water
Water Dispenser: No
Hot Water Dispenser: No
Sparkling Water Dispenser: No
Water Filtration: No
Settings
Digital Temperature Control: Yes
Convertible Freezer/Refrigerator: No
GTIN
UPC: 825225961079
Are you a Trade Pro? Join Now

Specifications

Features
Interior:
Stainless steel with solid anthracite aluminum elements
Lighting:
Warm white and glare-free LED light spots
Inner Door:
Flat stainless steel
Door racks:
Solid anthracite aluminum
Included Accessories:
Egg holder with lid
Fresh cooling drawer:
Yes, Manually adjustable humidity
Sabbath Mode:
Yes
ENERGY STAR® Certified:
Yes
Planning Notes
Door hinge:
Right, reversible.
Door opening angle:
115°, fixable at 90°
Technical Specifications
Total Amps:
15 A.
Voltage:
120 V / 60 Hz
Connecting cable:
118" (3m), detachable.

Features

Charcoal Air Filter
  • An activated charcoal air filter helps keep your unit smelling fresh.
Automatic Defrosting
  • Automatic defrosting with defrost water evaporation
No-Frost Technology with Fast Cooling
  • Temperature adjustable from 35°F to 46°F (+2°C to +8°C).
TFT Touch Display
  • Control your unit through a TFT touch sensor operation and clear text display.
LED Interior Lighting
  • 4 brilliant LED light spots with warm white, glare-free light within cooling area and drawers.
Home Connect
  • Home network integration for digital services wireless via WiFi.
Sabbath mode certified by Star-K
  • When Sabbath mode is active, the appliance can only be opened using a handle.
Other Features
  • Dynamic cold air distribution.
  • Cushioned door closing system.
  • Open-door and malfunction alarm.
  • Manually adjustable humidity control.
  • ENERGY STAR Certified
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Additional Planning Notes
Warranty
Specification Sheet
Energy Guide
Home Connect Brochure
Installation Instructions
Product Information
Brand: Gaggenau
Series: Vario 400 Series
Model: RF461705
Appearance
Type: Built In
Style: Column
Size: Full Size
Counter Depth: Yes
Color: Stainless Steel
Hinge Side: Left
Field Reversible Doors: Yes
Accepts Custom Panels: Trim Kit Required
Column: Yes
Capacity
Total Capacity: 12.2 Cu. Ft.
Dimensions
Width: 23 15/16 Inch
Depth: 24 Inch
Height: 83 3/4 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K
Smart
WiFi: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: Yes
Features
Defrost: Automatic
Ice Maker: Yes
Interior Light: Yes
Quick Freeze: Yes
Type of Shelves: Glass
Glass Shelves: Yes
Number of Drawers: 2
Number of Shelves: 4
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: Home Connect
Technical Details
Energy Star Rated: Yes
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 825225960928
Are you a Trade Pro? Join Now

Specifications

Technical Data
Watts:
350 Watts
Frequency:
60 Hz
Approval certificates:
CSA
Total Amps:
15 A.
Power cord length (in):
139 1/3
Plug type:
120V-3 prong
Water pressure:
29 to 116 psi.

Features

Ice Maker
  • Integrated in the freezer compartment, with fixed inlet water connection
  • Ice cube production approx. 1.4 kg/24 h, with removable 2.5Kg ice storage container
Water Filter
  • Particle filter for water inlet, integrated in ventilation grille area
No-frost Technology
  • No-frost technology with fast freezing at -30 °C
TFT Touch Display
  • TFT touch display operation
Automatic Defrosting
  • Automatic defrosting with defrost water evaporation
Open Door Alarm
  • Open-door and malfunction alarm
Wi-Fi
  • Home network integration for digital services (Home Connect) wireless via WiFi
LED Lights
  • Brilliant LED light illuminates with warm white, glare-free light
Star-K
  • Rest mode certified by Star-K, when rest mode is active, the appliance can only be opened using a handle.
Additional Features
  • Dynamic cold air distribution
  • Cushioned door closing system
  • Temperature adjustable from -16 °C to -24 °C
  • 4 safety glass shelves, white glass, 3 of which are individually adjustable in height
  • 2 fully extendable drawers with transparent front
  • Flat door rail system with fully flexible positioning of door racks
  • 4 height-adjustable door racks
Planning Notes
  • Flat hinge.
  • Door hinge left, reversible.
  • Door opening angle of 115°, fixable at 90°.
  • In case of door opening angle of 90° the standard ice storage container cannot be removed. A small ice storage container (RA 448 220) is available to ensure access. This change must be done prior to fixing the door.
  • Shut-off valve for water connection must be planned next to the appliance and always be accessible.
  • If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set.
