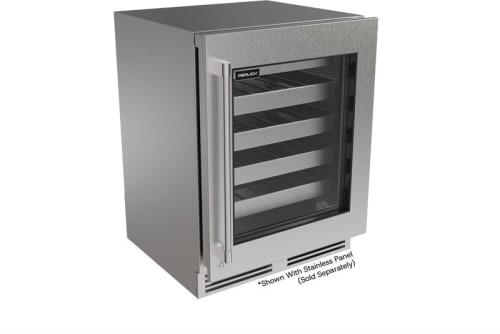

Perlick G5 ADA Compliant Models G5WR24GA - 24 Inch Panel Ready ADA Undercounter Wine Cooler
Perlick G5 ADA Compliant Models G5WR24GA - 24 Inch Panel Ready ADA Undercounter Wine Cooler
Perlick G5 ADA Compliant Models G5WR24GA - 24 Inch Panel Ready ADA Undercounter Wine Cooler
Perlick G5 ADA Compliant Models G5WR24GA - 24 Inch Panel Ready ADA Undercounter Wine Cooler
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Perlick G5 ADA Compliant Models G5WR24GA
Authorized
Dealer

Perlick G5 ADA Compliant Models
G5WR24GA
24 Inch Panel Ready ADA Undercounter Wine Cooler with 4.5 cu. ft. Capacity, RAPIDcool™ Technology, Intuitive Touchscreen Controls, Total Color Control™ LED Lighting, Ultra-Quiet Variable Speed Cooling, Indoor/Outdoor Rated, Sabbath Mode, STAR-K Certified, ENERGY STAR Certified and ADA Compliant: Panel Ready Glass Door

Top Quality Store on Google
Only 4 left in stock
Door: Panel Ready Glass Door
Panel Ready Solid Door
Panel Ready Solid Door
G5WR24SA
$4,700.00
In stock
Panel Ready Glass Door
Panel Ready Glass Door
G5WR24GA
$5,000.00
In stock
$5,000.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!
Product Information
Brand: Perlick
Series: G5 ADA Compliant Models
Model: G5WR24GA
MPN: URA24R415-SRR0
Are you a Trade Pro? Join Now

Description

G5 ADA - 24 Inch Panel Ready ADA Undercounter Wine Cooler with 4.5 cu. ft. Capacity
The Perlick G5 ADA Undercounter Wine Reserve is expertly engineered to preserve and showcase your collection with precision and consistency. Featuring RAPIDcool™ technology and an open-shelf airflow design, it maintains stable temperatures to protect the character and flavor of every bottle. With its durable stainless steel construction, customizable LED lighting, and seamless panel-ready integration, it delivers both refined style and reliable performance for indoor or outdoor entertaining spaces.

Specifications

Overview
Product Type:
Wine Reserve
Installation Type:
Undercounter, Panel Ready
Usage:
Indoor/Outdoor
ADA Compliant:
Yes
Total Capacity:
4.5 Cu. Ft.
Bottle Capacity:
Approximately 20 Wine Bottles (750ml)
Details
Refrigerant:
R600a
Refrigerant Charge:
57g
Cooling System:
Capillary Tube
Defrost Type:
Off Cycle
Defrost Initiation:
Automatic
Temperature Range:
40°F to 68°F
Factory Set Temperature:
55°F
Heat Rejection:
450 BTU/hr
Features
Control Type:
Digital Touchscreen
Lighting:
LED
Ventilation:
Front Vented
Electrical
Voltage:
115V
Frequency:
60 Hz
Phase:
1
Amps:
1.9
Plug Type:
NEMA 5-15P
Cord Length:
6 Ft
Dimensions
Width:
23 7/8"
Depth:
22 1/2"
Height:
32"
Cutout Dimensions
Cutout Width:
24"
Cutout Depth:
24"
Cutout Height:
32 1/4"
Weight
Shipping Weight:
226 lbs.
Unit Weight:
190 lbs.

Features

G5 Series - Durable Stainless Steel Construction
  • Built with high-quality 400-series stainless steel interiors and exteriors, delivering long-lasting durability and corrosion resistance.
ADA Compliant Design
  • Meets ADA height requirements for accessible installation while maintaining full-capacity performance.
Wine-Optimized Storage
  • Open-shelf design allows consistent airflow around each bottle, reducing temperature fluctuations and helping preserve wine quality over time.
Customizable Shelving
  • Vinyl-coated steel shelves with stainless steel fronts support optional custom wood paneling for a fully integrated, cabinetry-matched appearance.
RAPIDcool™ Technology
  • Chills quickly and evenly throughout the cabinet with Perlick’s fastest cool-down performance yet, ensuring precise temperature control.
Quick-Cool Mode
  • Provides on-demand rapid cooling, lowering temperatures up to 20% faster than standard operation.
Indoor/Outdoor Rated
  • Engineered for consistent performance in both indoor and outdoor environments, from kitchens to patios.
Smart Defrost & Monitoring
  • Adaptive system maintains frost-free operation while monitoring unit health for diagnostics and service support.
Touchscreen Controls
  • Intuitive interface offers easy access to temperature adjustments, lighting settings, and diagnostics.
Total Color Control™ LED Lighting
  • 20 customizable lighting options, including four white tones, allow you to create the perfect display environment.
Anti-Condensation System™
  • Prevents exterior moisture buildup to maintain a clean, polished look.
Soft-Close Hinges
  • Fully concealed hinges ensure smooth, quiet door operation and seamless integration.
Low-E Triple Pane Glass (Glass Models)
  • Argon-filled, UV-resistant glass improves insulation and helps protect wine from light exposure.
Ultra-Quiet Variable Speed Cooling
  • Delivers powerful cooling with up to 55% quieter operation than previous generations.
Front-Access Leveling Legs
  • Patent-pending design allows easy leveling adjustments during installation.
Eco-Friendly Refrigerant
  • Uses R600a refrigerant with zero ozone depletion potential and low environmental impact.
Sabbath Mode (STAR-K Certified)
  • Allows operation in accordance with Halacha, Shabbat, and Jewish holidays.
Industry-Leading Warranty Protection
  • Includes a 3-year full parts and labor warranty plus a 6-year sealed system warranty for long-term reliability.
