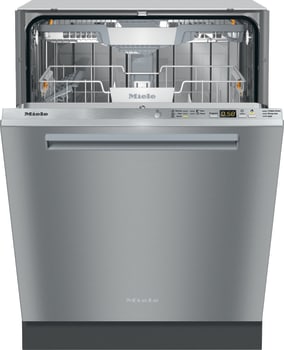

Miele PureLine G5266SCVISFP - Front View
Miele PureLine G5266SCVISFP - Front View
Miele PureLine G5266SCVISFP - Front View
Miele PureLine G5266SCVISFP - Controls
+6

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Miele PureLine G5266SCVISFP
Authorized
Dealer

Miele PureLine
G5266SCVISFP
24 Inch Fully Integrated Dishwasher with 16 Place Setting Capacity, MultiFlex 3D Cutlery Tray, 42 dBA, DirectSelect Controls, QuickIntenseWash, AutoOpen Drying, Water Softener, ExtraClean & ExtraDry Options, and Energy Star Rated: Stainless Steel, Pocket Handle

Top Quality Store on Google
$200 Rebate
Bundle & Save up to 10%
quick specs
Width: 23 5/8 Inch
Depth: 21 3/4 Inch
Height: 33 3/4 Inch
Capacity: 16 Place Settings
Control Type: Digital
Adjustable Upper Rack: Yes
Third Rack Type: Cutlery Tray
Stainless Steel Interior: Yes
WiFi: No
Cycles: 5
Delay Start: Yes
Dry Type: Condensing
High Temperature Wash: Yes
NSF Certified Rinse: No
Quick Wash Setting: Yes
Sensor Clean: Yes
Warranty Terms: 2 years
?
View more
Color: Stainless Steel, Pocket Handle
Stainless Steel, Proline Handle
Stainless Steel, Proline Handle
G5266SCVISF
$2,099.00
In stock
Stainless Steel, Pocket Handle
Stainless Steel, Pocket Handle
G5266SCVISFP
$2,099.00
In stock
Panel Ready
Panel Ready
G5266SCVI
$1,899.00
In stock
$2,099.00
Rebate(s): -$300.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Miele: Dishwasher Installation Savings Save $200 Expires 12/31/2026 Miele: $100 Off Purchase of Select Miele Dishwashers Expires 12/31/2026 Miele: Kitchen Package Promotion Save up to 10% Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Miele
Series: PureLine
Model: G5266SCVISFP
Warranty Terms: 2 years
?
Dimensions
Width: 23 5/8 Inch
Depth: 21 3/4 Inch
Height: 33 3/4 Inch
Cutout Width: 23 5/8 Inch
Cutout Depth: 22 1/2 Inch
Cutout Height: 33 3/4 Inch
Shabbos Compliance
Sabbath Mode: No
Capacity
Capacity: 16 Place Settings
Appearance
Type: Built In
Subtype: Single Drawer
Color: Stainless Steel
Accepts Panels: No
Features
Control Type: Digital
Electronic Display: Yes
Control Style: Fully Integrated
Recessed Handles: Yes
Adjustable Upper Rack: Yes
Fold-Down Tines: Yes
Third Rack Type: Cutlery Tray
Cutlery Tray: Yes
Cup Shelves: Yes
Stemware Holder: No
Tall Tub: Yes
Stainless Steel Interior: Yes
Number of Spray Arms: 3
Rinse Aid Dispenser: Yes
Water Heating: Yes
Fingerprint Resistant: Yes
Leveling Legs: Yes
Interior Light: No
Auto Detergent Dispenser: No
Smart Home / App Compatible: No
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
Wash Features
Cycles: 5
Options: 3
Delay Start: Yes
Dry Type: Condensing
Hard Food Disposer: No
High Temperature Wash: Yes
NSF Certified Rinse: No
Quick Wash Setting: Yes
China/Crystal Setting: Yes
Sanitize Cycle: Yes
Sensor Clean: Yes
Heavy Duty Cycle: Yes
Sound Level: 42 dB
Leak Protection: Yes
Rinse & Hold: Yes
Steam Wash: No
Half Load Option: No
Delicate Wash: No
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Approved for Outdoor Use: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 21526664USA
EAN: 4002516397694
Are you a Trade Pro? Join Now

Description

24 Inch Fully Integrated Built-In Dishwasher with 3D MultiFlex Cutlery Tray
Miele adds a professional, sleek touch to your kitchen with its 24 inch dishwasher with 3D MultiFlex Tray. With its CleanTouch Steel finish which is resistant from fingerprints, scratches and smudges, your dishwasher is guaranteed always look spotless without the hassles of frequent maintenance. The minimalist and straightforward DirectSelect push-button controls paired with its innovative display technology eliminates the need to memorize and navigate through a complex user interface. Clean more in one load with the 3D Multiflex Tray. Its highly customizable layout can provide you with a myriad of ways to place your dirty dishes. It offers a height-adjustable side section for smaller items as well as a width-adjustable side section for stemware. This dishwasher lets you live on-the-go with the QuickIntenseWash program, which is gives you spotless clean dishes in just 58 minutes. Bring luxury and quality into your home with Miele.

Specifications

Overall Unit Dimensions
Width:
23 9/16" (598 mm)
Height:
33 11/16" - 36 1/4" (855 - 920 mm)
Depth:
22 7/16" (570 mm) [Depth does not include door panel]
Minimum Cabinet Niche Opening
Width:
23 5/8" (600 mm)
Height:
33 3/4" (857 mm)
Depth:
22 7/16" (570 mm)
Water Supply Requirements
Maximum Water Temperature:
Max 150°F/65°C
Fitting:
Male 3/8" compression fitting
Water Pressure Range:
7.25 psi (0.5 bar) and 145 psi (10 bar)
Water Connection Line (Supplied)
Length:
5 ft (1.5 m)
Fitting:
Female 3/8" compression
Drain Hose (Supplied)
Length:
5 ft (1.5 m)
Internal Diameter:
7/8" (22 mm)
Electrical
Electrical Requirements:
110V/120V, 60Hz, 15 Amps
Power Cord (Convertible to hardwire):
NEMA 5-15 plug, 5 ft (1.52 m)
Shipping
Shipping Weight:
121 lbs (55 kg)
Shipping Width:
27 1/8"
Shipping Height:
38 1/8"
Shipping Depth:
26 3/8"

Features

Flexline Baskets
  • Flexibility creates convenience: Easy adjustment and flexible loading for the best cleaning results.
QuickIntenseWash
  • The QuickIntenseWash program and the perfectly matching All-in-1 UltraTabs achieve the best possible cleaning and drying results on normally soiled dishware in 58 minutes, just like the PowerDisk.
  • These specially developed tabs only take 2–3 minutes to dissolve. Thus, the cleaning performance begins right at the start of the wash cycle.
ComfortClose
  • The door is extremely easy to open and close, and stays open in any position.
AutoOpen Drying
  • The dishwasher door opens automatically at the end of a program cycle.
Whisper Quiet 42 dBA
  • Does its job without making a fuss - running at a very low 42 dBa decibel rating, they produce little in the way of noise.
ENERGY STAR® Rated
  • Energy Star® rated dishwashers use less water and energy than standard models helping to save money on utility bills
Other Features
  • MultiFlex 3D Cutlery Tray
  • DirectSelect Controls
  • Water Softener
  • ExtraClean & ExtraDry Options
Key Features
3D MultiFlex Tray
The 3D MultiFlex Tray features a sunken central section with two adjustable side sections. The left section can be shifted to the right to make room for tall wine glasses in the upper basket. Meanwhile, the depth of the right section can be easily adjusted to fit larger utensils, as well as small cups, bowls, or plates.
AutoOpen Drying
At the end of the program cycle, the dishwasher door opens automatically, creating a small gap. A fan helps expel the warm, moist air from the wash cabinet, ensuring even tough-to-dry items like plastic bowls are fully dried.
QuickIntenseWash
Optimal cleaning performance for moderately soiled dishware in just 58 minutes.
