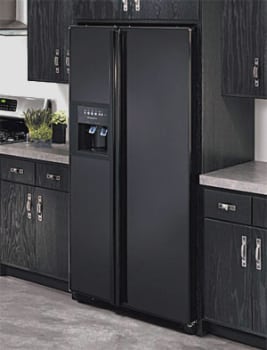

Frigidaire FSC23F7TDS - Main
Frigidaire FSC23F7TDS - Main

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FSC23F7TDS
Authorized
Dealer

Frigidaire
FSC23F7TDS
20 Cu. Ft. Side by Side Counter-Depth Refrigerator with 6 Button Clean Touch Dispenser & Accepts Custom Door Panels: Stainless Steel

Top Quality Store on Google
quick specs
Refrigerator Capacity: 14.07 Cu. Ft.
Freezer Capacity: 8.53 Cu. Ft.
Total Capacity: 22.6 Cu. Ft.
Width: 35 5/8 Inch
Depth: 29 3/8 Inch
Depth with Door at 90°: 45 1/4 Inch
Height: 69 5/16 Inch
Gallon Door Storage: Yes
Water Dispenser: External
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Frigidaire
Model: FSC23F7TDS
Warranty Terms: 1 year
?
Appearance
Type: Freestanding
Style: Side-by-Side
Size: Full Size
Counter Depth: Yes
Door Style: One Door
Field Reversible Doors: No
Door Finish: Smooth
Accepts Custom Panels: No
Color: Stainless Steel
Door Color: Stainless Steel
Capacity
Refrigerator Capacity: 14.07 Cu. Ft.
Freezer Capacity: 8.53 Cu. Ft.
Total Capacity: 22.6 Cu. Ft.
Dimensions
Width: 35 5/8 Inch
Depth: 29 3/8 Inch
Depth without Door and Handles: 23 5/8 Inch
Depth without Handles: 26 7/8 Inch
Depth with Door at 90°: 45 1/4 Inch
Height: 69 5/16 Inch
Height without Hinges: 68 3/16 Inch
Refrigerator Features
Type of Shelves: Glass
Slide-out Shelves: Yes
Spill Safe Shelves: Yes
Cantilever Shelves: No
Split Shelves: No
No. of Door Bins: 4
Adjustable Door Bins: Yes
Gallon Door Storage: Yes
Humidity Controlled Crispers: 2
Freezer Features
Defrost: Automatic
Quick Freeze: No
Type of Shelves: Glass
No. of Shelves: 3
No. of Baskets: 6
Technical Details
Energy Star Rated: No
Approved for Outdoor Use: No
Amps: 15
Voltage: 120 Volts
Water
Water Dispenser: External
Settings
Digital Temperature Control: Yes
GTIN
UPC: 012505689635
Are you a Trade Pro? Join Now

Description

Frigidaire, a known leader in refrigeration works tirelessly in perfecting refrigerators by loading them with practical space saving features that ensure long lasting food freshness. Stocked with storage bins, shelves and crispers you will always be able to find a spot for your fresh vegetables that need a little extra care. Front-Mounted cold controls make it easy to keep your refrigerator at its optimal temperature.

Specifications

Dimensions/Weight
Width:
35 5/8"
Height (incl. Hinge Cover):
69 5/16"
Height:
68 3/16" with 3/8" Rollers
Depth without Doors:
23 5/8"
Depth with Doors:
26 7/8"
Depth incl. Handles:
29 3/8"
Product Weight:
300 lbs.
Shipping Weight:
325 lbs.
Capacities
Total Capacity:
22.6 Cu. Ft.
Fresh Food Volume:
14.07 Cu. Ft.
Freezer Volume:
8.53 Cu. Ft
Total Shelf Area:
23.3 Sq. Ft.
Exterior Conveniences
Door Panel Kit Ready:
Yes
Door Handle:
Extruded Full-Length
Dispenser:
6 Button
Water:
Yes
Cubes:
Yes
Crushed:
Yes
Extra Ice:
Yes
Lock:
Yes
Illuminated Dispenser Paddles:
Yes
Interior Conveniences
Filter Location:
Front
Filter Type:
PureSource 2
Filter Change Signal:
Yes
Door Ajar Alarm:
Yes
Sliding SpillSafe Shelf:
2
SpillSafe Shelf:
1
Adjustable Bins:
2
Fixed Bins:
2
Dairy Door:
Clear
Fresh Lok Meatkeeper:
Clear
Crispers:
Clear
Humidity Controls:
2
Wine Rack:
Clear
In-Door Can Rack:
Clear
Tall Bottle Retainer:
Clear
Freezer Conveniences
Door Bins:
3 Clear
Shelves:
3 Glass
Tilt-Out Wire Door Shelves:
1
Tall Basket:
2
Space-Saver Shelf:
Yes

Features

Refrigerator Section
  • SpaceWise Design
  • Trim-Kit Ready, to Accept Optional Decorator Door Panels
  • Extruded Full-Length Handles
  • Front-Mounted PureSource 2 Filter with Filter Change Signal
  • Front-Mounted Cold Controls
  • 6 Button Clean Touch Dispenser
  • Crushed/Cubes/Water/Extra Ice/Lock
  • Illuminated Dispenser Paddles
  • Backlit Control Panel
  • Door Ajar Alarm
  • 3 SpillSafe Glass Shelves (2 Sliding)
  • 1 Fixed Clear Gallon Door Bin
  • 2 Adjustable Clear 2-Liter Door Bins
  • 1 Fixed Clear Condiment Bin
  • Removable Dairy Compartment with Clear Door
  • Clear Fresh Lok Meatkeeper
  • 2 Clear Crispers
  • 2 Humidity Controls
  • Dual-Level Lighting
  • Clear In-Door Can Rack
  • Clear Wine Rack
  • Clear Tall Bottle Retainer
Freezer Section
  • 3 Fixed Clear Bins
  • 1 Tilt-Out Wire Shelf
  • 3 Glass Shelves
  • 2 Tall Baskets
  • Space-Saver Shelf
