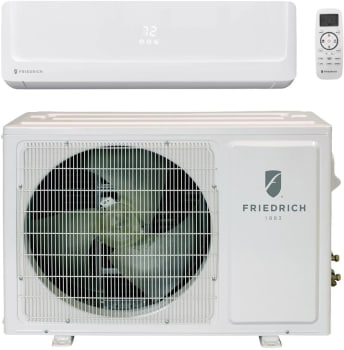

Friedrich Floating Air FRHW123A - Air Conditioning System
Friedrich Floating Air FRHW123A - Air Conditioning System
Friedrich Floating Air FRHW123A - Indoor Unit
Friedrich Floating Air FRHW123A - Outdoor Unit
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich Floating Air FRHW123A
Authorized
Dealer

Friedrich Floating Air
FRHW123A
Single Zone Mini Split System with 12000 BTUs, Heat Pump, Cooling Mode, Built-In Wifi, Remote Control, and R-410 Refrigerant

Top Quality Store on Google

Indoor Units
Outdoor Unit
included items
12000 BTU Single Zone Wall-Mounted Smart Indoor Unit (FRHSW12A3B)
• Precision Inverter® Technology, Fast Pro®, Soft Start Technology
12000 BTU Single Zone Ductless Air Conditioning Outdoor Unit (FRHSR12A3A)
• Precision Inverter® Technology, DiamonGold Advanced Corrosion Protection™, Soft Start Technology
BTU:
12,000 BTU
9,000 BTU
12,000 BTU
WiFi Connected:
Yes
Yes
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Friedrich
Series: Floating Air
Model: FRHSW12A3B
Dimensions & Weights
Width: 38 1/8 Inch
Depth: 10 Inch
Height: 13 1/8 Inch
Net Weight: 28.5 Lbs.
Shipping Weight: 34 Lbs.
Capacity
Heating Capacity: 13,000 BTU
Cooling Capacity: 12,000 BTU
General
AC System Type: Mini Split
Component Type: Indoor Unit
Operation: Cooling with Heat Pump
Placement Type: Wall Mount
Wireless Remote Control(s) Included: Included
Wired Remote Control(s) Included: Optional
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Performance
Energy Star Certified: Yes
Moisture Removal (Pts/hr): 2.5 Pts./Hr.
Airflow Rate Quiet (CFM): 345 CFM
Airflow Rate Low (CFM): 446 CFM
Airflow Rate Medium (CFM): 536 CFM
Airflow Rate High (CFM): 598 CFM
Operating Sound Level - Low (dB): 39 dB
Operating Sound Level - Medium (dB): 41 dB
Operating Sound Level - High (dB): 45 dB
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Liquid Line Outer Diameter: 1/4 Inch
Suction Line Outer Diameter: 3/8 Inch
Refrigeration System
Refrigerant Type: R-410A
Refrigerant Connection Type: Flare
Min. Line Length - Total: 10 Ft.
Max. Line Length - Total: 66 Ft.
Features
Program Timer: Yes
Air Filter: Yes
Filters Washable?: Yes
Filters Anti-microbial?: Yes
Sleep Mode: Yes
Soft Start: Yes
Self-Cleaning Indoor Coil: Yes
Hidden Display: Yes
Surge Cool/Heat: Yes
Auto Restart on Power Failure: Yes
Auto-changeover: Yes
Dehumidifying Mode: Yes
No. of Fan Speeds: 4
WiFi Connected: Yes
Technical Details
Voltage: 230 Volts
GTIN
UPC: 724587439342
EAN: 0724587439342
Are you a Trade Pro? Join Now

Description

Single Zone Wall-Mounted Smart Indoor Unit with Heat Pump
To ensure faster and easier installation and service, the Single Zone Wall-Mounted Smart Indoor Unit with Heat Pump is built with the Fast Pro® design, which makes it effortless to remove the entire blower wheel assembly and allows ease of access to the terminal blocks. It features a built-in wifi, allowing you to control the unit through your smartphone with the FriedrichGo™ app as well as with smart devices powered by Amazon Alexa and Google Home. With its Precision Inverter Technology, rest assured that comfort doesn't have to come with a hefty price tag. Exceptional efficiency, dependable performance, and state-of-the-art comfort delivered to you by Friedrich.

Specifications

System
Outdoor Model:
FRHSR12A3A
Specifications
Cooling Area (Sq. Ft.):
Up to 600
Capacity Cooling - Rated (BTU):
12000
Capacity Cooling - Min~Max (BTU):
4000-13500
Capacity Heating @47°F - Rated (BTU):
13000
Capacity Heating @17°F - Rated (BTU):
8000
Capacity Heating - Min~Max (BTU):
4000-14000
Moisture Removal (Pts/h):
2.5
Airflow CFM (Quiet, Low, Med, High):
598/536/446/345
Sound Rating (dBA):
45/41/39
Electrical Data
Minimum Ampacity (A):
12
Cooling Watts:
779
Cooling Amps:
4.6
Heating Watts:
856
Heating Amps:
4.8
Max. TD Fuse/Breaker (A):
15
Refrigeration System
Connections:
Flare
Factory Precharge (ft):
25
Refrigerant Charge (oz):
45.9

Features

Built-In WiFi
  • Control with your smartphone using the FriedrichGo™ app. Integrate into your smart home with Amazon Alexa or Google Home.
Precision Inverter® Technology
  • Floating Air Pro units are equipped with a variable speed compressor. This technology not only increases the unit's energy efficiency but also minimizes noise disruptions with ultra quiet operation.
Fast Pro®
  • Friedrich's contractor-friendly features for easy installation and up to 50% faster service.
Soft Start Technology
  • Starts the compressor with significantly reduced amperage at start up, saving energy versus compressors utilizing locked rotor amperage (LRA).
Auto Clean Indoor Coil
  • With the auto clean function, it's easier to wards off unwanted odors and bacteria.
Customizable 7-Day Schedules
  • Have maximum flexibility over your programmable thermostat as it lets you choose a different program to run for each day of the week. Perfect for people with erratic schedules.
Operates in Extreme Conditions
  • In cooling mode, Friedrich's Fast Pro technology can operate at low ambient temperatures as low as 5°F. Operation in heating mode will continue at low ambient temperatures as low as -4°F. It also has a low temperature compressor start-up protection.
Flexible Zone
  • Can be used in either a single zone or a multizone installation.
Industry-Leading Warranty
  • Floating Air units come with a standard 5-year limited parts warranty and a 7-year compressor warranty.
ENERGY STAR Qualified
  • For eco-friendly comfort
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Instruction Manual
Energy Guide
Warranty
Product Specification Sheet
Brochure
Product Information
Brand: Friedrich
Series: Floating Air
Model: FRHSR12A3A
Dimensions & Weights
Width: 31 7/8 Inch
Depth: 11 Inch
Height: 23 Inch
Net Weight: 84 Lbs.
Shipping Weight: 92.5 Lbs.
Capacity
Heating Capacity: 13,000 BTU
Cooling Capacity: 12,000 BTU
Min Connectable Capacity: 1 BTU
Max Connectable Capacity: 1 BTU
General
AC System Type: Mini Split
Component Type: Outdoor Unit
Operation: Cooling with Heat Pump
Min No. of Connectible Indoor Units: 1
Max No. of Connectible Indoor Units: 1
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Running Current Cooling - Rated (Amps): 4.6 Amps
Running Current Heating - Rated (Amps): 4.8 Amps
Minimum Ampacity (Amps): 12 Amps
Max. TD Fuse/Breaker: 15 Amps
Power Input Cooling - Rated (Watts): 779 Watts
Power Input Heating - Rated (Watts): 856 Watts
Performance
Compressor Noise Level - Cooling (dB): 55 dB
Compressor Noise Level - Heating (dB): 55 dB
Energy Star Certified: Yes
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Liquid Line Outer Diameter: 1/4 Inch
Suction Line Outer Diameter: 3/8 Inch
Refrigeration System
Refrigerant Type: R-410A
Compressor Type: Rotary
Refrigerant Charge: 45.9 Ft.
Min. Line Length - Total: 10 Ft.
Max. Line Length - Total: 66 Ft.
Max. Height Diff. btwn. Indoor and Outdoor Units: 33 Ft.
Outside Temperature Range for Cooling - Min.: 0 °F
Outside Temperature Range for Cooling - Max.: 115 °F
Outside Temperature Range for Heating - Min.: -13 °F
Outside Temperature Range for Heating - Max.: 75 °F
Features
Sleep Mode: Yes
Inverter (Variable speed compressor): Yes
Low Ambient Operating Threshold (F°): -13
Corrosion Protection: Yes
No. of Fan Speeds: 4
WiFi Connected: Yes
Technical Details
Voltage: 230 Volts
GTIN
UPC: 724587438659
Are you a Trade Pro? Join Now

Description

Single Zone Ductless Air Conditioning Outdoor Unit with Heat Pump
This Single Zone Air Conditioning Outdoor Unit with Heat Pump pairs with a Friedrich Wall-Mounted Heat Pump indoor unit. With its Precision Inverter Technology, rest assured that comfort doesn't have to come with a hefty price tag. The DiamonGold Advanced Corrosion Protection™ ensures that your outdoor unit remains in top condition even in corrosive environment. Trust your unit to work even in severely cold weather as it is designed to be able to operate in low ambient conditions. Expect nothing but exceptional efficiency and dependable performance from Friedrich.

Specifications

Specifications
Power Source:
208/230-60-1
Est. Yearly Operating Cost (USD):
70
Cooling Amps (A):
4.6
Heating Amps (A):
4.8
Power and Communication Cable (No. x AWG):
4 x 14 AWG
Refrigeration System
Refrigerant:
R410A
Factory Precharge Line Length (ft.):
25
Liquid Line O.D. (in.):
1/4
Suction Line O.D. (in.):
3/8
Min./Max Line Length (ft.):
10-66
Max. Height Difference (ft.):
33
Operating Range - Cooling (°F):
0°-115°
Operating Range - Heating (°F):
-13°-75°
Minimum Ampacity (A):
12
Max. TD Fuse/Breaker (A):
15

Features

Precision Inverter® Technology
  • Floating Air Pro units are equipped with a variable speed compressor. This technology not only increases the unit's energy efficiency but also minimizes noise disruptions with ultra quiet operation.
DiamonBlue Advanced Corrosion Protection®
  • Provides outstanding corrosion resistance protection and extends the life of the unit, especially in coastal or corrosive environments.
Soft Start Technology
  • Starts the compressor with significantly reduced amperage at start up, saving energy versus compressors utilizing locked rotor amperage (LRA).
Operates in Extreme Conditions
  • In cooling mode, Friedrich's Fast Pro technology can operate at low ambient temperatures as low as 5°F. Operation in heating mode will continue at low ambient temperatures as low as -4°F. It also has a low temperature compressor start-up protection
R-410A Refrigerant
  • Makes operations more cost-effective and environmentally friendly as compared to R-22 refrigerant.
