Home > Cooking Appliances > Range Hoods > Insert Liner Hoods > FRHRE534648

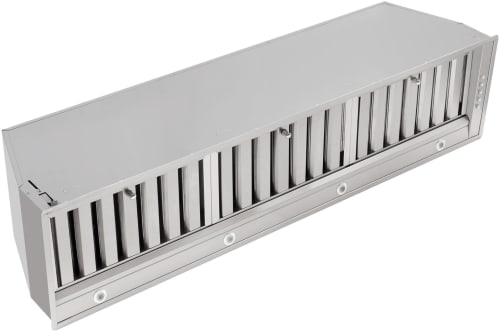

Forno Alta Qualita Frassanito FRHRE534648 - 48 Inch Cabinet Insert Range Hood in Angled View
Forno Alta Qualita Frassanito FRHRE534648 - 48 Inch Cabinet Insert Range Hood in Angled View
Forno Alta Qualita Frassanito FRHRE534648 - 48 Inch Cabinet Insert Range Hood in Opened View
Forno Alta Qualita Frassanito FRHRE534648 - 48 Inch Cabinet Insert Range Hood in Bottom View
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Forno Alta Qualita Frassanito FRHRE534648
Authorized
Dealer

Forno Alta Qualita Frassanito
FRHRE534648
Cabinet Insert Range Hood with 3-Speeds, Push Button Controls, LED Lights, Dishwasher Safe Baffle Filters, and Stainless Steel Construction: 48 Inch Width, 900 CFM

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 47 1/8 Inch
Depth: 11 1/8 Inch
Height: 11 27/32 Inch
WiFi: No
CFM: 900 CFM
Noise Level: 1.41 Sones
Duct Size: 6 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
View more
Option: 48 Inch Width, 900 CFM
30 Inch Width, 450 CFM
30 Inch Width, 450 CFM
FRHRE534630
$399.00
36 Inch Width, 450 CFM
36 Inch Width, 450 CFM
FRHRE534636
$549.00
48 Inch Width, 900 CFM
48 Inch Width, 900 CFM
FRHRE534648
$799.00
$799.00
MSRP: $899.00
You save $100.00
OR
Have questions? Chat with us!

You Might Also Like

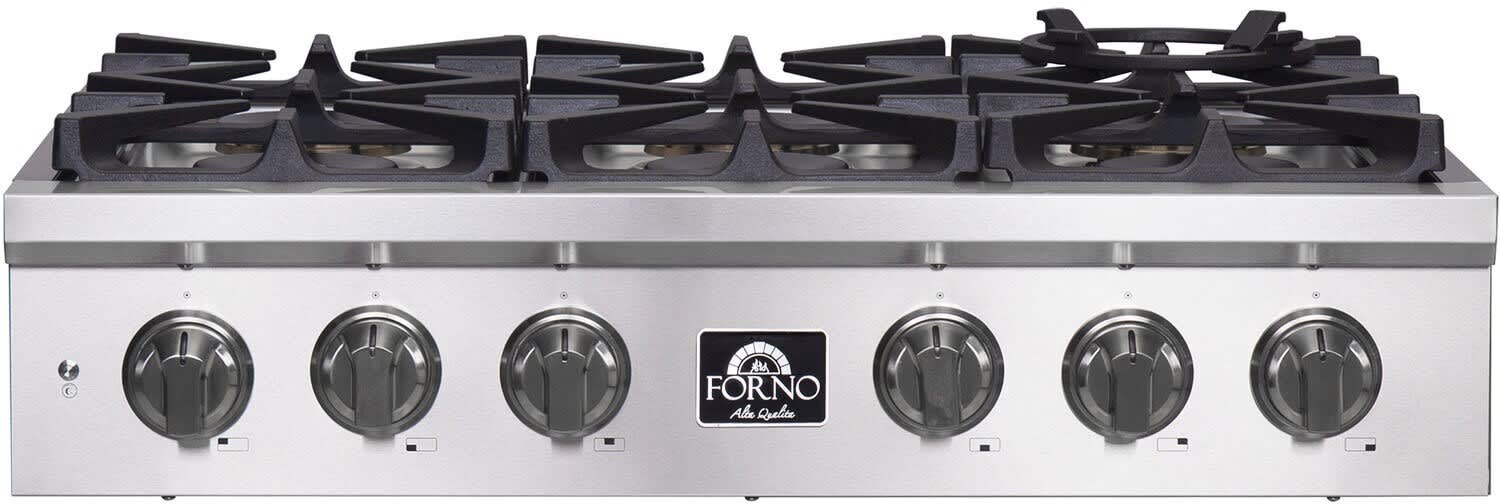

36 Inch Gas Rangetop
Forno
36 Inch Gas Rangetop
$1,949.00
48 Inch Freestanding Dual Fuel Range
Forno
48 Inch Freestanding Dual Fuel Range
$3,799.00
Product Information
Brand: Forno
Series: Alta Qualita Frassanito
Model: FRHRE534648
MPN: FRHRE5346-48
Appearance
Style: Standard Hood
Type: Cabinet Insert
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Wall Mount
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 47 1/8 Inch
Depth: 11 1/8 Inch
Height: 11 27/32 Inch
Smart
WiFi: No
Smart Accessory Required: No
Capacity
CFM: 900 CFM
Noise Level: 1.41 Sones
Duct Size: 6 Inch
Features
Number of Fan Speeds: 3
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
Tunable Lighting: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
CEE Rating: Not Available
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 686136953221
EAN: 0686136953221
Are you a Trade Pro? Join Now

Description

Cabinet Insert Range Hood with 3-Speed/9000 CFM Blower
The Forno Frassanito Recessed Range Hood is made of stainless steel for a clean sleek look. Boasting an impressive 900CFM airflow capture, this range hood will quickly trap cooking smoke, odors, and grease particles in the air. With 3 surface lights seeing the cooktop while in use. An intuitive 3-speed push-button control panel allows you to quickly adjust the hood's settings according to your specific needs. With its modern design and efficient performance, this range hood is sure to be a stylish yet practical addition to your kitchen.

Specifications

Appearance
Size:
48"
Style design:
Built-in / Insert
Unit Color:
Stainless Steel / Grey Metal
Ventilation Type:
Vertically Upward
Features
Control type:
Push Button Control
Number of Hood filters:
3
Hood Filter type:
Baffle
Light Type:
LED
Number of Lights:
4
Damper:
1
Number of Ducts:
2
Handles:
No
Handle Color:
N/A
Capacity
# Speed levels:
3
CFM (cubic feet per minute ):
Level 1 - 450, Level 2 - 650, Level 3 - 900
Air flow (m3/hr):
Level 1 - 765, Level 2 - 1105, Level 3 - 1530
RPM (Revolutions Per Minute):
Level 1 - 1130, Level 2 - 1590, Level 3 - 1820
Noise Level at each speed (Db):
Level 1 - 45, Level 2 - 55, Level 3 - 65
Technical Specifications
Electrical supply:
110~120V/60Hz
Receptacle type:
NEMA 5-15
Power rating:
460
Certification:
ETL
Warranty:
2 Years
Dimensions & Weights
Width:
47 1/8"
Depth:
11 1/8"
Height:
11 27/32"
Duct Shape:
Round
Duct Size:
6"
Net Weight (lbs):
58.64
Packaging dimensions:
53 37/50" W x 14 18/25" D x 15 7/20" H
Packaging Weight (lbs):
87.74
Warranty
Parts and Labor:
2 Years

Features

3-Speed/900 CFM Blower
  • A powerful 900 CFM airflow blower quickly and efficiently removes smoke, grease, and odors from your kitchen, ensuring maximum ventilation of fumes while minimizing noise levels.
Push Button Control
  • Makes it simple to adjust the fan speed according to your needs.
LED Lighting
  • Three LED surface lights offer long-lasting performance and energy efficiency with bright illumination of the cooking surface.
Baffle Filter
  • The baffle filter's combination of panels and curved plates a larger surface area that causes oils in the hot air to condensate on the steel. The dishwasher-safe design allows for easy cleaning.
45 dBA Noise Level
  • Cook in peace with a noise level of 45 decibels. Strike a balance between powerful ventilation and minimal noise for a more pleasant kitchen atmosphere, allowing you to focus on your culinary adventures without unnecessary distractions.
Insert Range Hood
  • Designed to fit seamlessly into any custom cabinetry installation or hood enclosure.
