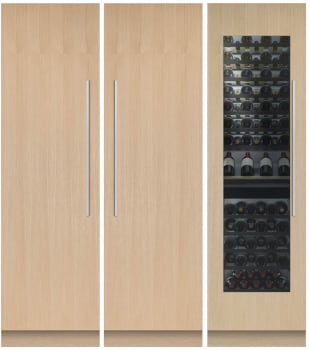

Fisher & Paykel Series 11 FPWINEFRIGSET2 - Integrated Column Wine Cabinet, 24"
Fisher & Paykel Series 11 FPWINEFRIGSET2 - Integrated Column Wine Cabinet, 24"
Fisher & Paykel Series 11 FPWINEFRIGSET2 - Integrated Column Wine Cabinet, 24"
Fisher & Paykel Series 11 FPWINEFRIGSET2 - Front Panel Ready
+20

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Fisher & Paykel Series 11 FPWINEFRIGSET2
Authorized
Dealer

Fisher & Paykel Series 11
FPWINEFRIGSET2
Column Set with 24 Inch Refrigerator, 24 Inch Freezer and 24 Inch Wine Cooler Panel Ready

Top Quality Store on Google
Save $2,444!
Bundle & Save up to 15%
included items
24 Inch Built-In Dual Zone Integrated Column Wine Cabinet (RS2484VL2K1)
• 91 Bottle Capacity, 1 Full Extension Display Shelf, 13 Full Extension Storage Racks
24 Inch Panel Ready Built-In Refrigerator Column (RS2484SRK1)
• 16.3 cu. ft. Capacity, ActiveSmart™ Foodcare, Stainless Steel Interior
24 Inch Panel Ready Freezer Column (RS2484FLJK1)
• 11.9 Cu. Ft. Capacity, ActiveSmart™ Foodcare, Variable Temperature Zones
$24,447.00
Rebate(s): -$2,444.70
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Protect Your Purchase
+$897
- 30% Cash Back! +$1197
Have questions? Chat with us!
Product Information
Brand: Fisher & Paykel
Series: Series 11
Model: RS2484VL2K1
MPN: RS2484VL2K1
Appearance
Type: Built In
Size: Full Size
Undercounter: No
Door Color: Panel Ready
Cabinet Color: White
Hinge Side: Left
Field Reversible Doors: No
Glass Door: Yes
Accepts Custom Panels: Yes
Compact (Category): No
Dimensions
Width: 23 3/4 Inch
Depth: 24 Inch
Height: 84 Inch
Bottle Capacity: 91 Bottles
Shabbos Compliance
Sabbath Mode: Yes
Smart
WiFi: No
Remote Control: No
Smart Accessory Required: No
Features
Temperature Zones: Dual
Temperature Control Type: Touchpad
Wine Racks: 13
Shelves: 1
Defrost: Automatic
Lock: Yes
Fingerprint Resistant: No
Purpose: Store
LED Lighting: Yes
Technical Details
Energy Star Rated: No
ADA Compliant: No
Approved For Commercial Use: No
Approved for Outdoor Use: No
Drain Required: No
Amps: 10
Voltage: 115 Volts
GTIN
UPC: 822843257515
EAN: 0822843257515
Are you a Trade Pro? Join Now

Description

24 Inch Built-In Dual Zone Integrated Column Wine Cabinet with 91 Bottle Capacity
Create a wine collector's ultimate kitchen with a panel ready Column Wine Cabinet that seamlessly integrates into your kitchen design.

Specifications

Capacity
Number of bottles:
91
Consumption
Energy usage:
229kWh/year
Features
Air filter lower compartment:
Yes
Air filter upper compartment:
Yes
Door alarm:
Yes
Full-extension display shelf:
1
Full-extension storage racks:
13
LED ceiling lighting:
Yes
LED side lighting:
Yes
Low vibration compressor:
Yes
Precision ball-bearing runner mounted racks:
Yes
Rated load for slide runners:
88lbs
SmartTouch interface at counter height:
Yes
Soft-mounted wine racks:
Yes
UV tempered glass door:
Yes
Performance
ActiveSmart™ wine care:
Yes
Dual evaporator:
Yes
Energy usage:
229kWh/year
Inverter controlled compressor:
Yes
Sabbath mode:
Yes
Variable temperature zones:
2
Variable wine modes:
Red, White, Sparkling, Cellar
Power Requirements
Rated current:
10A
Supply frequency:
60Hz
Supply voltage:
115V
Product Dimensions
Depth:
24"
Height:
84"
Width:
23 3/4"
Warranty
Parts and labor:
2 Years
Sealed system parts only:
5 Years

Features

91 Bottle Capacity
  • Storage flexibility for up to 91 wine bottles.
1 Full Extension Display Shelf
  • Brightly illuminates bottles on the display rack while all other racks remain dimly lit, bringing emphasis to those extra special bottles.
13 Full Extension Storage Racks
  • Accommodate a variety of bottle shapes and sizes and can be configured to store champagne and magnum bottles.
UV-Tempered Glass Door
  • In order to minimize the exposure of light which can damage the maturity of a wine, Fisher & Paykel wine cabinets are fitted with special UV-resistant insulated glass, simultaneously protecting and presenting your finest wines.
LED Lighting
  • It provides four beautiful illumination options to showcase the jewels of your collection, from a candlelit ambiance to brilliant display lighting.
SmartTouch™ Control Panel
  • For ease of use.
Perfect Fit
  • Customize your Integrated Column Wine Cabinet with a door panel that matches your kitchen cabinetry, or purchase our stainless steel door panel accessory.
Precise Temperature Control
  • Four specially developed wine modes provide optimal temperatures for serving and cellaring different types of wine.
Optimal Wine Care
  • To provide the optimal storage environment for your collection, your Integrated Column Wine Cabinet has been engineered to maintain a consistent temperature throughout both zones.
Reduced Vibration
  • With a quiet, low vibration compressor, full-extension slides with white oak shelving, and other strategically chosen absorptive materials, the Integrated Column Wine Cabinet carefully maintains the flavor profile of every drop.
Curate your Collection
  • Independent cradles can be adjusted to create your ideal display angle, while a water-based pencil and aluminum labels offer a stylish way to catalog your wine.
ActiveSmart™ Technology
  • Maintains optimum humidity with dual evaporator capability for ultimate temperature control.
Additional Features
  • Customizable Lighting
  • Air Filter Lower Compartment
  • Air Filter Upper Compartment
  • Door Alarm
  • LED Ceiling Lighting
  • LED Side Lighting
  • Low Vibration Compressor
  • Precision Ball-Bearing Runner Mounted Racks
  • 88 lbs Rated Load for Slide Runners
  • SmartTouch Interface at Counter Height
  • Soft-Mounted Wine Racks
  • Sabbath Mode
  • 2 Variable Temperature Zones
  • Variable Wine Modes: Red, White, Sparkling, Cellar
California residents see Prop 65 WARNINGS

Current Rebates

Fisher & Paykel - Create Kitchen Perfection | Save Up to 15% Download Form

Save Up to 15% + Free 5 Year Warranty

When You Buy
Buy Range or Built-in Refrigeration
You Get
Up to 15% + 5 year warranty
Expiration Date
12/31/2026
Savings Type
Mail-in Savings
Rebate
Submit-By: 12/31/26

Purchase any qualifying range or built-in refrigeration product to receive 10% Cashback.
Purchase four or more qualifying products* to receive 15% Cashback.
Purchase four or more qualifying products* and spend $25,000 to receive 15% Cashback + Free 5 Year Warranty.

*Limit of 1 product per category. Excludes closeouts.
Save time and Submit Your Claim Online

Available Rebates - May be Combined

Note: It is the sole responsibility of the customer to download and mail in the rebate form by the respective closing date. AJ Madison cannot be held responsible for non-compliance of the afore-mentioned.

AJ Madison Exclusive Rebate

Please note:

This rebate will only be paid on AJ Madison purchases only.
Purchases in any other store do not qualify for this rebate.
All rebate forms will be rejected.

Reviews

Wine Cooler Accessories

Manuals & Guides

Quick Reference Guide
18in Freezer and 24in Fridge Columns Dual Install Planning File
24in Freezer and 24in Fridge Columns Dual Install Planning File
24in Freezer and 30in Fridge Columns Dual Install Planning File
User Guide
Installation Guide
Installation Guide - Toe Kick
Install Guide - Water Filter Replacement
Product Information
Brand: Fisher & Paykel
Series: Series 9
Model: RS2484SRK1
MPN: RS2484SRK1
Appearance
Type: Built In
Style: Column
Size: Full Size
Counter Depth: Yes
Door Style: One Door
Glass Door: No
Hinge Side: Right
Field Reversible Doors: No
Accepts Custom Panels: Yes
Color: Panel Ready
Door Color: Panel Ready
Leveling Legs: Yes
Column: Yes
Capacity
Refrigerator Capacity: 12.4 Cu. Ft.
Dimensions
Width: 23 3/4 Inch
Depth: 24 Inch
Height: 84 Inch
Height without Hinges: 84 Inch
Shabbos Compliance
Sabbath Mode: Yes
Smart
WiFi: No
Features
Stainless Steel Interior: Yes
LED Lighting: Yes
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 5
Slide-out Shelves: No
Spill Safe Shelves: No
Cantilever Shelves: Yes
Split Shelves: No
No. of Door Bins: 4
Adjustable Door Bins: No
Gallon Door Storage: Yes
Temperature Zones: Dual
Keurig Brewing System: No
Touch Screen: No
Soft Close: Yes
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Amps: 10
Voltage: 115 Volts
Water
Water Dispenser: No
Hot Water Dispenser: No
Sparkling Water Dispenser: No
Water Filtration: No
Settings
Digital Temperature Control: Yes
Convertible Freezer/Refrigerator: No
Ice
Ice Dispenser: No
Ice Maker: No
Secondary Ice Maker: No
GTIN
UPC: 822843255979
EAN: 0822843255979
Are you a Trade Pro? Join Now

Description

24 Inch Panel Ready Built-In Refrigerator Column with 12.4 Cu. Ft. Total Capacity
This Integrated Fisher & Paykel Column Refrigerator is left hinge with a stainless steel interior. It can be installed separately or together with different sized Integrated Column Refrigeration for true design freedom. Our Energy Star certified ActiveSmart™ Foodcare Fridges & Freezers adapt to daily use by cooling and defrosting only when needed. The premium design and quality finish includes a steel interior lining as well as soft-close, full extension metal shelf runners for easy access and robust glass shelving. This means your fridge uses the energy it needs without compromising on food care. Finish them with our stainless steel door panels or customize to match your own kitchen cabinetry.

Specifications

Capacity
Volume:
12.4 cu. ft.
Volume refrigerator:
12.4 cu. ft.
Consumption
Energy rating:
Energy star
Energy usage:
232kWh/year
Features
Adjustable door shelves:
4
Adjustable glass cantilevered shelves:
Yes
Covered door shelves:
1
Door alarm:
Yes
Fruit and vegetable bins:
4
Gallon door shelves:
1
LED bin lighting:
Yes
LED ceiling lighting:
Yes
LED side lighting:
Yes
SmartTouch interface at counter height:
Yes
Soft-close fruit and vegetable bins:
Yes
Stackable bottle holders:
4
Performance
ActiveSmart™ technology:
Yes
Dual evaporator:
Yes
Frost free:
Yes
Humidity control system:
Yes
Inverter controlled compressor:
Yes
Sabbath mode:
Yes
Variable food modes:
Pantry; Fridge; Chill
Variable temperature zones:
2
Power Requirements
Rated current:
10A
Supply frequency:
60Hz
Supply voltage:
115V
Dimensions & Weights
Width:
23 3/4"
Depth:
24"
Height:
84"
Packaged weight:
275 lbs
Unpackaged weight:
258 lbs
Safety and Compliance
ADA compliant:
Yes
Warranty
Parts and labor:
2 years
Sealed system parts and labor:
Additional 3 years
Accessories
24" Stainless steel toe kick:
AKRS2404
42" Stainless steel toe kick:
AKRS4204
48" Stainless steel toe kick:
AKRS4804
54" Stainless steel toe kick:
AKRS5404
60" Stainless steel toe kick:
AKRS6004
66" Stainless steel toe kick:
AKRS6604
72" Stainless steel toe kick:
AKRS7204
78" Stainless steel toe kick:
AKRS7804
84" Stainless steel toe kick:
AKRS8404
Contemporary round handle kit:
AHS-RD84
Contemporary square handle kit:
AHD3-RD84
Joiner kit:
AJ-RS84LR
Professional round flush handle kit:
AHP3RDSF
Professional round handle kit:
AHC-RD84
Professional square handle kit:
AHV2-RD84
Square fine aluminum handle kit:
AHD5RDSF 25863
Square fine black handle kit:
AHD5RDSFB 25908
Stainless steel door panel:
24" Right hinge RD2484R4D

Features

ActiveSmart™ Technology
  • Helps keep food fresher for longer by constantly maintaining the ideal temperature.
Variable Temperature Zones
  • Food is stored in two separate zones. You have the choice of three food modes: Fridge 32°F to 44°F, Pantry 52°F to 56°F, and Chill 29°F to 32°F.
Mix & Match
  • Integrated Column Refrigeration gives you the freedom to mix and match. Different sized Column Fridges and Freezers can be installed separately or paired.
  • Finish them with our stainless steel door panels or customize them to match your own kitchen cabinetry.
Clever Energy
  • The Energy Star certified ActiveSmart™ Foodcare Fridges & Freezers adapt to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Appealing Illumination
  • Bright LEDs light up the ceiling, shelves, bins, and trays in both refrigerator and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Design Quality
  • The premium design and quality finish include a steel interior lining as well as soft-close, full extension metal shelf runners for easy access and robust glass shelving.
Easy Install
  • Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing refrigerators and freezers.
  • All models come with front adjustable leveling feet and they've been designed to easily slide into place as separate units.
Perfect Fit
  • These models fit flush and have only 1/8" / 3mm gaps around them with no visible hinges or grilles.
  • The Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel.
California residents see Prop 65 WARNINGS

Current Rebates

AJ Exclusive: Save on Installation of Qualifying Fisher & Paykel Models

AJ Exclusive: Save on Installation of Qualifying Fisher & Paykel Models

When You Buy
Qualifying Models
You Get
up to $450
Expiration Date
09/16/2026
Savings Type
Instant In-Cart Savings
AJ Exclusive: Save on Installation of Qualifying Fisher & Paykel Models

F&P Columns Install Rebate
$200 off Series 9
$450 off Series 11

$200 off Bottom Mounts Install Rebate
RS2474BRU1
RS2474S3RH1
RS2474F3LJ1

Free Install on any Pro Range

Available Rebates - May be Combined

Note: It is the sole responsibility of the customer to download and mail in the rebate form by the respective closing date. AJ Madison cannot be held responsible for non-compliance of the afore-mentioned.

Fisher & Paykel - Create Kitchen Perfection | Save Up to 15% Download Form

Save Up to 15% + Free 5 Year Warranty

When You Buy
Buy Range or Built-in Refrigeration
You Get
Up to 15% + 5 year warranty
Expiration Date
12/31/2026
Savings Type
Mail-in Savings
Rebate
Submit-By: 12/31/26

Purchase any qualifying range or built-in refrigeration product to receive 10% Cashback.
Purchase four or more qualifying products* to receive 15% Cashback.
Purchase four or more qualifying products* and spend $25,000 to receive 15% Cashback + Free 5 Year Warranty.

*Limit of 1 product per category. Excludes closeouts.
Save time and Submit Your Claim Online

Available Rebates - May be Combined

Note: It is the sole responsibility of the customer to download and mail in the rebate form by the respective closing date. AJ Madison cannot be held responsible for non-compliance of the afore-mentioned.

AJ Exclusive: Save up to $450 Towards Installation on Qualifying Fisher & Paykel 4 piece Package

AJ Exclusive: Save up to $450 Towards Installation on Qualifying Fisher & Paykel 4 piece Package

AJ Exclusive

AJ Exclusive: Save up to $450 Towards Installation on Qualifying Fisher & Paykel 4 piece Package

Valid through 6/3/2026

Download Rebate Form

Valid 05/07/2026 - 06/03/2026

AJ Madison Exclusive Rebate

Please note:

This rebate will only be paid on AJ Madison purchases only.
Purchases in any other store do not qualify for this rebate.
All rebate forms will be rejected.

Reviews

Refrigerator Accessories

Manuals & Guides

Energy Guide
Quick Reference Guide
Installation Guide - Toe Kick
Install Guide - Water Filter Replacement
18in Freezer and 24in Fridge Columns Dual Install Planning File
24in Freezer and 24in Fridge Columns Dual Install Planning File
24in Freezer and 30in Fridge Columns Dual Install Planning File
Planning Guide
Key Purchase Decisions Integrated Column Refrigerator
Installation Guide
User Guide
Data Sheet Integrated Column Refrigerator
Product Information
Brand: Fisher & Paykel
Series: Series 9
Model: RS2484FLJK1
MPN: RS2484FLJK1
Appearance
Type: Built In
Style: Column
Size: Full Size
Counter Depth: Yes
Undercounter: No
Color: Panel Ready
Hinge Side: Left
Field Reversible Doors: No
Glass Door: No
Accepts Custom Panels: Yes
Lock: No
Column: Yes
Capacity
Total Capacity: 11.9 Cu. Ft.
Dimensions
Width: 23 3/4 Inch
Depth: 24 Inch
Height: 84 Inch
Height without hinges: 84 Inch
Shabbos Compliance
Sabbath Mode: Yes
Features
Defrost: Frost-Free
Ice Maker: Yes
Interior Light: Yes
Quick Freeze: No
Type of Shelves: Glass
Glass Shelves: Yes
Wire Shelves: No
Plastic Shelves: No
Stainless Steel Shelves: No
Number of Drawers: 4
Number of Shelves: 4
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Amps: 10
Voltage: 115 Volts
GTIN
UPC: 822843255900
EAN: 0822843255900
Are you a Trade Pro? Join Now

Description

24 Inch Panel Ready Freezer Column with 11.9 Cu. Ft. Capacity
This Fisher & Paykel Integrated Column Freezer is right hinge with a stainless steel interior and comes with an ice maker. It can be installed separately or together with different sized Integrated Column Refrigeration for true design freedom. The premium design and quality finish includes a steel interior lining as well as soft-close, full extension metal shelf runners for easy access and robust glass shelving. These models fit flush and have only 1/8" gaps around them with no visible hinges or grilles. Our Integrated Column models can be seamlessly hidden behind your cabinetry or you can purchase our stainless steel door panel. Integrated Column Refrigerators and Freezers have been developed to make their installation easy. The joiner kit is included when pairing fridge and freezers. All models come with front adjustable levelling feet and they've been designed to easily slide into place as separate units.

Specifications

Freezer Overview
Adjustable Door Shelves:
4
Adjustable Glass Cantilevered Shelves:
3
Automatic, Concealed Ice Maker:
Yes
Bottle Chill:
Yes
Door Alarm:
Yes
Fast Freeze:
Yes
Freezer Bins:
4
Ice Boost:
Yes
LED Bin Lighting:
Yes
LED Ceiling Lighting:
Yes
LED Side Lighting:
Yes
SmartTouch Interface (Counter Height):
Yes
Performance
ActiveSmart™ Foodcare:
Yes
Adaptive Frost:
Yes
Dual Evaporator:
Yes
Frost Free:
Yes
Inverter Controlled Compressor:
Yes
Sabbath Mode:
Yes
Variable Food Modes:
Soft Freeze; Freeze; Deep Freeze
Variable Temperature Zones:
2
Product Dimensions
Width:
23 3/4"
Depth:
24"
Height:
84"
Cutout Dimensions
Width:
24"
Depth:
25"
Height:
84"
Warranty
Parts & Labor:
2 Years
Sealed System Parts:
5 Years

Features

ActiveSmart™ Foodcare
  • Our Energy Star certified ActiveSmart™ Foodcare Fridge Freezers adapt to daily use by cooling and defrosting only when needed.
Variable Temperature Zones
  • Food is stored in two separate zones. You have the choice of three food modes: Freeze -7°F to 7°F, Soft Freeze 14°F to 18°F and Deep Freeze is fixed at -13°F.
LED Lighting
  • Bright LEDs light up the ceiling, shelves, bins and tray in both fridge and freezer, making it easy to find your food and creating a welcoming glow in your kitchen for those midnight snacks.
Other Features
  • Stainless Steel Interior
  • Joiner Kit Included
  • 15.6 cu. ft. Capacity
California residents see Prop 65 WARNINGS

Current Rebates

Fisher & Paykel - Create Kitchen Perfection | Save Up to 15% Download Form

Save Up to 15% + Free 5 Year Warranty

When You Buy
Buy Range or Built-in Refrigeration
You Get
Up to 15% + 5 year warranty
Expiration Date
12/31/2026
Savings Type
Mail-in Savings
Rebate
Submit-By: 12/31/26

Purchase any qualifying range or built-in refrigeration product to receive 10% Cashback.
Purchase four or more qualifying products* to receive 15% Cashback.
Purchase four or more qualifying products* and spend $25,000 to receive 15% Cashback + Free 5 Year Warranty.

*Limit of 1 product per category. Excludes closeouts.
Save time and Submit Your Claim Online

Available Rebates - May be Combined

Note: It is the sole responsibility of the customer to download and mail in the rebate form by the respective closing date. AJ Madison cannot be held responsible for non-compliance of the afore-mentioned.

AJ Exclusive: Free Installation of Qualifying Fisher & Paykel Models

AJ Exclusive: Free Installation of Qualifying Fisher & Paykel Models

AJ Madison Exclusive: Instant Savings on qualifying Fisher & Paykel models to be used towards installation costs.

Save up to $450 instantly


Qualifying models only
Valid through July 8, 2026

AJ Madison Exclusive Rebate

Download Rebate Form

Valid 06/17/2026 - 07/08/2026

AJ Madison Exclusive Rebate

Please note:

This rebate will only be paid on AJ Madison purchases only.
Purchases in any other store do not qualify for this rebate.
All rebate forms will be rejected.

Reviews

Freezer Accessories

Manuals & Guides

Energy Guide
Quick Reference Guide
18in Freezer and 24in Fridge Columns Dual Install Planning File
24in Freezer and 24in Fridge Columns Dual Install Planning File
24in Freezer and 30in Fridge Columns Dual Install Planning File
Data Sheet Integrated Column Freezer
Planning Guide
Key Purchase Decisions Integrated Column Freezer
User Guide
Installation Guide
Installation Guide - Toe Kick
Install Guide - Water Filter Replacement
In Stock
Items labeled In Stock will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items qualify for In Stock, the order will ship when all items are available to ship. In Stock may not apply to multiple quantities of the same product.
