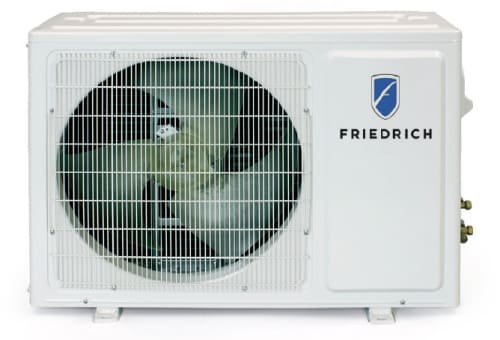

Friedrich Floating Air FPHSR12A3B - Floating Air Pro Series Outdoor Unit
Friedrich Floating Air FPHSR12A3B - Floating Air Pro Series Outdoor Unit

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich Floating Air FPHSR12A3B
Authorized
Dealer

Friedrich Floating Air
FPHSR12A3B
12,000 BTU Outdoor Unit Thru-The-Wall Air Conditioner with Heat Pump, 53 dBA, Auto Restart, R-454B Refrigerant, and 24-hour On/Off Timer

Top Quality Store on Google
quick specs
Width: 31 7/8 Inch
Depth: 11 Inch
Height: 23 Inch
Cooling Capacity (BTU): 12,000 BTU
Heating Capacity (BTU): 12,000 BTU
WiFi: Yes
Control Type: Digital
View more
$879.00
OR
Have questions? Chat with us!
Product Information
Brand: Friedrich
Series: Floating Air
Model: FPHSR12A3B
Dimensions
Width: 31 7/8 Inch
Depth: 11 Inch
Height: 23 Inch
Capacity
Cooling Capacity (BTU): 12,000 BTU
Heating Capacity (BTU): 12,000 BTU
Smart
WiFi: Yes
Features
Type: Wall
Maximum Cooling Amps: 4.3 Amps
Maximum Cooling Watts: 979 Watts
Maximum Heating Amps: 4.1 Amps
Maximum Heating Watts: 901 Watts
Heat: Heat Pump
Control Type: Digital
PTAC: No
Sleep Mode: Yes
Refrigerant Type: R-454B
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

112,000 BTU Outdoor Unit Thru-The-Wall Air Conditioner with Heat Pump
The Friedrich FPHSR12A3B 12,000 BTU Floating Air Pro Series condenser is a single zone outdoor unit. It can be used with the Friedrich FAHFW12A3A Wall Unit.
The outdoor unit comes pre-charged with refrigerant sufficient for 25 ft. of line. As the US moves away from R410A refrigerant, manufacturers are using alternative replacement refrigerants. R454B is the replacement refrigerant being used in Friedrich's line of Floating Air Pro Series mini split systems. R454B features a Global Warming Potential (GWP) of 467. The larger the GWP, the more that specific gas warms the Earth.

Specifications

Overview
Unit Type:
Wall Mount Outdoor Unit
Performance Data
Cooling Btu:
12,000
Heat Pump BTUs:
12000
Outdoor Unit Noise Level (dBA):
53
Sensible Heat Ratio:
73.0%
Moisture Removal Pts/h:
2.2
Airflow - (High/Med/Low/Quiet) CFM:
394/364/311/252
Dimension and Weight
Dimensions (H x W x D):
23” x 31 7/8” x 11”
Net Weight (lbs.):
70
Shipping Weight (lbs.):
85

Features

Auto Clean Indoor Coil
  • Prevents mold and dirt buildup for better air quality and efficiency.
Cooling/Heating/Fan/Auto Mode
  • Offers versatile modes to suit all-season comfort and personalized preferences.
Surge Cool/Heat
  • Delivers rapid temperature adjustment for quick relief.
Natural Air Flow
  • Mimics outdoor breezes for a more comfortable and natural cooling experience.
Ultra Quiet Operation
  • Ensures minimal noise for a peaceful environment.
Sleep Mode
  • Optimizes temperature and noise levels for a restful night's sleep.
Auto Restart
  • Automatically resumes operation with preset settings after a power outage.
24-Hour On/Off Timer
  • Allows customizable scheduling to save energy and enhance convenience.
Other Features
  • Heat Pump
  • 53 dBA
  • Auto Restart
  • R-454B Refrigerant
  • 24-hour On/Off Timer
Key Features
QuietMaster®
QuietMaster® Technology is designed for exceptional quiet performance, utilizing premium components to operate up to 45% quieter than competing products.
