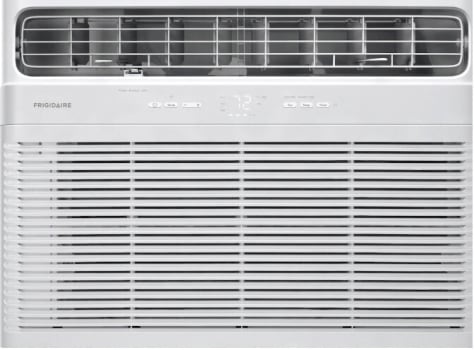

Frigidaire FHWH234WB2 - 23,200 BTU Window Room Conditioner
Frigidaire FHWH234WB2 - 23,200 BTU Window Room Conditioner
Frigidaire FHWH234WB2 - 23,200 BTU Window Room Conditioner
Frigidaire FHWH234WB2 - Window Room Air Conditioner
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FHWH234WB2
Authorized
Dealer

Frigidaire
FHWH234WB2
23,200 BTU Window Room Conditioner with 16,000 BTU Electrical Heat, Easy Installation, Sleep Mode, Remote Control, Washable Dust Filter, Eco Mode, 24 Hour On/Off Timer, PureAir® RAC-12 Advanced Filter and Automatic Restart

Top Quality Store on Google
quick specs
Width: 23 3/4 Inch
Depth: 25 1/2 Inch
Height: 18 Inch
Cooling Capacity (BTU): 23,200 BTU
Heating Capacity (BTU): 16,000 BTU
CFM Room Circulation: 810 CFM
WiFi: No
Remote Monitoring: No
Chassis Type: Slide Out
Control Type: Digital
Remote Control Included: Yes
Plug Type: 6-30P
View more
$899.00
OR

Available

Available Items currently on their way to our warehouse or stocked at a vendor's or manufacturer's facility are marked as "Available." Once we've received your items, we aim to ship these products within 24-48 business hours. If there's any change to this schedule, we'll promptly send you an email detailing your order's Estimated Arrival, including specific shipping dates. Rest assured, we're committed to informing you every step of the way, ensuring you know exactly when to expect your purchase.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Frigidaire
Model: FHWH234WB2
Dimensions
Width: 23 3/4 Inch
Depth: 25 1/2 Inch
Height: 18 Inch
Capacity
Cooling Capacity (BTU): 23,200 BTU
Heating Capacity (BTU): 16,000 BTU
CFM Room Circulation: 810 CFM
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Window
Chassis Type: Slide Out
Maximum Cooling Amps: 14.8 Amps
Maximum Cooling Watts: 2,380 Watts
Maximum Heating Amps: 22 Amps
Maximum Heating Watts: 4,800 Watts
Heat: Electric Heat
Energy Efficiency Rating: 9.4
Control Type: Digital
Remote Control Included: Yes
Sleep Mode: Yes
Indoor CFM, High: 810 CFM
Indoor CFM, Low: 686 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
CSA Sustainability Compliant: Yes
Plug Type: 6-30P
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

23,200 BTU Window Room Air Conditioner
The Frigidaire 5,000 BTU Window-Mounted Room Air Conditioner is more than your standard air conditioner. The even weight distribution and slide-out chassis help make this unit easy to install. Control the temperature and fan speed from across the room with remote control. Capture dust from the air and keep your air conditioner working efficiently with easy-to-clean washable dust filter.

Specifications

Overview
Air CFM (Low):
686 CFM
Air CFM (Med):
746 CFM
Air CFM (High):
810 CFM
Air Direction Control:
Manual
Air Discharge:
Front of Unit
Fan Speeds - Cool:
3
Fan Speeds - Fan:
3
Fan Speeds - Heat:
3
Fresh Air:
Yes
Motor RPM (Low):
1000 RPM
Motor RPM (Med):
1070 RPM
Motor RPM (High):
1150 RPM
Noise Level dBA (Low):
56 dBA
Noise Level dBA (Med):
58 dBA
Noise Level dBA (High):
59.5 dBA
Cabinet Louvers:
Yes
Dust Air Filter:
Yes
Exhaust Vent:
Yes
Filter Access Location:
Front
Filter Check Indicator:
Yes
Option for Advanced Filtration:
Yes
Rear Grill:
Yes
Supplemental Heat:
Yes
Window Kit:
Yes
Controls
Child Lock:
Yes
Control Type:
Electronic
Remote Control:
Yes
CSA Listed:
Yes
ENERGY STAR Certified:
No
Dimensions and Volume
Height:
18"
Width:
23 3/4"
Depth:
25 1/2"
Window Width Minimum:
26 1/2"
Window Width Maximum:
40 1/2"
Window Height Minimum:
18 1/2"
Electrical Specifications
Amps (Cool):
14.8 Amps
Amps (Electrical Heat):
22 Amps
Plug Type:
LCDI 6-30P
Voltage Rating:
208/230v
Watts (Cool):
2380 Watts
Watts (Electrical Heat):
4800 Watts
Installation
Power Cord Length:
60"
Slide Out Chassis:
Yes
Functions
24-Hour On/Off Timer:
Yes
Air Quality Sensor:
No
Auto Fan:
Yes
Auto Restart:
Yes
Clean Air Ionizer:
No
Dry Mode:
Yes
Energy Saver:
Yes
Low Voltage Start-up:
Yes
Sleep Mode:
Yes
Product Weight:
121.03 lbs
Prop 65 Label:
Yes
Refrigerant Type:
R-32
Warranty - Labor:
1 Year
Warranty - Parts:
1 Year
Wi-Fi Enabled:
No
Cool Area:
1600 sq.
BTU (Cool):
23200 BTU
BTU (Electrical Heat):
16000 BTU
Combined Energy Efficiency Ratio:
9.4
Dehumidification - Pints per Hour:
6
Operating Temperature Low:
60
Operating Temperature High:
90 F

Features

Supplemental Heat
  • Use this unit year-round with a supplemental heating function, making this more than your standard air conditioner
Eco Mode
  • This unit turns on and off at different intervals to ensure that the room stays at your desired temperature while helping keep energy costs low.
Easy Installation
  • Easily install this air conditioner; this unit distributes the weight into two pieces using a slide-out chassis.
Programmable 24-Hour On/Off Timer
  • Customize times to fit your schedule for immediate comfort when you get home by presetting the unit to turn on and off in half hour increments.
Sleep Mode
  • The temperature gradually increases a few degrees over the course of the night to make the room more comfortable for sleeping and to save energy.
PureAir® RAC-12 Advanced Filter
  • Get more out of your room air conditioner when you purchase the PureAir® RAC-12 Advanced Filter.1
Remote Control
  • Easily manage your room's temperature and fan speed from across the room with the included remote control.
Automatic Restart
  • Automatically resumes operating at its previous settings when power is restored to your unit
Easy-to-Clean Washable Dust Filter
  • Capture dust from the air and keep your air conditioner working efficiently with our easy-to-clean washable dust filter.
