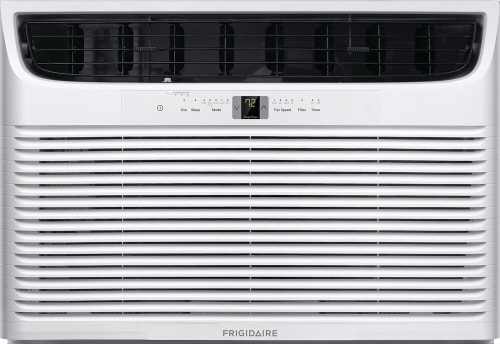

Frigidaire FHWE232WB2 - 23,000 BTU Window Room Air Conditioner with 16,000 BTU Heating Capacity
Frigidaire FHWE232WB2 - 23,000 BTU Window Room Air Conditioner with 16,000 BTU Heating Capacity
Frigidaire FHWE232WB2 - 23,000 BTU Window Room Air Conditioner Left Angle
Frigidaire FHWE232WB2 - 23,000 BTU Window Room Air Conditioner Right Angle
+10

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FHWE232WB2
Authorized
Dealer

Frigidaire
FHWE232WB2
23,000 BTU Window Room Air Conditioner with 16,000 BTU Heating Capacity, Remote Control, Sleep Mode, Timer, Dry Mode, and 1,400 sq. ft. Cooling Area

Top Quality Store on Google
quick specs
Width: 23 3/4 Inch
Depth: 25 1/2 Inch
Height: 18 Inch
Cooling Capacity (BTU): 23,000 BTU
Heating Capacity (BTU): 16,000 BTU
WiFi: No
Chassis Type: Slide Out
Wall Sleeve Included: No
Control Type: Digital
Remote Control Included: Yes
Plug Type: 6-30P
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Frigidaire
Model: FHWE232WB2
Dimensions
Width: 23 3/4 Inch
Depth: 25 1/2 Inch
Height: 18 Inch
Capacity
Cooling Capacity (BTU): 23,000 BTU
Heating Capacity (BTU): 16,000 BTU
Smart
WiFi: No
Features
Type: Window
Chassis Type: Slide Out
Wall Sleeve Included: No
Maximum Cooling Amps: 10.8 Amps
Maximum Cooling Watts: 2,470 Watts
Maximum Heating Amps: 22 Amps
Maximum Heating Watts: 4,800 Watts
Heat: Electric Heat
Control Type: Digital
Remote Control Included: Yes
PTAC: No
Window Type: Standard
Sleep Mode: Yes
Indoor CFM, High: 480 CFM
Indoor CFM, Low: 400 CFM
Technical Details
Energy Star Rated: No
ADA Compliant: No
CSA Sustainability Compliant: No
Plug Type: 6-30P
Voltage: 230/208 Volts
GTIN
UPC: 012505285042
Are you a Trade Pro? Join Now

Description

23,000 BTU Window Room Air Conditioner with 16,000 BTU Heating Capacity
The Frigidaire 23,000 BTU Window Room Air Conditioner keeps your room cool and comfortable with optimum circulation thanks to multi-directional airflow and three fan speeds. Easily install this air conditioner; this unit distributes the weight into two pieces using a slide-out chassis. Control the temperature and fan speed from across the room with remote control. Capture dust from the air and keep your air conditioner working efficiently with Frigidaire's easy-to-clean washable filter.

Specifications

General Specifications
Air CFM (Low):
400 CFM
Air CFM (Med):
440 CFM
Air CFM (High):
480 CFM
Air Direction Control:
Manual
Air Discharge:
Front of Unit
Fan Speeds - Cool:
3
Fan Speeds - Fan:
3
Fan Speeds - Heat:
3
Fresh Air:
Yes
Motor RPM (Low):
1,000 RPM
Motor RPM (Med):
1,070 RPM
Motor RPM (High):
1,150 RPM
Noise Level dBA (Low):
56 dBA
Noise Level dBA (Med):
58 dBA
Noise Level dBA (High):
60 dBA
Cabinet Louvers:
Yes
Dust Air Filter:
Yes
Exhaust Vent:
Yes
Filter Access Location:
Front
Filter Check Indicator:
Yes
Rear Grill:
No
Supplemental Heat:
Yes
Window Kit:
Yes
Refrigerant Type:
R-32
Power Cord Length:
60"
Performance
Cool Area:
1,400 sq.
BTU (Cool):
23,000 BTU
BTU (Electrical Heat):
16,000 BTU
Combined Energy Efficiency Ratio:
9.4
Dehumidification - Pints per Hour:
6
Operating Temperature Low:
62 F
Operating Temperature High:
86 F
Functions
24-Hour On/Off Timer:
Yes
Air Quality Sensor:
No
Auto Fan:
Yes
Auto Restart:
Yes
Clean Air Ionizer:
No
Dry Mode:
Yes
Energy Saver:
Yes
Low Voltage Start-up:
Yes
Sleep Mode:
Yes
Controls
Child Lock:
Yes
Control Type:
Electronic
Remote Control:
Yes
Dimensions
Height:
18"
Width:
23 3/4"
Depth:
25 1/2"
Window Width Minimum:
26 1/2"
Window Width Maximum:
40 1/2"
Window Height Minimum:
18 1/2"
Max Wall Thickness:
8"
Electrical Specifications
Amps (Cool):
10.8 Amps
Amps (Electrical Heat):
22 Amps
Voltage Rating:
208/230v
Watts (Cool):
2,470 Watts
Watts (Electrical Heat):
4,800 Watts
Certifications and Approvals
CSA Listed:
Yes
Energy Efficiency Verification (Canada):
Yes
ENERGY STAR Certified:
No
Warranty
Warranty - Labor:
1 Year
Warranty - Parts:
1 Year

Features

16,000 BTU Heating Capacity
  • Use this unit year-round with a supplemental heating function, making this more than your standard air conditioner.
Remote Control
  • Effortlessly control the temperature and fan speed from across the room.
Sleep Mode
  • Enjoy maximum comfort and quiet operation throughout the evening hours. With Sleep Mode, the temperature gradually increases a few degrees over the course of the night, and returns pre-set temperature in the morning.
Programmable Timer
  • Preset the unit to turn on and off in half hour increments so that you can maintain optimal comfort while at home.
Eco Mode
  • Keep your room cool and comfortable; this unit turns on and off at different intervals to ensure that the room stays at your desired temperature while helping keep energy costs low.
Automatic Restart
  • Automatically resumes operating at its previous settings when power is restored to your unit.
Easy-to-Clean Washable Dust Filter
  • Capture dust from the air and keep your air conditioner working efficiently with easy-to-clean washable filter. And forget having to keep track of filter changes; the Clean Filter Alert will notify you when it's time to clean your filter.
Fresh Air Vent
  • Unlike many air conditioners, draw in fresh outdoor air, preventing recirculation of stale air.
Multi-Direction Airflow
  • Enables optimum circulation and cooling with 6-way directional airflow and three different fan speeds.
Easy Installation
  • Easily install this air conditioner; this unit distributes the weight into two pieces using a slide-out chassis.
Cool Area
  • 1,400 sq. ft. Cooling Area
Other Features
  • Dry Mode
  • Child Lock
  • 3-Fan Speed
