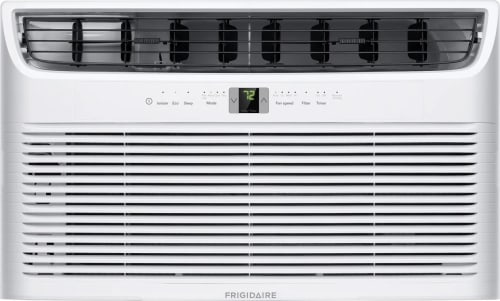

Frigidaire FHTC123WB1 - 12,000 BTU Through the Wall Air Conditioner
Frigidaire FHTC123WB1 - 12,000 BTU Through the Wall Air Conditioner
Frigidaire FHTC123WB1 - 12,000 BTU Through the Wall Air Conditioner
Frigidaire FHTC123WB1 - 12,000 BTU Through the Wall Air Conditioner
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FHTC123WB1
Authorized
Dealer

Frigidaire
FHTC123WB1
12,000 BTU Through the Wall Air Conditioner with 24 Hour Timer, Auto Fan, Auto Restart, Dry Mode, Energy Saver, Sleep Mode, 9.5 EER, Remote Control and R-32 Refrigerant Included

Top Quality Store on Google
quick specs
Width: 24 Inch
Depth: 21 1/2 Inch
Height: 14 1/2 Inch
Cooling Capacity (BTU): 12,000 BTU
CFM Room Circulation: 283 CFM
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Chassis Type: Thru the Wall
Wall Sleeve Included: No
Control Type: Digital
Remote Control Included: Yes
Plug Type: 5-15P
View more
BTU Capacity: 12,000 BTU
8,000 BTU
8,000 BTU
FHTC083WB1
$719.00
10,000 BTU
10,000 BTU
FHTC103WB1
$799.00
In stock
12,000 BTU
12,000 BTU
FHTC123WB1
$869.00
$869.00
MSRP: $1,019.00
You save $150.00
OR

Available

Available Items currently on their way to our warehouse or stocked at a vendor's or manufacturer's facility are marked as "Available." Once we've received your items, we aim to ship these products within 24-48 business hours. If there's any change to this schedule, we'll promptly send you an email detailing your order's Estimated Arrival, including specific shipping dates. Rest assured, we're committed to informing you every step of the way, ensuring you know exactly when to expect your purchase.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Frigidaire
Model: FHTC123WB1
Dimensions
Width: 24 Inch
Depth: 21 1/2 Inch
Height: 14 1/2 Inch
Capacity
Cooling Capacity (BTU): 12,000 BTU
CFM Room Circulation: 283 CFM
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
Features
Type: Wall
Chassis Type: Thru the Wall
Wall Sleeve Included: No
Maximum Cooling Amps: 11 Amps
Maximum Cooling Watts: 1,220 Watts
Heat: No
Energy Efficiency Rating: 9.5
Control Type: Digital
Remote Control Included: Yes
PTAC: No
Sleep Mode: Yes
Indoor CFM, High: 283 CFM
Indoor CFM, Low: 233 CFM
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
CSA Sustainability Compliant: Yes
Plug Type: 5-15P
Voltage: 115 Volts
GTIN
UPC: 012505285660
EAN: 0012505285660
Are you a Trade Pro? Join Now

Description

12,000 BTU Through the Wall Air Conditioner
The Frigidaire 12,000 BTU Through-the-Wall Air Conditioner is designed to efficiently cool rooms up to 550 square feet. This unit is ideal for maintaining comfortable temperatures in medium-sized rooms, offering both cooling and supplemental heating options. Its programmable features and energy-saving modes provide customizable comfort while optimizing energy efficiency.

Specifications

Overview
Air CFM (Low):
233 CFM
Air CFM (Med):
259 CFM
Air CFM (High):
283 CFM
Air Direction Control:
Manual
Air Discharge:
Front of Unit
Fan Speeds - Cool:
3
Fan Speeds - Fan:
3
Motor RPM (Low):
1230 RPM
Motor RPM (Med):
1360 RPM
Motor RPM (High):
1480 RPM
Noise Level dBA (Low):
55.3 dBA
Noise Level dBA (Med):
56.8 dBA
Noise Level dBA (High):
59 dBA
Dust Air Filter:
Yes
Filter Access Location:
Front
Filter Check Indicator:
Yes
Option for Advanced Filtration:
Yes
Rear Grill:
Yes
Supplemental Heat:
No
24-Hour On/Off Timer:
Yes
Auto Fan:
Yes
Auto Restart:
Yes
Clean Air Ionizer:
Yes
Dry Mode:
Yes
Energy Saver:
Yes
Low Voltage Start-up:
Yes
Sleep Mode:
Yes
Dimensions and Volume
Height:
14 1/2"
Width:
24"
Depth:
21 1/2"
Sleeve Height:
15 3/4"
Sleeve Width:
26"
Max Wall Thickness:
18"
Installation
Power Cord Length:
72"
Performance
Cool Area:
550 sq.
BTU (Cool):
12000 BTU
Combined Energy Efficiency Ratio:
9.5
Dehumidification - Pints per Hour:
3.3
Prop 65 Label:
Yes
Refrigerant Type:
R-32
Warranty - Labor:
1 Year
Warranty - Parts:
1 Year
Controls
Control Type:
Electronic
Remote Control:
Yes
Electrical Specifications
Amps (Cool):
11 Amps
Voltage Rating:
115 V
Voltage Rating:
115/120v
Watts (Cool):
1220 Watts
Connectivity
Wi-Fi Enabled:
No
Safety Certifications and Approvals
CSA Listed:
Yes
cUL Listed:
Yes
UL Listed:
Yes
Included Accessories
Trim Kit:
Yes

Features

Multi-Speed Fan
  • Customize your cooling experience with three different fan speeds, allowing for more flexibility.
Programmable 24-Hour On/Off Timer
  • Set the air conditioner to turn on or off at specific times, helping to save energy and ensure your home is comfortable when you need it.
Quick Cool & Quick Warm
  • Rapidly cool or heat a room with the quick cool and quick warm settings.
Sleep Mode
  • This feature gradually adjusts the temperature and fan speed to provide a comfortable sleeping environment while saving energy.
Energy Saver Mode
  • Reduces energy consumption by turning off the fan and compressor when the desired room temperature is reached.
Remote Control
  • Conveniently adjust settings from anywhere in the room with the included remote control.
Washable Filter
  • The easy-to-clean washable filter captures dust from the air, keeping your air conditioner working efficiently.
