Frigidaire Gallery Series FGMC2765PF - Stainless Steel
Frigidaire Gallery Series FGMC2765PF - Stainless Steel
Frigidaire Gallery Series FGMC2765PF - Interior View
Frigidaire Gallery Series FGMC2765PF - Oven Express-Select Controls
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire Gallery Series FGMC2765PF
Authorized
Dealer

Frigidaire Gallery Series
FGMC2765PF
27 Inch Combination Wall Oven with 3.8 cu. ft. True Convection Oven, 2.0 cu. ft. Microwave, Steam Clean, Quick Preheat, Add-a-Minute, Keep Warm Setting, Temperature Probe and Star-K Certified: Stainless Steel

Top Quality Store on Google
quick specs
Microwave: Yes
Speed Oven: No
Steam Oven: No
Drawer: None
Cutout Width: 24 7/8 Inch
Cutout Depth: 23 1/2 Inch
Cutout Height: 41 1/8 Inch
Capacity: 3.8 Cu. Ft.
Proof Mode: No
Self-Cleaning: Yes
Temperature Probe: Yes
Undercounter Installable: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

You Might Also Like

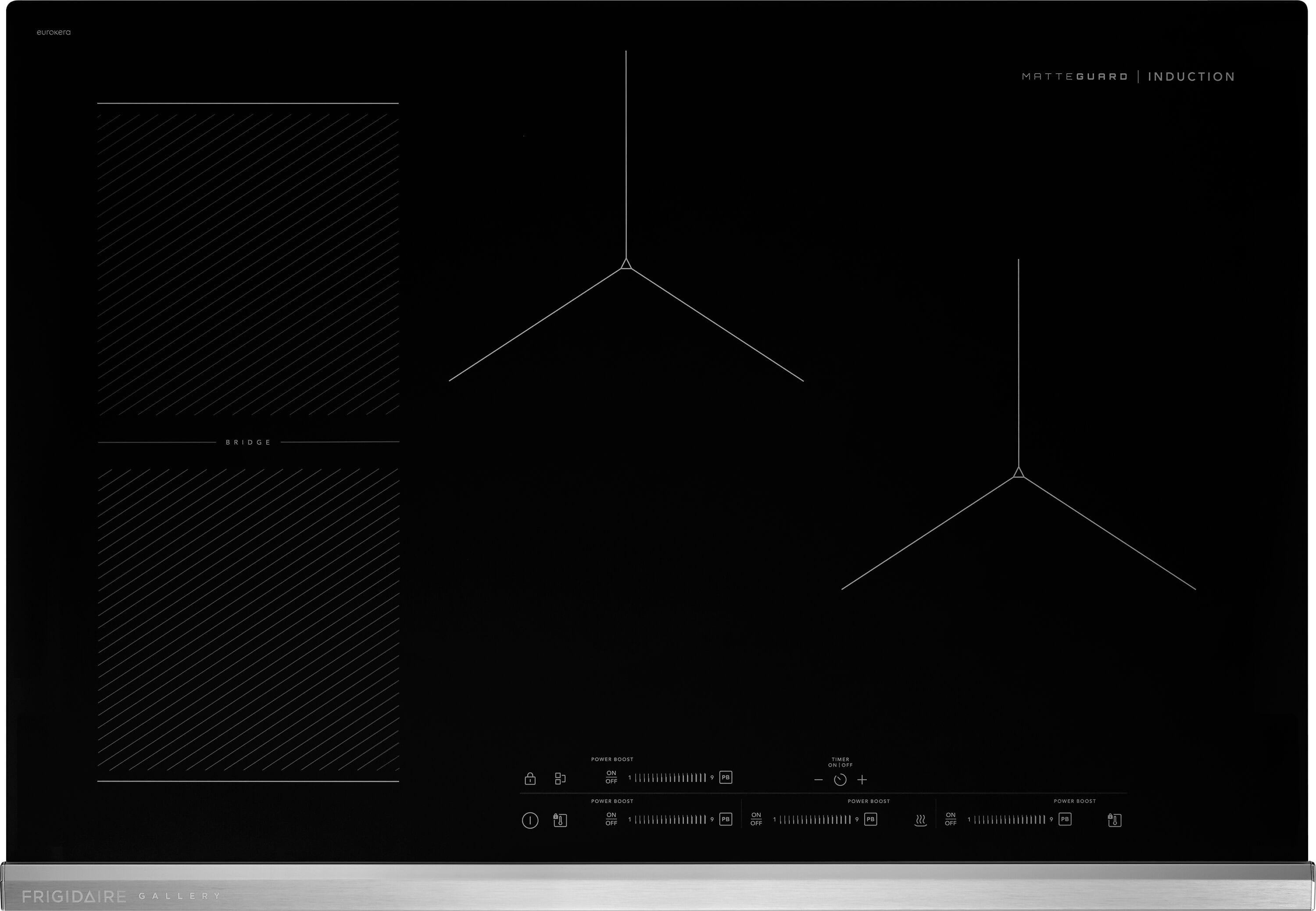

Induction Cooktop
Frigidaire
Induction Cooktop
Product Information
Brand: Frigidaire
Series: Gallery Series
Model: FGMC2765PF
Warranty Terms: 1 year
?
Appearance
Fuel Type: Electric
Style: Double
Microwave: Yes
Speed Oven: No
Steam Oven: No
Color: Stainless Steel
Stainless Steel Handle: Yes
Control Type: Digital
Viewing Window: Yes
Drawer: None
Clock: Digital
Dimensions
Cutout Width: 24 7/8 Inch
Cutout Depth: 23 1/2 Inch
Cutout Height: 41 1/8 Inch
Exterior Width: 27 Inch
Exterior Depth: 24 1/2 Inch
Exterior Height: 42 3/4 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K
Capacity
Capacity: 3.8 Cu. Ft.
Oven Racks: 3
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Convection: Yes
Proof Mode: No
Self-Cleaning: Yes
Temperature Probe: Yes
Broiler Element Location: Top
Broiler Pan Included: No
Interior Oven Light: Yes
Removable Door: Yes
Microwave Features
Capacity: 2 Cu. Ft.
Cooking Watts: 1,200
With Turntable: Yes
Convection Oven: No
Technical Details
ADA Compliant: No
Undercounter Installable: No
Approved for Outdoor Use: No
Wattage: 3,400 Watts
Amps: 30
Voltage: 240/208 Volts
GTIN
UPC: 012505801280
Are you a Trade Pro? Join Now

Description

27 Inch Combination Wall Oven with 3.8 cu. ft. True Convection Oven
Frigidaire's electric wall oven/ microwave combination is the perfect addition to your kitchen. This multi-functional unit offers a combined 3.8 cu. ft. of capacity, allowing you to make multiple dishes at once. Enjoy the Effortless Convection which takes the guesswork out of convection cooking - our oven automatically adjusts standard baking temperatures to convection temperatures for consistent results. The One-Touch options allow you to easily cook pizza or chicken nuggets with the touch of a button.

Specifications

Baking System:
Even Baking Technology
Features
Broiling System:
Vari-Broil
Control / Timing System:
Express-Select
Quick Preheat:
Yes
Exterior Door Finish:
Smudge-Proof Stainless Steel
Bake Element:
1,450 Watts
Handle Design:
Stainless Steel
Broil Element:
3,400 Watts
Microwave Features
Heavy Duty Racks:
2
Microwave Capacity:
2.0 Cu. Ft.
Offset Racks:
1
Watts (IEC-705 Test Procedure):
1,200 Watts
Oven Cleaning System:
Self Clean / Steam Clean
Window:
Large
Oven Controls
Interior Light:
Yes
Convection Conversion:
Effortless
Interior Color:
White
My Favorite:
No
Turntable Diameter:
16"
Slow Cook:
No
Turntable On / Off:
No
Effortless Temperature Probe:
Yes
Control Lock:
Yes
Chicken Nugget Button:
No
Clock:
Yes
Pizza Button:
No
Touch Pad Buttons:
28
Keep Warm:
Yes
Power Levels:
10
Add-a-Minute:
No
Microwave Control Options
Certifications
Popcorn Button:
Yes
Sabbath Mode:
Yes
Chicken Nugget Button:
Yes
Star-K Certified:
Yes
Baked Potato Button:
Yes
Specifications
Reheat Button:
Yes
Power Supply Connection Location:
Left Bottom Rear
Snack Button:
Yes
Voltage Rating:
240V / 208V / 60Hz
Auto Melt / Soften Options:
4
Connected Load (kW Rating) @ 240/208 Volts:
6.9/5.2 kW
Auto Reheat Options:
3
Amps @ 240/208 Volts:
28.8/25.0 Amps
Snack Menu Options:
3
Minimum Circuit Required:
30 Amps
Auto Cook Options:
3
Dimensions and Weights
Auto Defrost Options:
6
Overall Width:
27"
Keep Warm:
Yes
Overall Depth:
24 1/2"
Add-30-Seconds:
Yes
Overall Depth with Door Open 90°:
45 1/2"
Sensor Cooking Options:
5
Overall Height:
42 3/4"
Vegetable Cook Sensor:
Yes
Oven Interior Width:
20 1/2"
Delay Start:
Yes
Oven Interior Depth:
18 3/4"
User Preferences:
Yes
Oven Interior Height:
17"
Oven Features
Microwave Interior Width:
17 3/8"
Oven Capacity:
3.8 Cu. Ft.
Microwave Interior Depth:
18 5/8"
Oven Window:
Extra-Large
Microwave Interior Height:
10 1/2"
Oven Lights:
2 Halogen
Cutout Width:
24 7/8" - 25 1/4"
Hidden Bake Element:
Yes
Cutout Depth:
23 1/2" Min.
Convection System:
True Convection
Cutout Height:
41 1/8" - 41 1/4"
Baking System:
Even Baking Technology
Shipping Weight (Approx.):
215.0 Lbs.
Broiling System:
Vari-Broil
Quick Preheat:
Yes
Bake Element:
1,450 Watts
Broil Element:
3,400 Watts
Heavy Duty Racks:
2
Offset Racks:
1
Oven Cleaning System:
Self Clean / Steam Clean
Oven Controls
Convection Conversion:
Effortless
My Favorite:
No
Slow Cook:
No
Effortless Temperature Probe:
Yes
Chicken Nugget Button:
No
Pizza Button:
No
Keep Warm:
Yes
Add-a-Minute:
No
Certifications
Sabbath Mode:
Yes
Star-K Certified:
Yes
Specifications
Power Supply Connection Location:
Left Bottom Rear
Voltage Rating:
240V / 208V / 60Hz
Connected Load (kW Rating) @ 240/208 Volts:
6.9/5.2 kW
Amps @ 240/208 Volts:
28.8/25.0 Amps
Minimum Circuit Required:
30 Amps
Dimensions and Weights
Overall Width:
27"
Overall Depth:
24 1/2"
Overall Depth with Door Open 90°:
45 1/2"
Overall Height:
42 3/4"
Oven Interior Width:
20 1/2"
Oven Interior Depth:
18 3/4"
Oven Interior Height:
17"
Microwave Interior Width:
17 3/8"
Microwave Interior Depth:
18 5/8"
Microwave Interior Height:
10 1/2"
Cutout Width:
24 7/8" - 25 1/4"
Cutout Depth:
23 1/2" Min.
Cutout Height:
41 1/8" - 41 1/4"
Shipping Weight (Approx.):
215.0 Lbs.

Features

Effortless Convection
  • Takes the guesswork out of convection cooking.
  • Their oven automatically adjusts standard baking temperatures to convection temperatures for consistent results.
True Convection
  • Single convection fan circulates hot air throughout the oven for faster and more even multi-rack baking.
Quick Preheat
  • Preheat in just a few minutes.
Fits-More Microwave Oven
  • Extra-large microwave provides 2.0 cu. ft. of cooking space.
One-Touch Keep Warm Setting
  • Just one touch of a button keeps food warm until everything - and everyone - is ready.
Express-Select Controls
  • Easily set cooking temperature or choose one-touch cooking options.
Even Baking Technology
  • Their Even Baking Technology ensures even baking every time.
Effortless Reheat
  • Reheat almost anything at the touch of a button.
Quick Clean
  • For a quick, light oven cleaning.
Delay Start
  • Set your oven to begin cooking on your schedule.
  • It can be programmed from one to 24 hours.
Auto Oven Shut-Off
  • As an extra safety measure, the oven will automatically shut off after six hours.
Built with American Pride
  • Appliances that are high-performing, more accessible, and more innovative than ever.
  • Designed, built, and engineered in the U.S.A.
Certifications
  • Sabbath Mode (Star-K Certified)
