Description

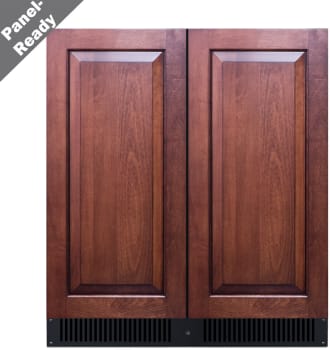

30 Inch Undercounter Side by Side Refrigerator with 5.1 Cu. Ft. Total Capacity
Summit manufactures unique refrigeration solutions to combine full functionality and custom style under the counter.
Sized at 30" wide, the FFRF3070BPNR is an all-in-one side-by-side refrigerator-freezer. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use. French doors allow you to separately store refrigerated and frozen foods. This unit comes in a jet black finish and includes two sets of brackets that allow easy installation of custom panels over the doors (recommended panel size: 30" H x 14 5/8" W at 3/4" thickness). The European style fully articulating hinging ensures seamless integration into your space. This unit includes a lock in the kickplate to secure both sections. A sealed back and right angle plug offer added space savings.
Inside, the FFRF3070BPNR features a frost-free freezer compartment on the left and a frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance.
With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3070BPNR is a great choice for smaller kitchens looking to maximize storage space under the counter. Additional choices are available in white, black, and stainless steel. Browse the full Summit selection to discover the perfect fit for your space.
Specifications
Overview
Nominal Height:
34.0" (86 cm)
Height of Cabinet:
34.0" (86 cm)
Nominal Width:
30.0" (76 cm)
Nominal Depth:
25.0" (64 cm)
Depth with Panel:
23.5" (60 cm)
Depth with door at 90°:
38.25" (97 cm)
Capacity:
5.1 cu.ft. (144 L)
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Energy Usage/Year:
440.0kWh/year
Voltage/Frequency:
115 V AC/60 Hz
Weight:
125.0 lbs. (57 kg)
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Refrigerator-Freezer
Refrigerator - Interior Height:
25.0" (64 cm)
Refrigerator - Interior Width:
12.25" (31 cm)
Refrigerator - Interior Depth:
17.25" (44 cm)
Refrigerator - Capacity:
2.8 cu.ft
Refrigerator - Shelf Type:
Glass
Refrigerator - Shelf Qty:
3
Refrigerator - Full Door Shelves:
2
Refrigerator - Temperature Range:
36°F to 43°F
Freezer - Interior Height:
25.75" (65 cm)
Freezer - Interior Width:
10.5" (27 cm)
Freezer - Interior Depth:
15.75" (40 cm)
Freezer - Capacity:
2.3 cu.ft
Freezer - Shelf Type:
Wire
Fan Type:
Interior and Exterior
Refrigerant Amount:
1.41 oz.
Freezer - Temperature Range:
-4º to 4ºF
Compressor Step Height:
4.0" (10 cm)
Compressor Step Width:
10.5" (27 cm)
Compressor Step Depth:
4.5" (11 cm)
Features
Adjustable Shelves
- Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation
All-in-one design
- Separate refrigerator and freezer sections with single compressor operation
Panel-ready doors
- Customize the doors with our innovative bracket system that lets you add an overlay panel without drilling through the door (recommended panel size: 30" H x 14 5/8" W at 3/4" thickness)
Door Shelves
- Two removable door racks provide additional storage as needed
Slotted Floors
- Floor is specially designed with slots to allow you to store bottles safely on their sides
Digital Thermostat
- Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit
Open Door Alarm
- Alarm will sound if either door is left open for over 60 seconds
High-Temperature Alarm
- Audible alarm sounds if the interior temperature rises above the recommended range
Temperature Memory Function
- In the event of power loss, the unit will retain its last temperature settings upon power recovery
Sabbath Mode
- Setting allows you to disable the digital displays, lights, and alarms for religious observance
Additional Features
- 5.1 Cu. Ft. Total Capacity
