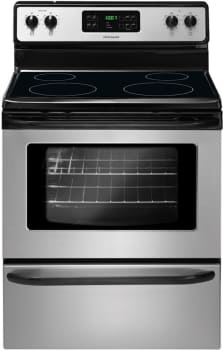

Frigidaire FFEF3017LS - Featured View

Frigidaire FFEF3017LS - Featured View

Frigidaire FFEF3017LS - Angled View to the Right

Frigidaire FFEF3017LS - View of Cooktop

+3

Image Disclaimer

Frigidaire FFEF3017LS

Authorized

Dealer

Frigidaire

FFEF3017LS

30 Inch Freestanding Electric Range with 4 Radiant Elements, 5.3 cu. ft. Oven Capacity, Self Clean, Even Bake Technology and Store-More Storage Drawer: Stainless Steel

5

Average rating of
3 reviews

Top Quality Store on Google

quick specs

Sabbath Mode: No

Cooktop: Smoothtop

Drawer: Storage

Width: 29 7/8 Inch

Depth: 28 1/2 Inch

Height: 47 Inch

Number of Burners: 4

Primary Oven Capacity: 5.3 Cu. Ft.

Hot Surface Indicator Light: No

Induction: No

Convection: No

Self-Cleaning: Yes

Temperature Probe: No

Warranty Terms: 1 year

NO LONGER AVAILABLE
Try This Instead

Have questions? Chat with us!

Product Information

Brand: Frigidaire

Model: FFEF3017LS

Warranty Terms: 1 year

Appearance

Fuel Type: Electric

Style: Freestanding

Color: Stainless Steel

Stainless Steel Handle: No

Cooktop: Smoothtop

Cooktop Control Type: Knobs

Oven Control Type: Touchpad

Viewing Window: Yes

Drawer: Storage

Clock: Yes

Dimensions

Width: 29 7/8 Inch

Depth: 28 1/2 Inch

Height: 47 Inch

Interior Width: 24 3/8 Inch

Interior Depth: 19 1/8 Inch

Interior Height: 21 Inch

Shabbos Compliance

Sabbath Mode: No

Capacity

Number of Burners: 4

Primary Oven Capacity: 5.3 Cu. Ft.

Burner

Burner 1 Output: 2500

Burner 2 Output: 1200

Gas Cooktop Features

Grill: No

Griddle: No

Electric Cooktop Features

Hot Surface Indicator Light: No

Induction: No

Oven Features

Digital Temperature Display: Yes

Timer: Yes

Delay Bake: Yes

Convection: No

Proof Mode: No

Self-Cleaning: Yes

Racks: 2

Temperature Probe: No

Broiler Element Location: Top

Broiler Pan Included: No

Interior Oven Light: Yes

Removable Door: Yes

Technical Details

ADA Compliant: No

Oven Wattage: 3,000

Amps: 40

Voltage: 240/208 Volts

GTIN

UPC: 012505503283

Are you a Trade Pro? Join Now

Description
Specifications
Features
Reviews

Description

When you select a home appliance from Frigidaire, you've chosen a product of exceptional performance, convenience and style; an appliance that has been designed to work in harmony with the way you live. Frigidaire is one of the leading suppliers of quality home appliances, offering superior products and service to rival many other companies.

Through meaningful innovations, Frigidaire has humanized their technology to create appliance designs that are uncluttered, controls that are intuitive, and features that are as useful as they are smart. This 30" freestanding electric range features a quick clean function and the Store-More storage drawer. Let's not forget about the Ready-Select controls that allow you to easily select options with the touch of a button. Get yours today at AJ Madison.

Specifications

Dimensions & Weights

Product Width:

29 7/8"

Product Depth:

28 1/2"

Product Depth with Door Open 90°:

48 3/8"

Product Height:

47"

Cutout Width:

30" min.

Cutout Depth:

24" min.

Cutout Height:

36" standard

Oven Interior Width:

24 3/8"

Oven Interior Depth:

19 1/8"

Oven Interior Height:

21"

Approximate Shipping Weight:

140 lbs.

Features

Series:

Frigidaire

Nominal Width:

30"

Colors:

Stainless Steel (S)/White (W)

Oven Control/Timing System:

Ready-Select

Surface Type:

Black Ceramic Glass

Window:

Extra-Large

Exterior Door Finish:

Stainless Steel (S)

Handle Design:

Black (S)

Exterior Finish (Side Panels):

Black (S)

Convection System:

No

Main Oven Cleaning System:

Self Clean

Drawer Functionality:

Storage

Oven Controls

Bake/Broil:

Yes/Low and High

Delay Bake:

Yes

Rapid/Quick Clean Option:

Quick

Delay Clean:

Yes

Kitchen Timer/Timed Cook Option:

Yes/Yes

Auto Oven Shutoff:

12 Hours

Cooktop Features

Right Front Element:

9" - 2,500 Watts

Right Rear Element:

6" - 1,200 Watts

Left Front Element:

9" - 2,500 Watts

Left Rear Element:

6" - 1,200 Watts

Bridge Element:

N/A

Center Element:

N/A

Coil Cooktop/Drip Bowls:

N/A

Oven Features

Capacity:

5.3 cu. ft.

Oven Light:

1

Hidden Bake Element:

No

Rack Configuration:

2 Standard

Baking System:

Even Baking Technology

Broiling System:

Vari-Broil Hi/Lo

Bake/Broil Elements:

2,600/3,000 Watts

Certifications

A.D.A. Compliant:

No

Specifications

Power Supply Connection Location:

Middle Bottom Rear

Voltage Rating:

240V / 208V / 60 Hz

Connected Load (kW Rating) @ 240/208 volts:

12.5/9.5

Minimum Circuit Required:

40 Amps

Features

Large Capacity Oven

Larger capacity means more space to cook more dishes at once. Holiday meals and large family gatherings are no match for this huge oven.

Store-More™ Storage Drawer

The Store-More™ Storage Drawer provides all the extra space you need to store bulky cookware and other handy cooking items.

One-Touch Self Clean

Tired of cleaning? Let your oven clean itself with just the touch of a button. With self-clean options available in 2, 3 & 4 hour cycles, it’s never been easier.

Delay Clean

Delay Clean

Want the oven to clean itself while you’re out? Just set the delay clean function accordingly and, voila – return to cleanliness!

Extra-Large Window

Extra-Large Window

Easily monitor meals as they cook without opening the oven door. It’s more efficient, more precise and reduces cooking times.

Color-Coordinated Oven Door with Large Window

Color-Coordinated Oven Door with Large Window

Monitor meals as they cook without opening the oven door. It’s more efficient, more precise and reduces cooking times.

Attractive Stainless Steel Exterior

Attractive Stainless Steel Exterior

Stainless steel exterior adds a high-end aesthetic to any kitchen. Now the standard in kitchens around the world, this finish pairs perfectly with other Frigidaire stainless steel appliances.

Ready-Select® Controls

Frigidaire’s simple control panel makes adjusting temperatures and other settings a breeze. Ready-Select® controls are simple and easy to use, while always in reach.

Timed Cook Option

Timed Cook Option

Begin cooking at a specific predetermined time thanks to this handy Timed Cook Option. Perfect for busy holiday preparation and great for everyday use too.

Electronic Kitchen Timer

Electronic Kitchen Timer

Digital timer gives you precious peace of mind so you can step away from the stove for a moment to enjoy your family and friends. Set it and forget it so you can join in on the fun.

Auto Oven Shut-Off

Auto Oven Shut-Off

Even if you forget, Frigidaire has you covered – the oven automatically shuts off as an extra safety precaution.

Built with American Pride

Built with American Pride

This range was designed, engineered and assembled in the USA. It’s just one of many high-performing and highly innovative appliances from Frigidaire’s American manufacturing facilities.
