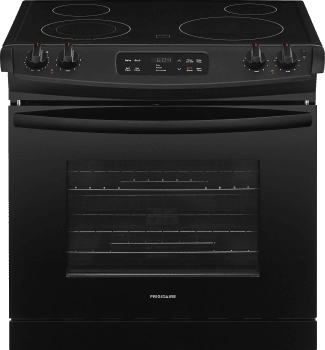

Frigidaire FFED3026TB - Front View
Frigidaire FFED3026TB - Front View
Frigidaire FFED3026TB - Side View
Frigidaire FFED3026TB - Side View
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Frigidaire FFED3026TB
Authorized
Dealer

Frigidaire
FFED3026TB
30 Inch Drop-In Electric Range with SpaceWise® Expandable Elements, Quick Boil, Vari-Broil™ Hi/Lo, Even Baking Technology, One-Touch Self Clean, Oven Rack Handles, Auto Shut-Off and 4.6 cu. ft. Oven Capacity: Black

Top Quality Store on Google
quick specs
Sabbath Mode: No
Cooktop: Smoothtop
Drawer: None
Width: 30 Inch
Depth: 28 5/16 Inch
Height: 26 1/2 Inch
Number of Burners: 4
Primary Oven Capacity: 4.6 Cu. Ft.
Hot Surface Indicator Light: Yes
Induction: No
Convection: No
Self-Cleaning: Yes
Temperature Probe: No
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: Frigidaire
Model: FFED3026TB
Warranty Terms: 1 year
?
Appearance
Fuel Type: Electric
Style: Drop-In
Color: Black
Stainless Steel Handle: No
Cooktop: Smoothtop
Cooktop Control Type: Knobs
Oven Control Type: Touchpad
Viewing Window: Yes
Double Oven: No
Drawer: None
Clock: Yes
Dimensions
Width: 30 Inch
Depth: 28 5/16 Inch
Height: 26 1/2 Inch
Interior Width: 24 1/8 Inch
Interior Depth: 18 3/4 Inch
Interior Height: 17 1/2 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Capacity
Number of Burners: 4
Primary Oven Capacity: 4.6 Cu. Ft.
Burner
Burner 1 Output: 2700
Burner 2 Output: 3000
Burner 3 Output: 1500
Burner 4 Output: 1200
Gas Cooktop Features
Grill: No
Griddle: No
French Top: No
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: No
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Convection: No
Proof Mode: No
Self-Cleaning: Yes
Racks: 2
Temperature Probe: No
Broiler Pan Included: No
Interior Oven Light: Yes
Removable Door: Yes
Technical Details
ADA Compliant: Yes
Oven Wattage: 2,750
Amps: 40
Voltage: 240/208 Volts
GTIN
UPC: 012505804434
EAN: 0012505804434
Are you a Trade Pro? Join Now

Description

30 Inch Drop-In Electric Range with SpaceWise® Expandable Elements
This Frigidaire electric range has flexible SpaceWise® Expandable Elements will heat to the specific size of the cookware, big or small. The powerful 3,000W element is capable of quick boiling pots of water so meals can be ready faster. The large capacity oven can fit multiple dishes at once, and the extra-large viewing window with interior halogen lighting makes it easy to keep an eye on everything. The oven racks have handles spacious enough for an oven mitt to safely remove all the dishes once they're done. As a safety measure the oven will automatically shut off after 12 hours. This appliance is A.D.A. Compliant.

Specifications

Cooktop Features
SpaceWise® Expandable Elements:
Yes
Hot Surface Indicator Light:
Yes
Oven Features
Oven Light:
1 Halogen
Rack Configuration:
2 Handle Racks
Baking System:
Even Baking Technology
Broiling System:
Vari-Broil™ Hi/Lo
Bake Element:
2,750 Watts
Broil Element:
3,400 Watts
Capacity:
4.6 cu. ft.
Oven Width:
24 1/8"
Oven Depth:
18 3/4"
Oven Height:
17 1/2"
Certifications
A.D.A. Compliant:
Yes
Product Dimensions & Weight
Width:
30"
Depth:
28 5/16"
Height:
26 1/2"
Weight:
185 lbs
Cabinet Cutout Dimensions
Width Min:
29 15/16"
Width Max:
30 1/16"
Depth Min:
21 3/4"
Depth Max:
22 1/8"
Height:
29"
Electrical Specifications
Power Supply Connection Location:
Left Bottom Rear
Volts:
240V/208V
Amps:
40A
Warranty
Parts & Labor:
1 Year Limited

Features

SpaceWise® Expandable Elements
  • Flexible elements expand tomeet your cooking needs - big or small.
Quick Boil
  • Get meals on the table faster with our 3,000W element - water boils faster than the traditional setting.
Vari-Broil™ Hi/Lo
  • Offers two-position broiling and variable temperature control.
Even Baking Technology
  • All parts of the dish are warmed evenly for consistent cooking.
One-Touch Self Clean
  • Your oven cleans itself - so you don't have to, self clean options available in 2, 3 and 4-hour cycles.
Oven Rack Handles
  • Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.
Auto Shut-Off
  • As an extra safety measure, the oven will automatically shut off after 12 hours
Certifications
  • ADA Compliant
Capacity
  • 4.6 cu. ft. Oven Capacity
